2008-2012 Microchip Technology Inc. DS39919C-page 1
PIC24FXXKA1XX/FVXXKA3XX
1.0 DEVICE OVERVIEW
This document defines the programming specifications
for the PIC24FXXKA1XX/FVXXKA3XX family of 16-bit
microcontroller devices. This is required only for
developing programming support for the
PIC24FXXKA1XX/FVXXKA3XX family. Users of any
one of these devices should use the development tools
that are already supporting the device programming.
The programming specifications are specific to the
following devices:
2.0 PROGRAMMING OVERVIEW
OF THE
PIC24FXXKA1XX/FVXXKA3XX
FAMILY
This section describes the two methods
of programming the PIC24FXXKA1XX/FVXXKA3XX
family of devices:
In-Circuit Serial Programming™ (ICSP™)
Enhanced In-Circuit Serial Programming
(Enhanced ICSP)
The ICSP programming method is the most direct
method for programming the device. However, it is also
the slower of the two methods. It provides a native,
low-level programming capability to erase, program and
verify the device. Section 3.0 “Device Programming –
ICSP” describes the ICSP method.
The Enhanced ICSP method is a faster method, which
takes advantage of the Programming Executive (PE), as
illustrated in Figure 2-1. The Programming Executive
provides the necessary functionality to erase, program
and verify the device through a command set. The
command set allows the programmer to program the
PIC24FXXKA1XX/FVXXKA3XX devices without having
to deal with the low-level programming protocols of the
device. Section 4.0 “Device Programming –
Enhanced ICSP” describes the ICSP method using the
Programming Executive.

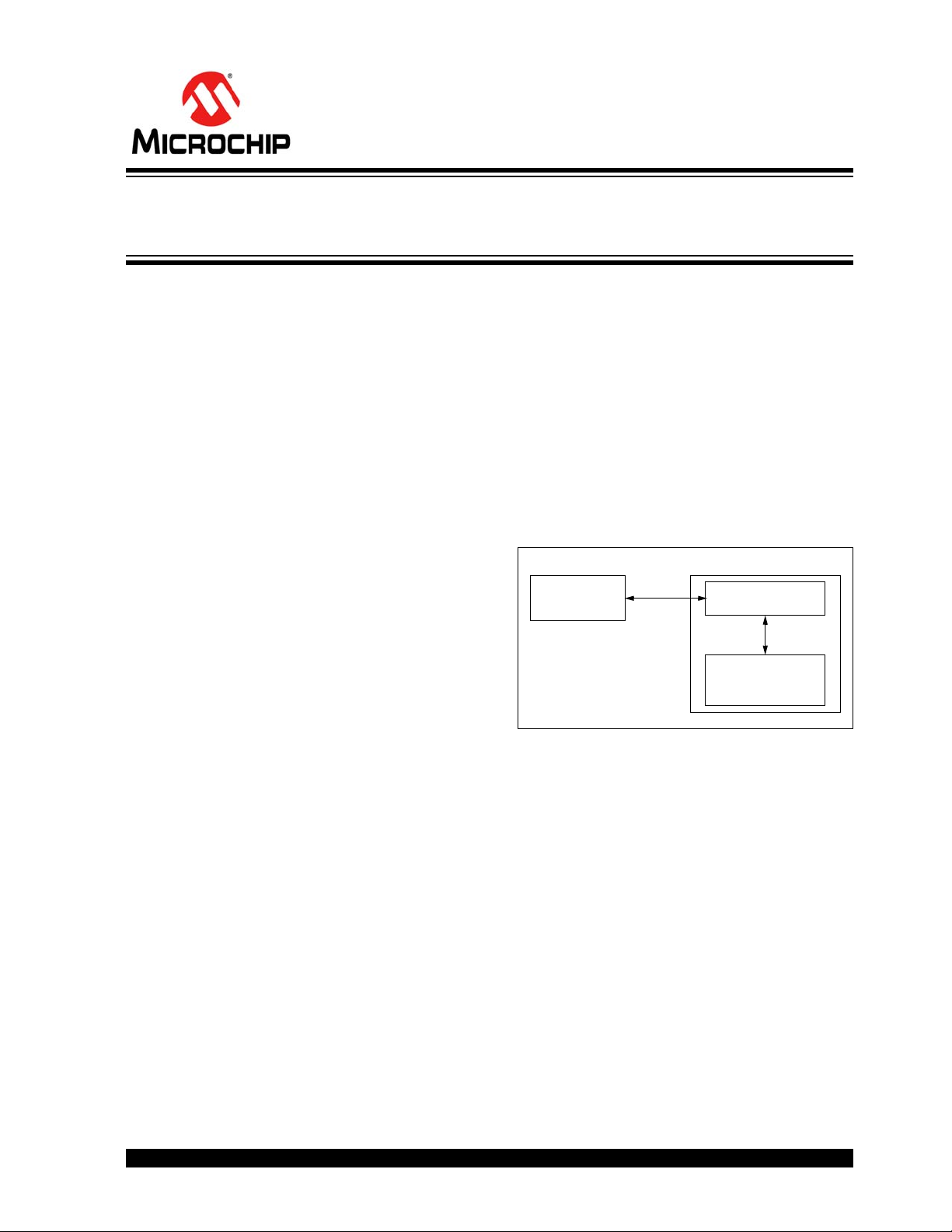

FIGURE 2-1: PROGRAMMING SYSTEM
OVERVIEW FOR ENHANCED
ICSP™ METHOD
2.1 Power Requirements
Devices in the PIC24FXXKA1XX and
PIC24FXXKA3XX families are 3.3V supply designs.
The core, the peripherals and the I/O pins operate at
3.3V. The device can operate from 1.8V to 3.6V.
Devices in the PIC24FVXXKA3XX families are 5.0V
supply designs. The core, the peripherals and the I/O
pins operate at 3.3V. The device can operate from 2.0V
to 5.5V; an internal regulator operates the core logic at
3.25V.
Table 2-1 provides the pins that are required for pro-
gramming, which are indicated in Figure 2-3. Refer to
the appropriate device data sheet for complete pin
descriptions. Note that all power supply and ground
pins must be connected appropriately for
programming.
PIC24F08KA101 PIC24FV32KA301
(1)
PIC24F16KA101 PIC24FV16KA302
(1)
PIC24F08KA102 PIC24FV32KA302
(1)
PIC24F16KA102 PIC24FV16KA304
(1)
PIC24FV16KA301
(1)
PIC24FV32KA304
(1)
Note 1: This includes corresponding
PIC24FXXKA30X devices.
Programmer
Programming
Executive
On-Chip Memory
PIC24FXXKAXXX
PIC24FXXKA1XX/FVXXKA3XX Family
Flash Programming Specifications
