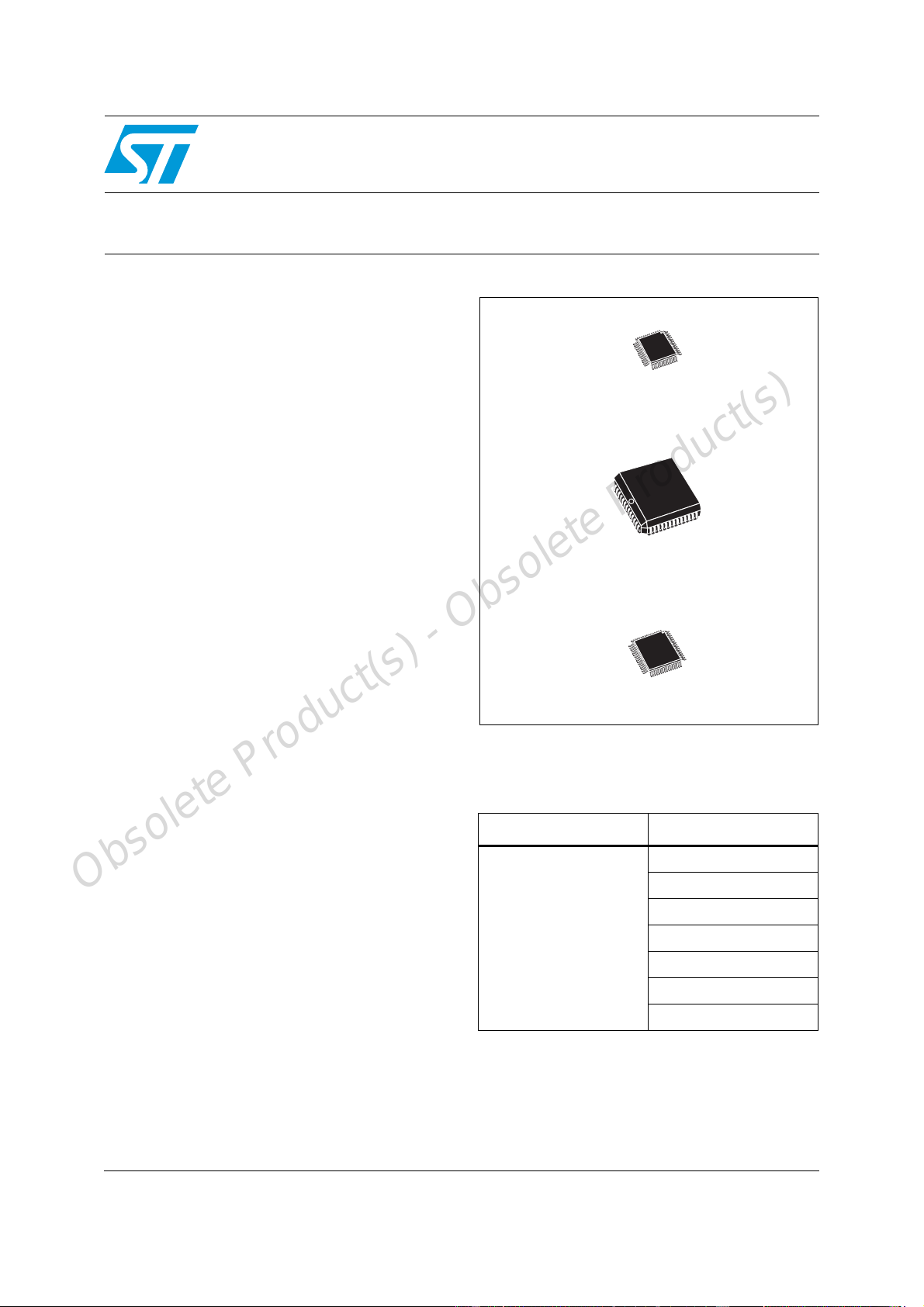

May 2009 Doc ID 7833 Rev 7 1/128
1
PSD8XXFX
Flash in-system programmable (ISP)
peripherals for 8-bit MCUs, 5 V
Features
Flash in-system programmable (ISP)
peripheral for 8-bit MCUs
Dual bank Flash memories
Up to 2 Mbit of primary Flash memory (8
uniform sectors, 32K x8)
Up to 256 Kbit secondary Flash memory (4
uniform sectors)
Concurrent operation: read from one
memory while erasing and writing the other
Up to 256 Kbit SRAM
27 reconfigurable I/Oports
Enhanced JTAG serial port
PLD with macrocells
Over 3000 gates of PLD: CPLD and DPLD
CPLD with 16 output macrocells (OMCs)
and 24 input macrocells (IMCs)
DPLD - user defined internal chip select
decoding
27 individually configurable I/O port pins
They can be used for the following functions:
MCU I/Os
PLD I/Os
Latched MCU address output
Special function I/Os.
16 of the I/O ports may be configured as
open-drain outputs.
In-system programming (ISP) with JTAG
Built-in JTAG compliant serial port allows
full-chip in-system programmability
Efficient manufacturing allow easy product
testing and programming
Use low cost FlashLINK cable with PC
Page register
Internal page register that can be used to
expand the microcontroller address space
by a factor of 256
Programmable power management
Packages are ECOPACK
®
Table 1. Device summary
Reference Part number
PSD8XXFX
PSD813F2
PSD813F4
PSD813F5
PSD833F2
PSD834F2
PSD853F2
PSD854F2
PQFP52 (M)
PLCC52 (J)
TQFP64 (U)
www.st.com
Obsolete Product(s) - Obsolete Product(s)
