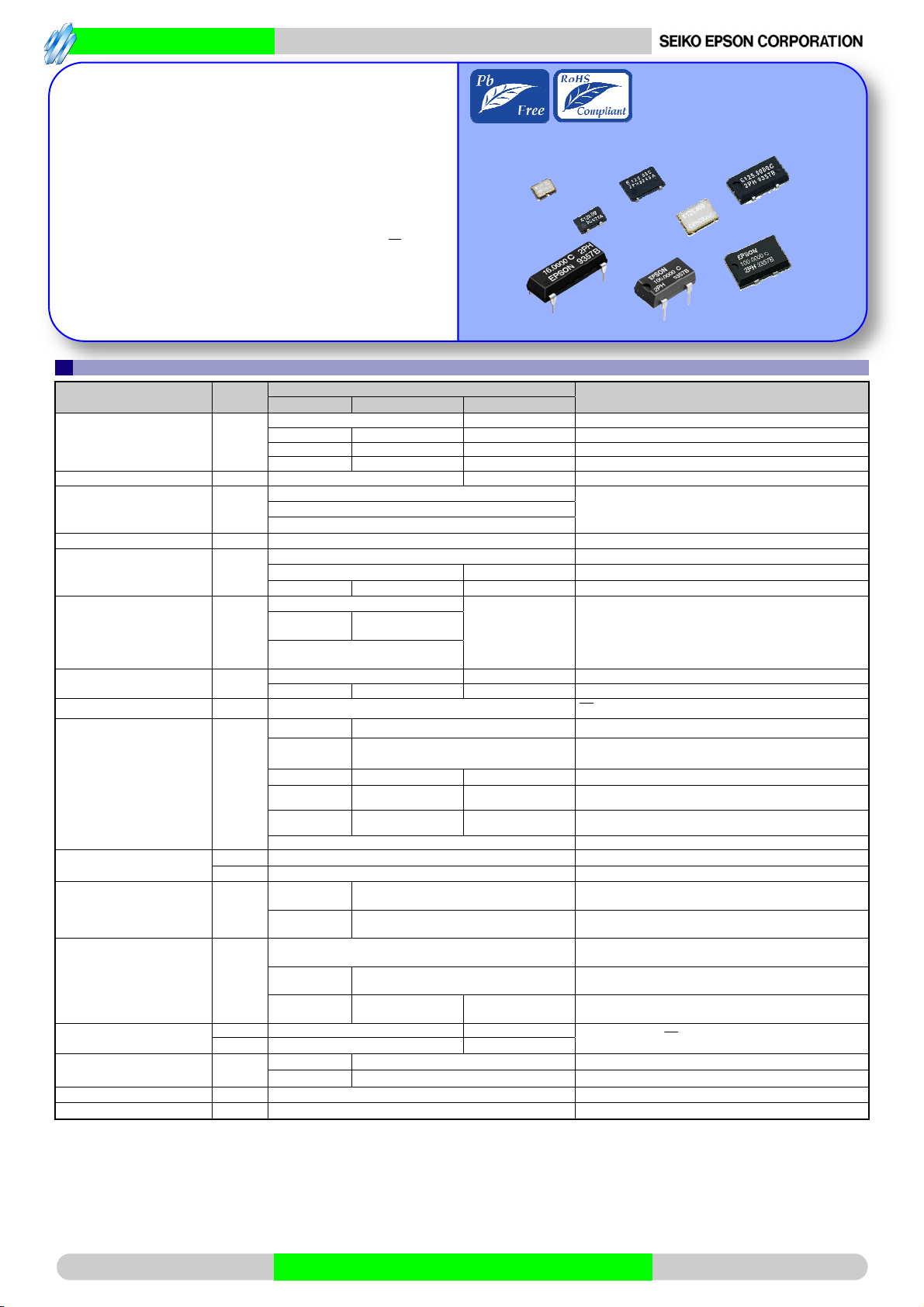

Crystal oscillator
S
p
ecifications
(
characteristics
)
Item Symbol
Specifications *2
Conditions / Remarks
PT / ST PH / SH PC / SC
Output frequency range f0
1 MHz to 125 MHz
-
VCC = 4.5 V to 5.5 V (except SG-8002LB)
-
1 MHz to 80 MHz
-
VCC = 4.5 V to 5.5 V (SG-8002LB only)
-
-
1 MHz to 125 MHz VCC = 3.0 V to 3.6 V
-
-
1 MHz to 66.7 MHz VCC = 2.7 V to 3.6 V
Supply voltage VCC
4.5 V to 5.5 V 2.7 V to 3.6 V
Storage temperature T_stg
-55 C to +125 °C
(SG-8002CA / JF / JA / DC / DB)
Storage as single product.
-55 C to +100 °C (SG-8002JC)
-40 C to +125 °C (SG-8002CE / LB)
Operating temperature*1 T_use
-20 C to +70 °C / -40 C to +85 °C
Frequency tolerance f_tol
B: 50
10
-6
, C:
100
10
-6
-20 C to +70 C
M: 100 10
-6
M:
100
10
-6
-40 C to +85 C (except SG-8002JC) *3
-
L:
50 × 10
-6
L:
50 × 10
-6
-40 C to +85 C (SG-8002LB only) *3
Current consumption ICC
40 mA Max.
(SG-8002CE)
28 mA Max. No load condition, Max. frequency
-
30 mA Max.
(SG-8002LB)
45 mA Max.
(SG-8002CA / JF /JC / JA / DC / DB)
Output disable current I_dis
30 mA Max. 16 mA Max. OE=GND (PT.PH,PC) (except SG-8002LB)
-
25 mA Max. 16 mA Max. OE=GND (PH,PC) (SG-8002LB only)
Stand-by current I_std
50 µA Max.
ST =GND (ST,SH,SC)
Symmetry *1 SYM
40 % to 60 %
-
TTL load: 1.4 V, Max. load condition (except SG-8002LB)
-
40 % to 60 %
CMOS load:50 % VCC level, Max. load condition
(except SG-8002LB)
-
40 % to 60 %
-
50 % VCC, L_CMOS=15 pF, 80 MHz (SG-8002LB)
- -
40 % to 60 %
50 % VCC, L_CMOS=15 pF, VCC=3.0 V to 3.6 V,
125 MHz
(SG-8002LB)
-
-
40 % to 60 %
50 % VCC, L_CMOS=15 pF, VCC=2.7 V to 3.6 V,
66.7 MHz
(SG-8002LB)
45 % to 55 %
*1
Output voltage
V
OH
V
CC -0.4 V Min.
I
OH=-16 mA (PT,ST,PH,SH ) , -8 mA (PC,SC)
VOL
0.4 V Max.
I
OL=16 mA (PT,ST,PH,SH) , 8 mA (PC,SC)
Output load condition
(TTL) *1
L_TTL
5 TTL Max.
-
Max. frequency and Max. Supply voltage
(SG-8002CE / CA / JA / DC / DB)
5 TTL Max.
-
f
0
90 MHz and Max. Supply voltage
(SG-8002JF / JC )
Output load condition
(CMOS) *1
L_CMOS
15 pF Max.
Max. frequency and Max. Supply voltage
(SG-8002CE / JF / JC)
-
15 pF Max.
Max. frequency and Max. Supply voltage
(SG-8002LB)
15 pF Max. 25 pF Max 15 pF Max.
Max. frequency and Max. Supply voltage
(SG-8002CA / JA / DC / DB)
Input voltage
V
IH
2.0 V Min.
70 % VCC Min.
OE terminal or
ST terminal
VIL
0.8 V Max.
20 % VCC Max.
Rise / Fall time *1 tr/ tf
4 ns Max.
-
TTL load: 0.4 V to 2.4 V level (except SG-8002LB)
-
3 ns Max.
CMOS load: 20 % V
CC to 80 % VCC level
Start-up time t_str
10 ms Max.
Time at minimum supply voltage to be 0 s
Frequency aging f_aging
±5 × 10
-6
/ year Max.
+25 C, V
CC=5.0 V/ 3.3 V (PC,SC) First year
*1 Please refer to “Outline specifications” page for information regarding; operating temperature, available frequencies, symmetry, output load condi-
tions and rise/fall time.
*2 Please refer to “Jitter specifications and characteristics chart” page for PLL-PLL connection & Jitter specification.
*3 Please refer to “Outline specifications” for availability of tolerance “M” and ”L”. A “Frequency checking” program on the Seiko Epson website
is also available.
Product Number (please contact us)
CRYSTAL OSCILLATOR
PROGRAMMABLE
OUTPUT : CMOS
SG - 8002 series
Frequency range : 1 MHz to 125 MHz
Supply voltage : 3.0 V / 3.3 V / 5.0 V
Function : Output enable(OE) or Standby(
ST
)
Short mass production lead time by PLL technology.
SG-Writer available to purchase,
please contact Epson or local sales representative.
CE, LB, CA
