AN2646 - Application note Smartcard interface description
5/43
to the card. The length of an ETU is a bit time. The UART1 transmitter output and receiver
input are internally connected through the Rx_SW line. For the transmission of data from the
STM8S20x to the smartcard, the UART1 must be set up in smartcard mode.

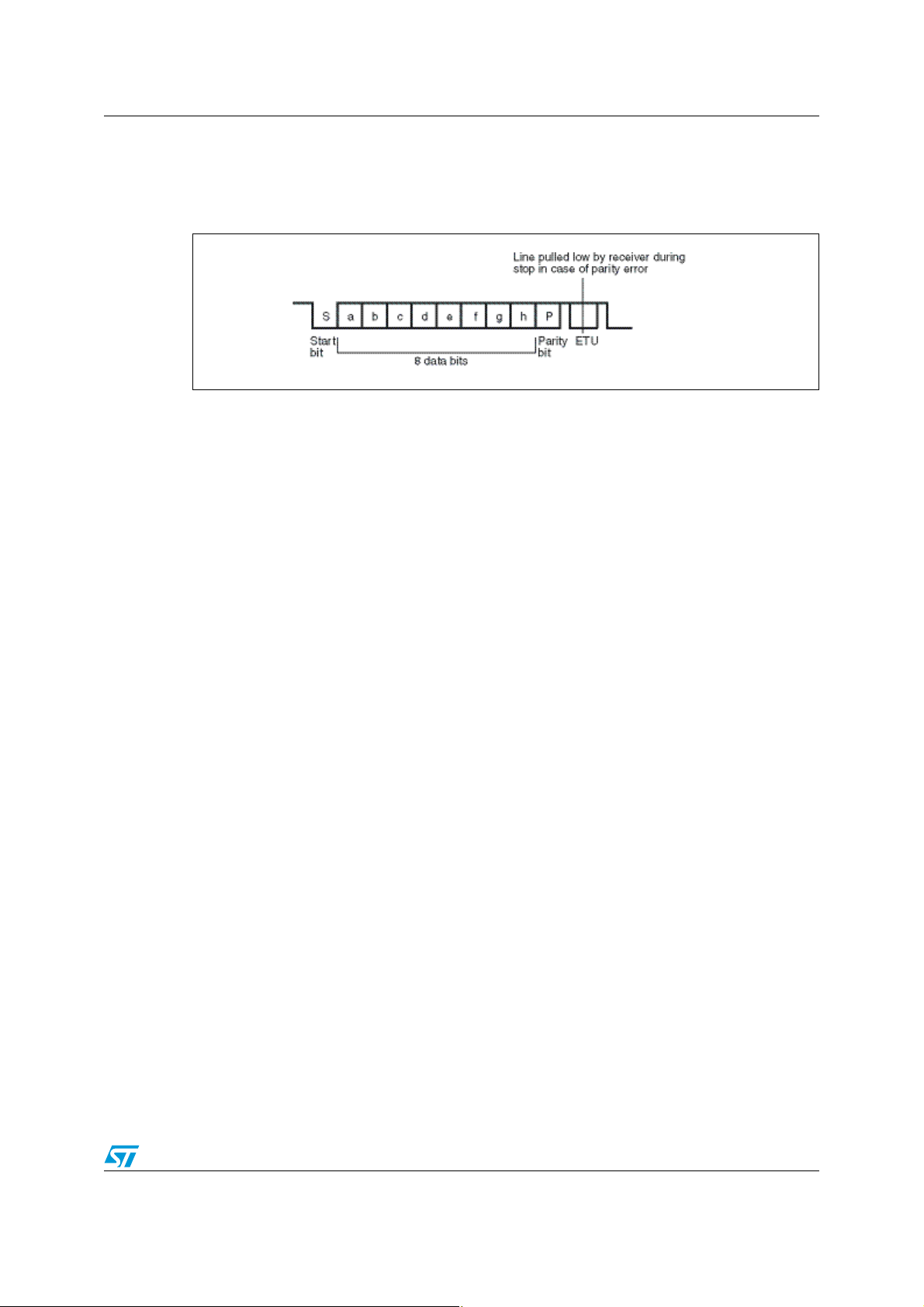

Figure 1. ISO 7816-3 asynchronous protocol
1.4 Smartcard clock generator
The smartcard clock generator provides a clock signal to the connected smartcard. The
smartcard uses this clock to derive the baud rate clock for the serial I/O between the
smartcard and another UART1. The clock is also used for the CPU in the card, if present.
Operation of the smartcard interface requires that the clock rate to the card is adjusted while
the CPU in the card is running code so that the baud rate can be changed or the
performance of the card can be increased. The protocols that govern the negotiation of
these clock rates and the altering of the clock rate are detailed in the ISO 7816-3 standard.
The clock is used as the CPU clock for the smartcard, therefore updates to the
microcontroller clock rate must be synchronized to the smartcard clock, that is the clock high
or low pulse widths must not be shorter than either the old or new programmed value.
