Data Sheet ADA4610-1/ADA4610-2/ADA4610-4
Rev. G | Page 9 of 25
OUT A
1
–IN A
2
+IN A
3
V+
4
OUT D
14
–IN D
13
+IN D
12
V–
11
+IN B
5
+IN C
10
–IN B
6
–IN C
9
OUT B
7
OUT C
8
ADA4610-4
TOP VIEW
(Not to Scale)
09646-106

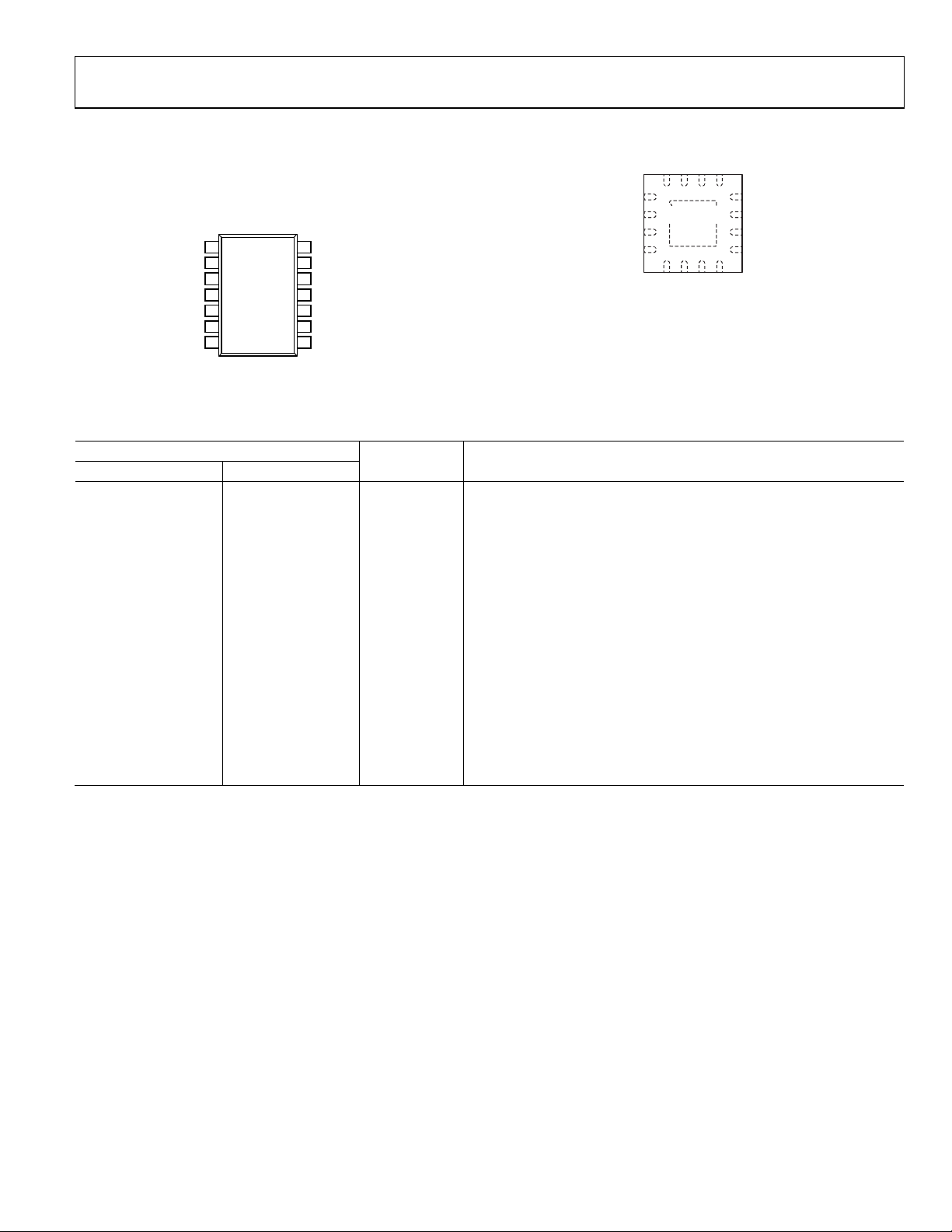

Figure 7. ADA4610-4 Pin Configuration, 14-Lead SOIC (R Suffix)
12
11
10
1
3
4
–IN D
+IN D
V–
9 +IN C
–IN A
V+
2
+IN A
+IN B
6
OUT B
5
–IN B
7
OUT C
8
–IN C
16
NIC
15
OUT A
14
OUT D
13
NIC
TOP
VIEW
ADA4610-4
NOTES
1. NIC = NOT INTERNALLY CONNECTED.
2
.THE EXPOSED PAD MUST BE CONNECTED TO V–.
09646-107
Figure 8. ADA4610-4 Pin Configuration, 16-Lead LFCSP (CP Suffix)
Table 9. ADA4610-4 Pin Function Descriptions, 14-Lead SOIC and 16-Lead LFCSP
Pin No.
14-Lead SOIC 16-Lead LFCSP Mnemonic Description
1 15 OUT A Output Channel A.
2 1 −IN A Inverting Input Channel A.
3 2 +IN A Noninverting Input Channel A.
4 3 V+ Positive Supply Voltage.
5 4 +IN B Noninverting Input Channel B.
6 5 −IN B Inverting Input Channel B.
7 6 OUT B Output Channel B.
8 7 OUT C Output Channel C.
9 8 −IN C Inverting Input Channel C.
10 9 +IN C Noninverting Input Channel C.
11 10 V− Negative Supply Voltage.
12 11 +IN D Noninverting Input Channel D.
13 12 −IN D Inverting Input Channel D.
14 14 OUT D Output Channel D.
Not applicable 13, 16 NIC Not Internally Connected.
Not applicable EPAD Exposed Pad. The exposed pad must be connected to V−.
