DS1337 I
2
C Serial Real-Time Clock
PIN DESCRIPTION
PIN
NAME FUNCTION
8
16
1 — X1
Connections for a Standard 32.768kHz Quartz Crystal. The internal
oscillator circuitry is designed for operation with a crystal having a specified
load capacitance (C
L
) of 6pF. For more information about crystal selection
and crystal layout considerations, refer to Application Note 58: Crystal
Considerations with Dallas Real-Time Clocks. An external 32.768kHz
oscillator can also drive the DS1337. In this configuration, the X1 pin is
connected to the external oscillator signal and the X2 pin is floated.
2 — X2
3 14
INTA
Interrupt Output. When enabled, INTA is asserted low when the
time/day/date matches the values set in the alarm registers. This pin is an
open-drain output and requires an external pullup resistor.
The pull up
voltage may be up to 5.5V, regardless of the voltage on V
CC
. If not used, this pin
may be left floating.
4 15 GND Ground. DC power is provided to the device on this pin.
5 16 SDA
Serial Data Input/Output. SDA is the input/output pin for the I
2
C serial
interface. The SDA pin is open-drain output and requires an external pullup
resistor.
6 1 SCL
Serial Clock Input. SCL is used to synchronize data movement on the serial
interface.
7 2
SQW/INTB
Square-Wave/Interrupt Output. Programmable square-wave or interrupt
output signal. It is an open-drain output and requires an external pullup
resistor.
The pull up voltage may be up to 5.5V, regardless of the voltage on V
CC
.
If not used, this pin may be left floating.
8 3 V
CC
DC Power. DC power is provided to the device on this pin.
— 4–13 N.C.
No Connect. These pins are not connected internally, but must be
grounded for proper operation.

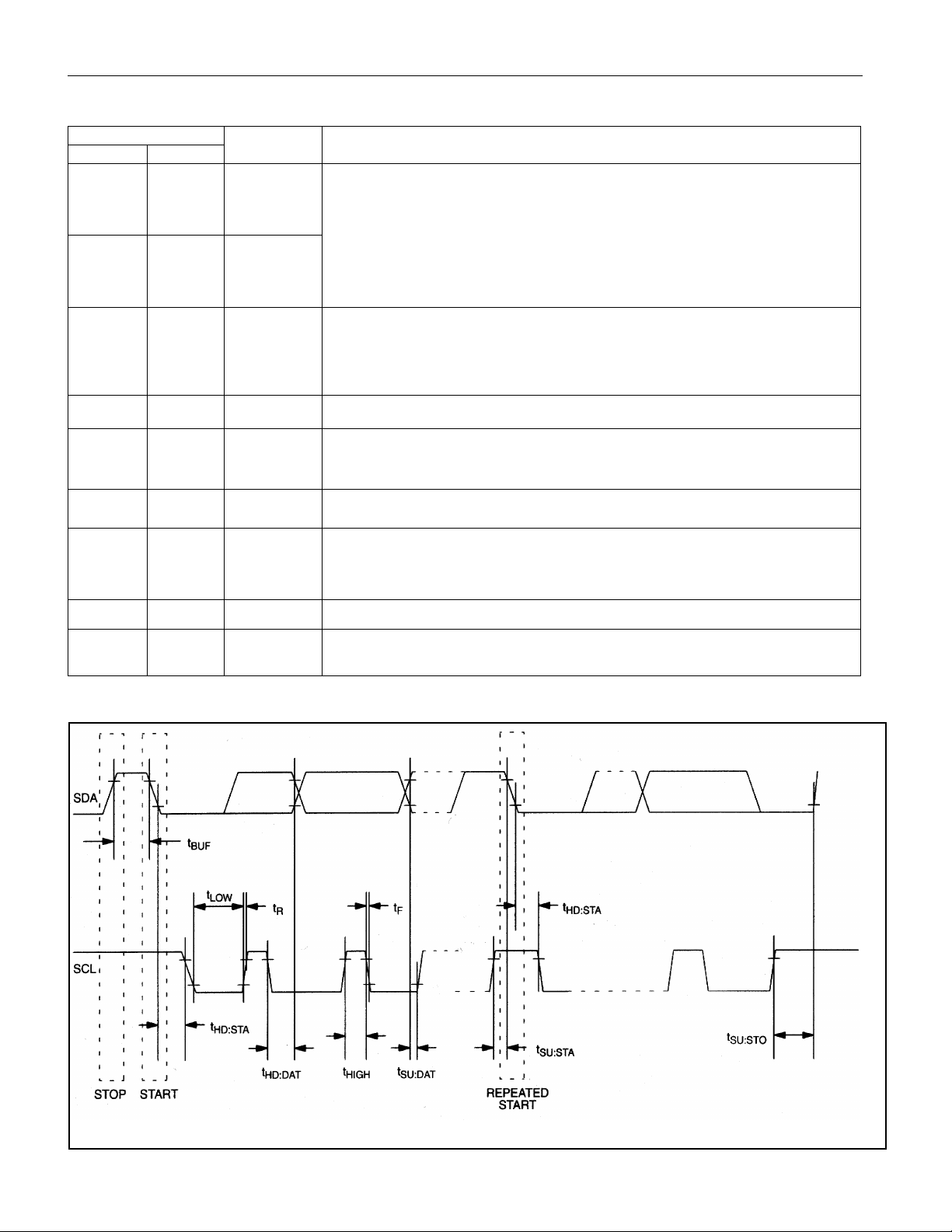

TIMING DIAGRAM
5 of 16
