_______________General Description
The MAX333A is a precision, quad, single-pole double-
throw (SPDT) analog switch. The four independent
switches operate with bipolar supplies ranging from
±4.5V to ±20V, or with a single-ended supply between
+10V and +30V. The MAX333A offers low on resistance
(less than 35Ω), guaranteed to match within 2Ω between
channels and to remain flat over the analog signal range
(∆3Ω max). It also offers break-before-make switching
(10ns typical), with turn-off times less than 145ns and
turn-on times less than 175ns. The MAX333A is ideal for
portable operation since quiescent current runs less
than 50µA with all inputs high or low.
This monolithic, quad switch is fabricated with Maxim’s
new improved silicon-gate process. Design improvements
guarantee extremely low charge injection (10pC), low
power consumption (3.75mW), and electrostatic discharge
(ESD) greater than 2000V.
Logic inputs are TTL and CMOS compatible and guaranteed
over a +0.8V to +2.4V range—regardless of supply voltage.
Logic inputs and switched analog signals can range any-
where between the supply voltages without damage.
________________________Applications
Test Equipment
Communications Systems
PBX, PABX
Heads-Up Displays
Portable Instruments
____________________________Features
♦ Upgraded Replacement for a DG211/DG212 Pair
or Two DG403s
♦ Low On Resistance < 17Ω Typical (35Ω Max)
♦ Guaranteed Matched On Resistance Between
Channels < 2Ω
♦ Guaranteed Flat On Resistance over Analog
Signal Range ∆3Ω Max
♦ Guaranteed Charge Injection < 10pC
♦ Guaranteed Off-Channel Leakage < 6nA at +85°C
♦ ESD Guaranteed > 2000V per Method 3015.7
♦ Single-Supply Operation (+10V to +30V)
Bipolar-Supply Operation (±4.5V to ±20V)
♦ TTL-/CMOS-Logic Compatibility
♦ Rail-to-Rail Analog Signal Handling Capability
______________Ordering Information
* Contact factory for dice specifications.
MAX333A
Precision, Quad, SPDT, CMOS Analog Switch
________________________________________________________________
Maxim Integrated Products
1
INPUTS
V
1
V
2
OSC
IN
V
3
V
4
FLYING CAPACITOR
LEVEL TRANSLATOR
(2-CHANNEL)
OUTPUTS
V
1
- V
2
V
3
- V
4

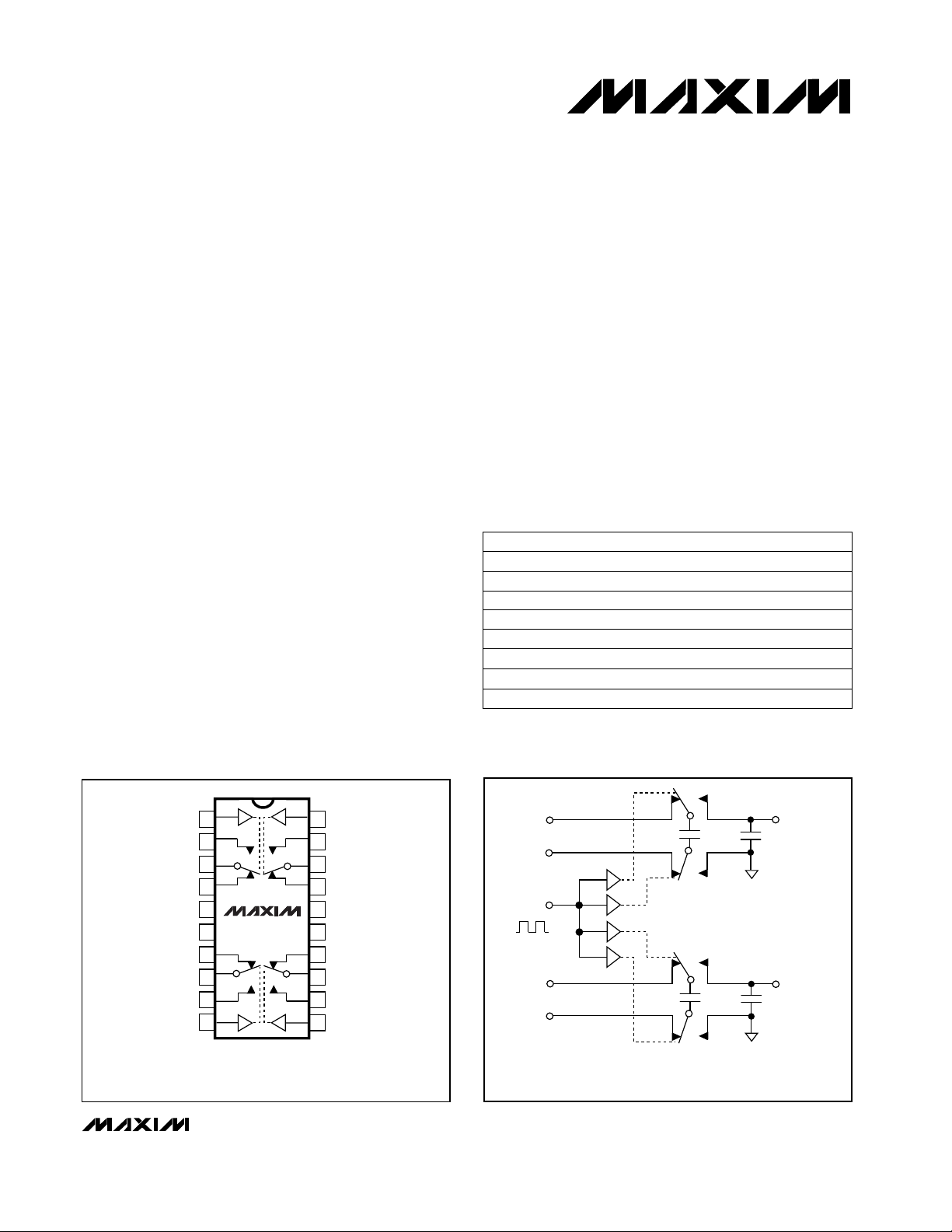

__________Typical Operating Circuit
SWITCHES ARE SHOWN WITH LOGIC "0" INPUT
N.C. = NOT INTERNALLY CONNECTED
20
19
18
17
16
15
14
13
12
11
1
2
3
4
5
6
7
8
9
10
IN4
NO4
COM4
NC4
NC1
COM1
NO1
IN1
MAX333A
V+
N.C.
NC3
COM3
COM2
NC2
GND
V-
NO3
IN3
IN2
NO2
TOP VIEW
DIP/SO/TSSOP
__________________Pin Configuration
PART TEMP. RANGE PIN-PACKAGE
MAX333ACPP 0°C to +70°C 20 Plastic DIP
MAX333ACWP 0°C to +70°C 20 Wide SO
MAX333ACUP 0°C to +70°C 20 TSSOP
MAX333AEPP -40°C to +85°C 20 Plastic DIP
MAX333AEWP -40°C to +85°C 20 Wide SO
MAX333AEUP -40°C to +85°C 20 TSSOP
19-0189; Rev 1; 6/99
MAX333AC/D 0°C to +70°C Dice*
MAX333AMJP -55°C to +125°C 20 CERDIP
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800.
For small orders, phone 1-800-835-8769.
