__________Applications Information
Operation with Supply Voltages
Other than ±15V
o
The main limitation of supply voltages other than ±15V is
a reduction in the analog signal range. The MAX333A
operates with ±5V to ±20V bipolar supplies. The
Typical Operating Characteristics
and graphs show typ-
ical on resistance for ±15V, ±10V, ±5 supplies.
Switching times increase by a factor of two or more for
±5V operation. The MAX333A can operate from +10V
to +24V unipolar supplies. It can be powered from a
single +10V to +24V supply, as well as from unbalanced
supplies such as +24V and -5V. Connect V- to 0V when
operating with a single supply.
Overvoltage Protection
Proper power-supply sequencing is recommended for
all CMOS devices. It is important not to exceed the
absolute maximum ratings because stresses beyond
the listed ratings may cause permanent damage to the
devices. Always sequence V+ on first, followed by VL,
V-, and logic inputs. If power-supply sequencing is not
possible, add two small signal diodes in series with the
supply pins (Figure 1). Adding the diodes reduces the
analog signal range to 1V below V+ and 1V below V-,
but low switch resistance and low leakage characteris-
tics are unaffected.
MAX333A
Precision, Quad, SPDT, CMOS Analog Switch
_______________________________________________________________________________________ 5
PIN FUNCTION
15 Not Internally Connected
6 Ground
5 Negative Power Supply
4, 7, 14, 17 Normally Closed Switches
16 Positive Power Supply
1, 10, 11, 20 Logic-Level Inputs
2, 9, 12, 19 Normally Open Switches
3, 8, 13, 18 Common Switch Poles
NAME
N.C.
GND
V-
NC1-NC4
V+
IN1-IN4
NO1-NO4
COM1-COM4
_____________________Pin Description
t
R
< 20ns
t
F
< 20ns
50%
0V
+10V
LOGIC
INPUT
V-
-15V
300Ω
COM_
GND
(REPEAT TEST FOR IN2, IN3, AND IN4.)
V
IN
+10V
IN_
NO_
50%
t
OPEN
50% 50%
50% 50%
3V
t
OPEN
t
ON
t
OFF
t
ON
t
OFF
0V
-10V
V
COM
+15V
V+
NC_
-10V
SWITCH OUTPUT

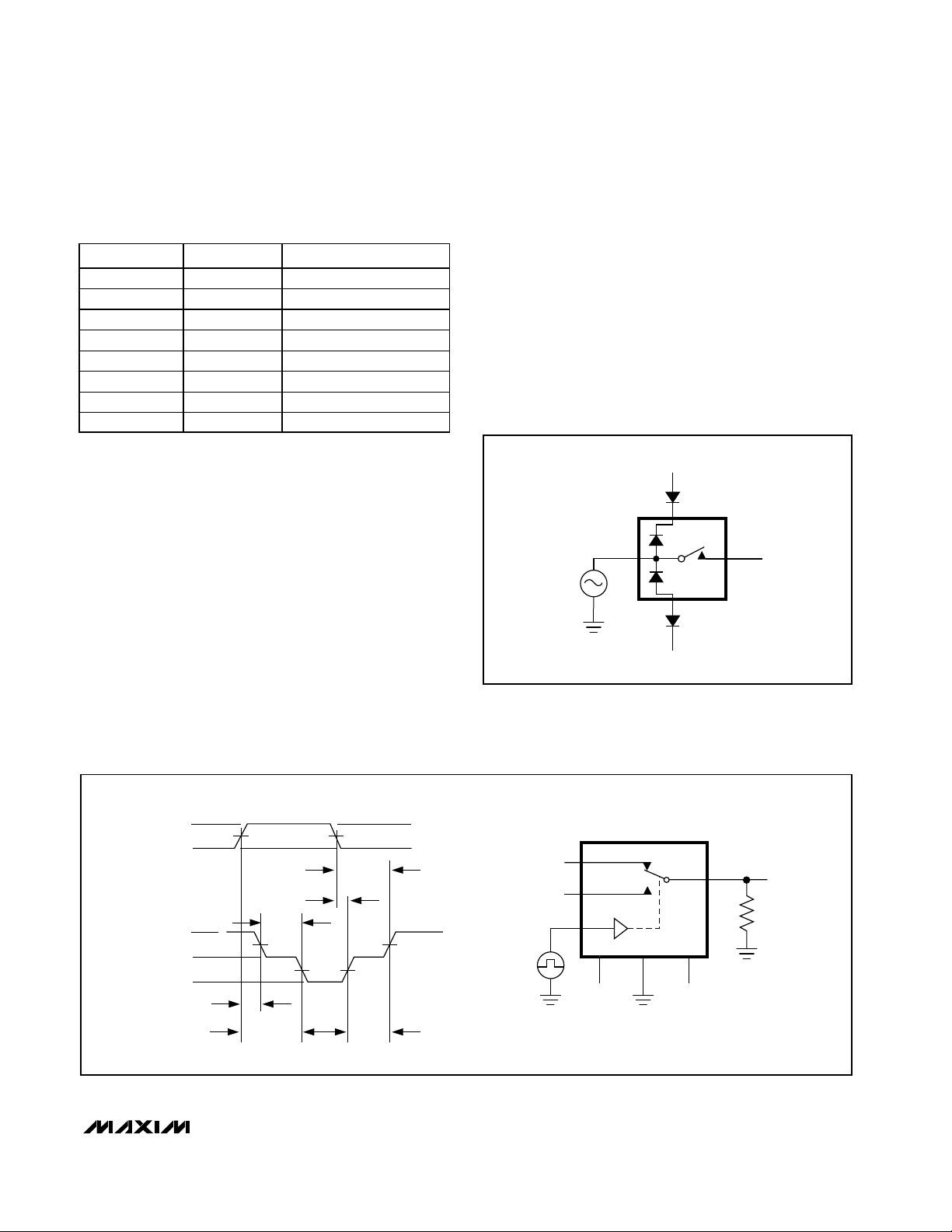

Figure 2. Switching-Time Test Circuit
V
g
NO_
( OR NC_)
V+
COM_
V-
Figure 1. Overvoltage Protection Using Blocking Diodes
______________________________________________Test Circuits/Timing Diagrams
