© 2000 Fairchild Semiconductor Corporation www.fairchildsemi.com
NC7SZ157 • Rev. 1.0.3 6
NC7SZ157 — TinyLogic
®
UHS 2-Input Non-Inverting Multiplexer
Physical Dimensions
DETAIL A
SCALE: 60X
B
1.90
2.00
±0.20
0.50 MIN
1.00
0.80
1.10
0.80
0.10 C
0.25
0.10
0.46
0.26
0.20
GAGE
PLANE
(R0.10)
30°
0°
SEATING
PLANE
C
0.10
0.00
NOTES: UNLESS OTHERWISE SPECIFIED
A) THIS PACKAGE CONFORMS TO EIAJ
SC-88, 1996.
B) ALL DIMENSIONS ARE IN MILLIMETERS.
C) DIMENSIONS DO NOT INCLUDE BURRS
OR MOLD FLASH.
D) DRAWING FILENAME: MKT-MAA06AREV6
2.10±0.30
0.10 AB
0.65
1.30
(0.25)
0.30
0.15
1
1.25
±0.10
3
1.30
0.40 MIN
SEE DETAIL A
LAND PATTERN RECOMMENDATION
6
A
4
C
0.65
L
SYMM
PIN ONE

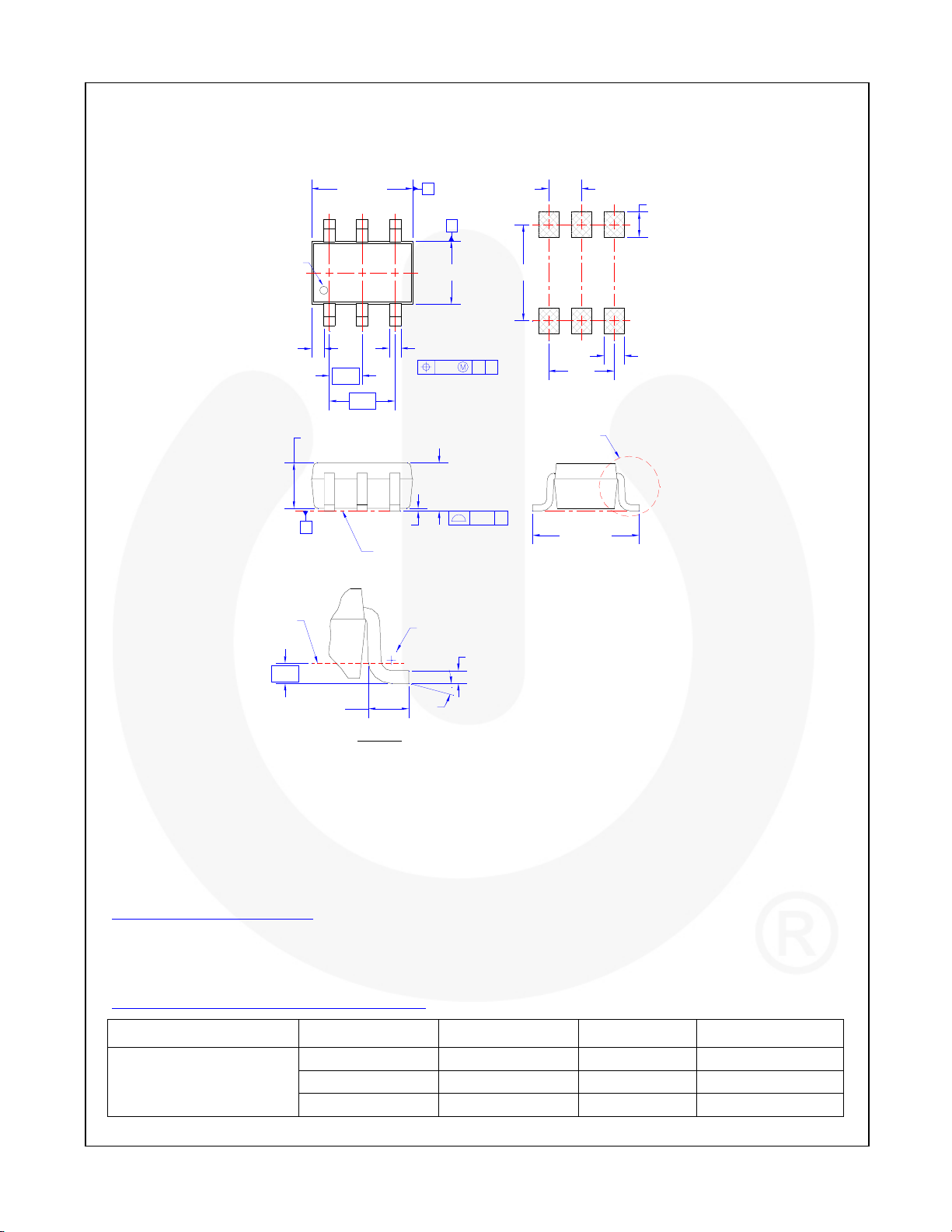

Figure 8. 6-Lead, SC70, EIAJ SC-88, 1.25mm Wide
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify
or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically
the warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/packaging/
.
Tape and Reel Specifications
Please visit Fairchild Semiconductor’s online packaging area for the most recent tape and reel specifications:
http://www.fairchildsemi.com/products/analog/pdf/sc70-6_tr.pdf
.
Package Designator Tape Section Cavity Number Cavity Status Cover Type Status
P6X
Leader (Start End) 125 (Typical) Empty Sealed
Carrier 3000 Filled Sealed
Trailer (Hub End) 75 (Typical) Empty Sealed
