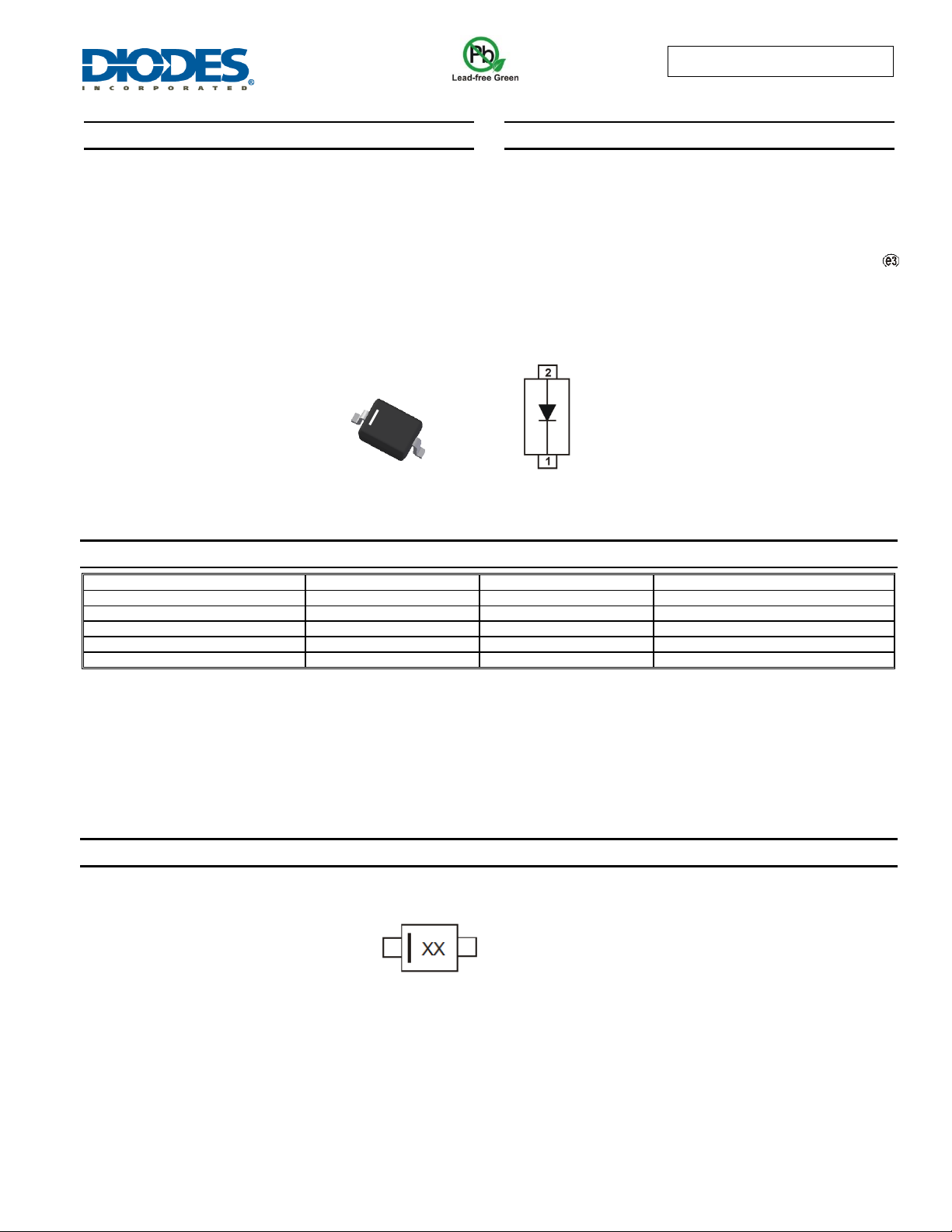

1N4148WS / BAV16WS
Document number: DS30097 Rev. 25- 2
1of 5
www.diodes.com
March 2016
© Diodes Incorporated
1N4148WS / BAV16WS
SURFACE MOUNT FAST SWITCHING DIODE
Features
Fast Switching Speed
Small Surface Mount Package
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOD323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed Over Alloy 42 Leadframe
(Lead-Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.006 grams (Approximate)
Ordering Information (Notes 4 & 5)
Part Number
Compliance
Case
Packaging
1N4148WS-7-F
Standard
SOD323
3,000/Tape & Reel
1N4148WSQ-7-F
Automotive
SOD323
3,000/Tape & Reel
1N4148WS-13-F
Standard
SOD323
10,000/Tape & Reel
1N4148WSQ-13-F
Automotive
SOD323
10,000/Tape & Reel
BAV16WS-7-F
Standard
SOD323
3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-Free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Top View
SOD323
XX = Product Type Marking Code, T4
Device Schematic
