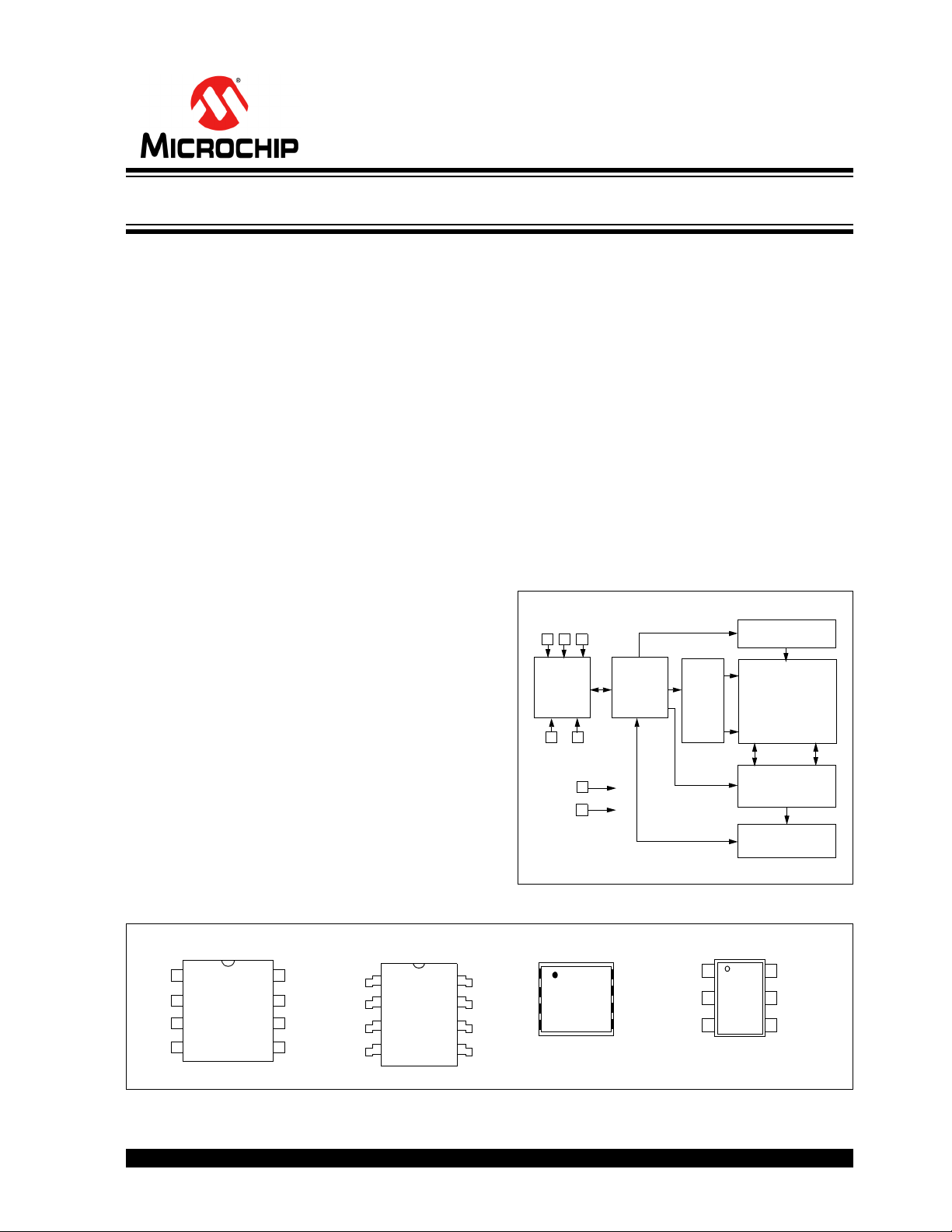

1997-2012 Microchip Technology Inc. DS21201K-page 1
24C01C
Features:
Single Supply with Operation from 4.5V to 5.5V
Low-Power CMOS Technology:
- Read current 1 mA, max.
- Standby current 5 A, max.
2-Wire Serial Interface, I
2
C™ Compatible
Cascadable up to Eight Devices
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Clock Compatibility
Page Write Time 1 ms max.
Self-Timed Erase/Write Cycle
16-Byte Page Write Buffer
ESD Protection >4000V
More than 1 Million Erase/Write Cycles
Data Retention >200 Years
Factory Programming Available
Packages include 8-lead PDIP, SOIC, TSSOP,
DFN, TDFN, MSOP and 6-lead SOT-23
Pb-Free and RoHS Compliant
Temperature Ranges:
Description:
The Microchip Technology Inc. 24C01C is a 1K bit
Serial Electrically Erasable PROM with a voltage range
of 4.5V to 5.5V. The device is organized as a single
block of 128 x 8-bit memory with a 2-wire serial
interface. Low-current design permits operation with
max. standby and active currents of only 5 A and 1
mA, respectively. The device has a page write capabil-
ity for up to 16 bytes of data and has fast write cycle
times of only 1 ms for both byte and page writes. Func-
tional address lines allow the connection of up to eight
24C01C devices on the same bus for up to 8K bits of
contiguous EEPROM memory. The device is available
in the standard 8-pin PDIP, 8-pin SOIC (3.90 mm),
8-pin 2x3 DFN and TDFN, 8-pin MSOP and TSSOP
packages. The 24C01C is also available in the 6-lead
SOT-23 package.
Block Diagram
Package Types
- Industrial (I): -40C to +85C
- Automotive (E): -40C to +125C
I/O
Control
Logic
Memory
Control
Logic
XDEC
HV Generator
EEPROM
Array
YDEC
V
CC
VSS
Sense Amp.
R/W Control
SDA
SCL
A0 A1 A2
A0
A1
A2
V
SS
VCC
Test
SCL
SDA
1
2
3
4
8
7
6
5
PDIP, MSOP
SOIC, TSSOP
A0
A1
A2
V
SS
1
2
3
4
8
7
6
5
V
CC
Tes t
SCL
SDA
DFN/TDFN
A0
A1
A2
V
SS
Tes t
SCL
SDA
V
CC
8
7
6
5
1
2
3
4
SOT-23
V
CC
SCL
SDA
V
SS
A0
A1
1
2
3
4
5
6
1K 5.0V I
2
C™ Serial EEPROM
