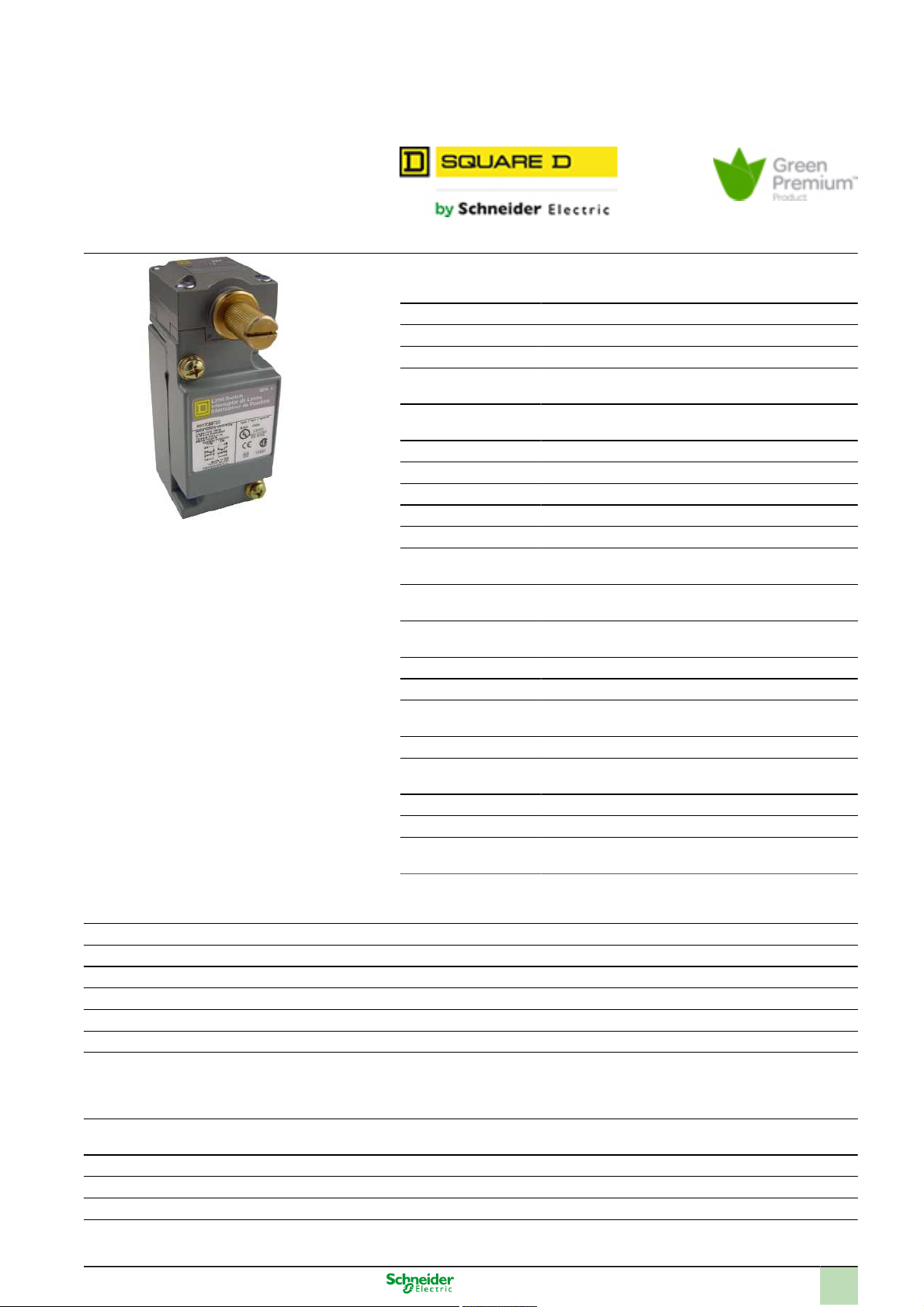

Product data sheet
Characteristics
9007C68T5
9007C limit switch - 2 NO/NC neutral - rotary
head - CW+CCW - low differential
Product availability: Stock - Normally stocked in distribution facility
Main
Commercial Status Commercialised
Range of product 9007
Series name Heavy duty
Product or component
type
Limit switch
Product specific
application
Standard box
Device short name 9007C
Body type Plug-in
Head type Rotary head
Material Metal
Fixing mode By the body
Movement of operating
head
Rotary
Type of operator Zinc spring return without operating lever (low
differential)9007C lever
Switch actuation From left and right
CW and CCW
Type of approach 2 directions lateral approach
Electrical connection (12...22 AWG) screw-clamp terminals, 1...2
Cable entry 1 entry for 1/2" - 14 NPT conforming to ANSI
B1.20.1
Number of poles 2
Contacts type and
composition
2(NC-NO)
Contacts operation Snap action
Positive opening Without
Sale per indivisible
quantity
1
Complementary
Body material Zinc
Head material Zinc
Function available Neutral position
Switch function 2 SPDT-DB
Contact form Form Z
Contacts material Silver contacts
Terminals description ISO n°1 (1-2)NC
(3-4)NO
(5-6)NC
(7-8)NO
Maximum actuation speed 130 ft/min with 30° cam angle, levers only
90 ft/min with 45° cam angle, levers only
Tripping angle 5 °
Maximum displacement angle 90 °
Repeat accuracy +/- 0.002 in linear travel of cam
