+30 V/±15 V Operation
128-Position Digital Potentiometer
AD7376
FEATURES
128 positions
10 kΩ, 50 kΩ, 100 kΩ
20 V to 30 V single-supply operation
±10 V to ±15 V dual-supply operation
3-wire SPI®-compatible serial interface
THD 0.006% typical
Programmable preset
Power shutdown: less than 1 μA
iCMOS™ process technology
APPLICATIONS
High voltage DAC
Programmable power supply
Programmable gain and offset adjustment
Programmable filters, delays
Actuator control
Audio volume control
Mechanical potentiometer replacement

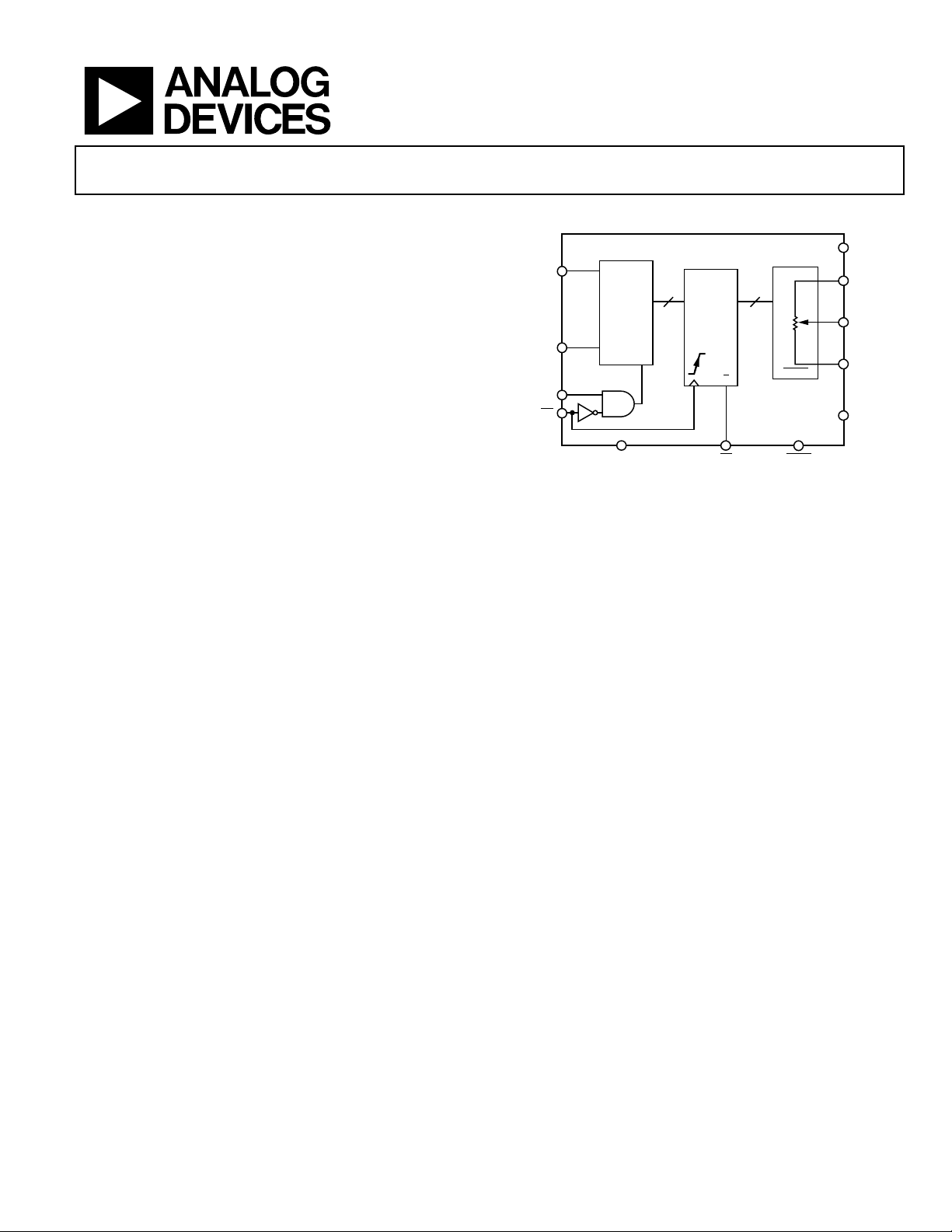

FUNCTIONAL BLOCK DIAGRAM
V
DD
A
W
B
V
SS
SDI
CLK
CS
SDO
7 7
R
7-BIT
LATCH
7-BIT
SERIAL
REGISTER
Q
D
CK
AD7376
01119-001
SHDN
SHDN
RS
GND
Figure 1.
GENERAL DESCRIPTION
The AD7376
1
is one of the few high voltage, high performance
digital potentiometers
2
on the market. This device can be used
as a programmable resistor or resistor divider. The AD7376
performs the same electronic adjustment function as mechanical
potentiometers, variable resistors, and trimmers with enhanced
resolution, solid-state reliability, and programmability. With
digital rather than manual control, the AD7376 provides layout
flexibility and allows closed-loop dynamic controllability.
The AD7376 features sleep-mode programmability in shutdown
that can be used to program the preset before device activation,
thus providing an alternative to costly EEPROM solutions.
The AD7376 is available in 14-lead TSSOP and 16-lead wide
body SOIC packages in 10 kΩ, 50 kΩ, and 100 kΩ options. All
parts are guaranteed to operate over the −40°C to +85°C
extended industrial temperature range.
1
Patent number: 54952455.
2
The terms digital potentiometer and RDAC are used interchangeably.
