Manual Switches AML Series

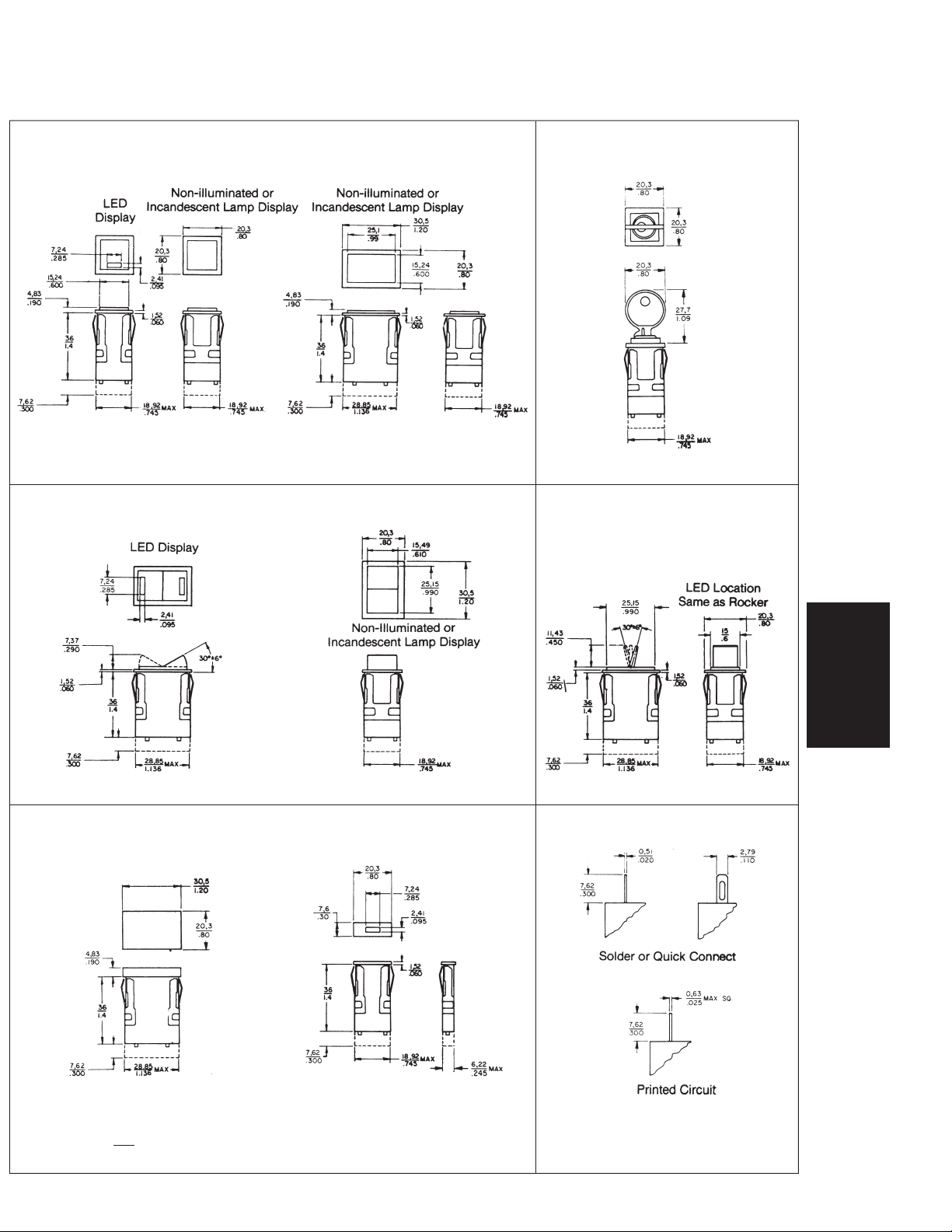

Mounting Dimensions (For Reference Only)
Honeywell1SensingandControl11-800-537-6945USA1F1-815-235-6847International11-800-737-3360Canada59
AML11/12 and 21/22 SWITCHES Note: Top of full guard bezel housing AML27 SWITCHES
AML41C/D and AML42C INDICATORS .19/5,0 from panel.
PUSHBUTTONS
KEYLOCK
For terminal locations, see page 61.
For terminal locations, see page 62.
AML14/16 and AML24/26 SWITCHES AML13/15 and 23/25 SWITCHES
ROCKERS PADDLES
For terminal locations, see page 61, 62. For terminal locations, see page 61, 62.
AML41 INDICATOR AML42 INDICATOR TERMINAL TYPES
LENS STYLE MINIATURE
For terminal locations, see page 62.
NOTE
1 Dimensions are
mm or mm/IN
IN
Solder Hole will accept two #22 AWG
Stranded Conductor (per NEMA publication
DC-2 1976)
