Manual Switches AML Series
Mounting Dimensions (For Reference Only)
64Honeywell1SensingandControl11-800-537-6945USA1F1-815-235-6847International11-800-737-3360Canada
MULTI-STATION FRONT-PANEL MOUNTING
Panel cutouts
(See page 61 for panel punch manufacturer.)
Square Switches & Indicators Rect. Switches & Indicators Annunciator
(.8) (No. of units) — .045 * (1.20) (No. of units) — .045 * (.40) (No. of units) — .045 *
(20,3) (No. of units) — 1,14 * (30,5) (No. of units) — 1,14 * (10,1) (No. of units) — 1,14 *
For each barrier, add .053/1,35 * Note: If barriers are used, do not subtract .045 in./1,14 mm from the panel cutout
formula. (.045 in./1,14mm is the allowance for the width of the bezel.)
AML61 MULTI-STATION SUBPANEL MOUNTING
Panel cutouts for AML61
Mounting Bracket
Orientation Width Length
A* in. .810
mm 20,57 (.810)(No. of units)
B in. .810
mm 20,57 (1.210)(No. of units)
C or D* in. 1.210
mm 27,94 (.810)(No. of units)
*More than two cans with mounting brackets required for strips
of more than 10 units.

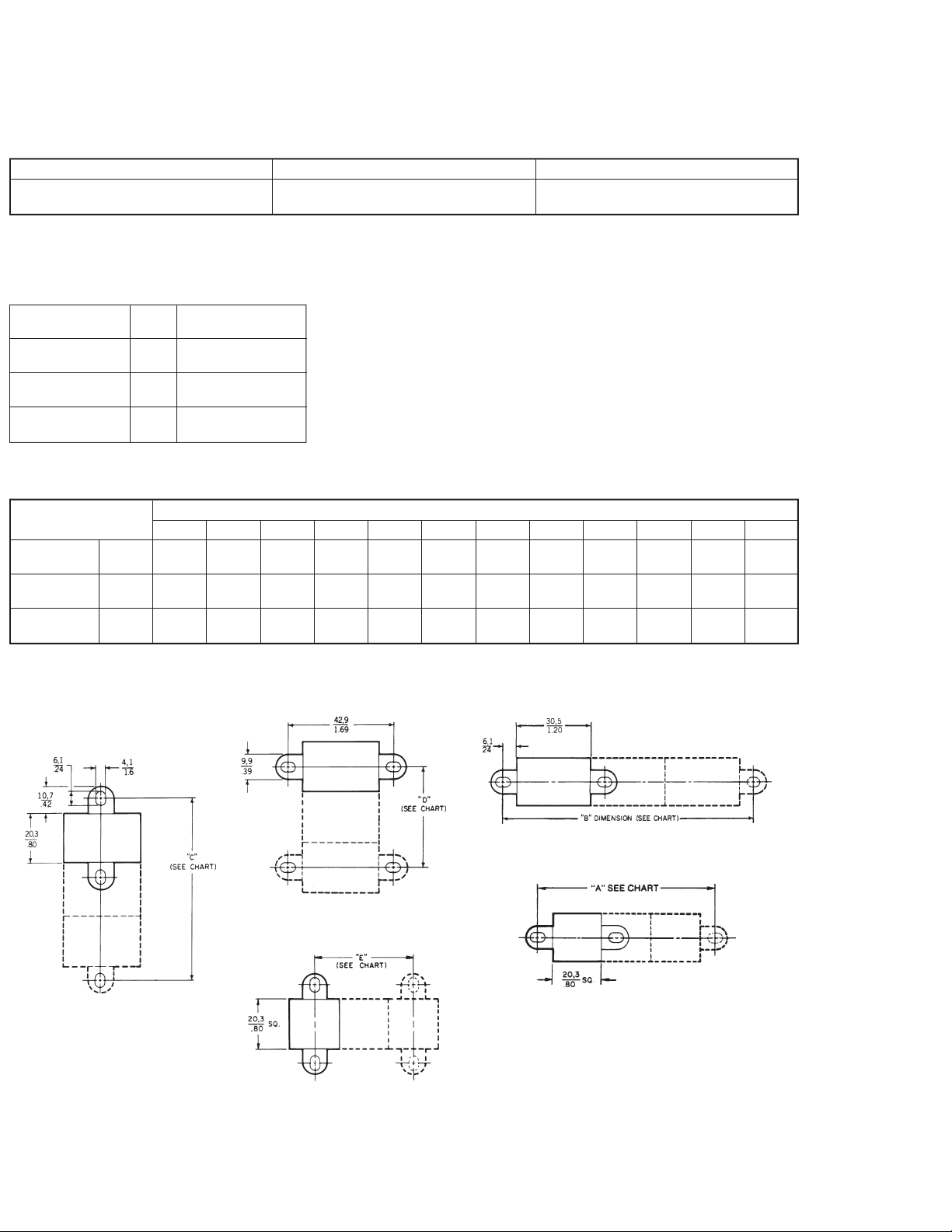

AML61 MOUNTING CENTERS
Mounting Centers/Number of Cans
Mounting Bracket
Orientation 123456789101112
‘‘
A’’ or
‘‘
C’’ in. 1.285 2.095 2.905 3.715 4.525 5.335 6.145 6.955 7.765 8.575 9.385 10.195
mm 32,64 53,21 73,79 94,36 114,94 135,51 156,08 176,66 197,23 217,81 238,38 258,95
‘‘
B’’ in. 1.685 2.895 4.105 5.315 6.525 7.735 8.945 10.155
mm 42,80 73,53 104,27 135,00 165,74 196,48 227,20 257,94
‘‘
D’’ or
‘‘
E’’ in. on C
L
.807 1.614 2.421 3.228 4.035 4.842 5.649 6.456 7.263 8.070 8.877
mm on C
L
20,50 41,00 61,49 81,99 102,49 122,99 143,48 163,98 184,48 204,98 225,48
Tolerance J ±.015
C
D
E
B
A
