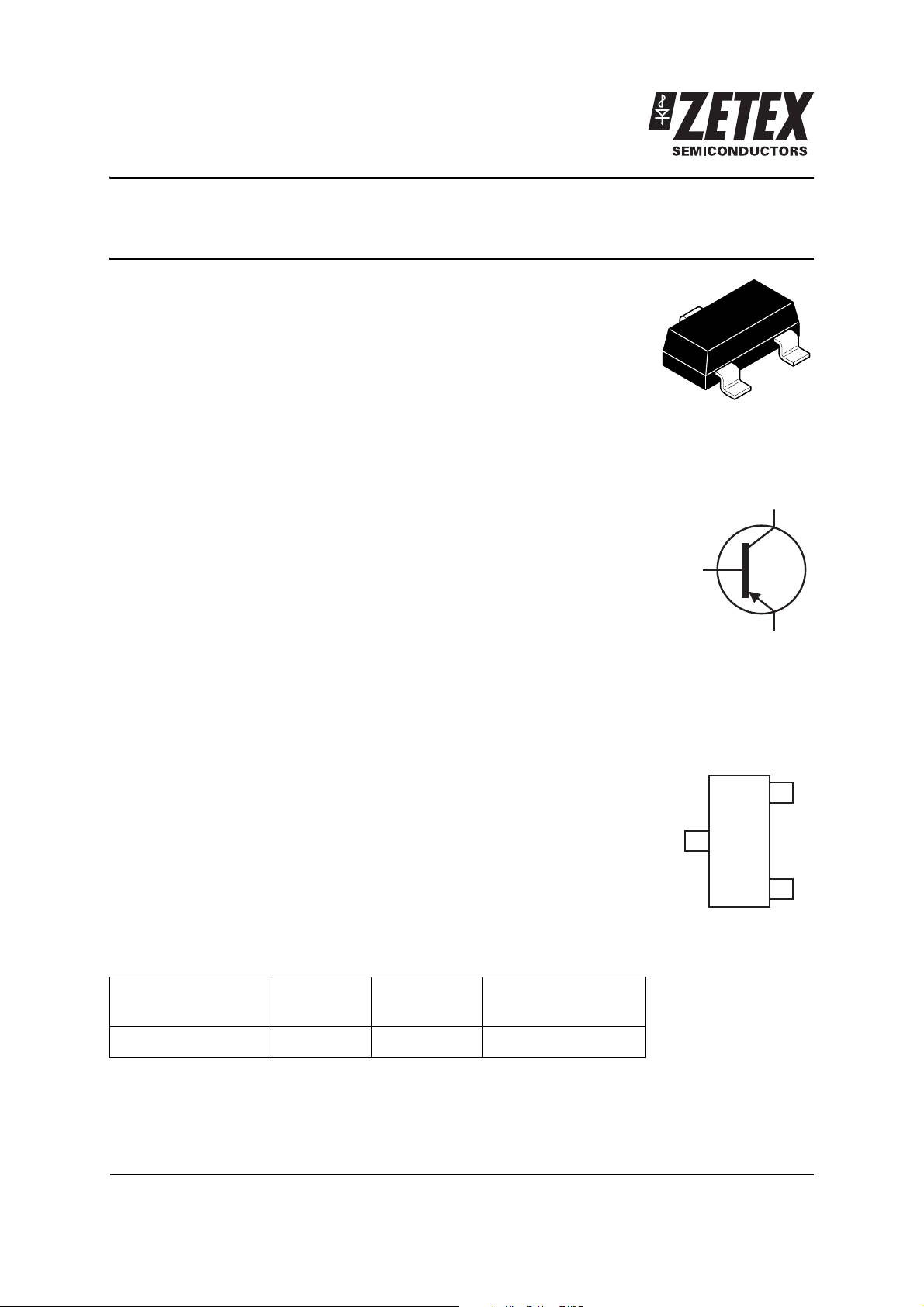

Issue 2 - May 2007 1 www.zetex.com
© Zetex Semiconductors plc 2007
ZXTP23015CFH
15V, SOT23, PNP medium power transistor
Summary
V
(BR)CES
> -15V, V
(BR)CEO
> -15V
V
(BR)ECO
> -6V
I
C(CONT)
= -6A
R
CE(SAT)
= 20m⍀ typical
V
CE(SAT)
< -36mV @ -1A
P
D
= 1.25W
Complementary part number ZXTN23015CFH
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium.
Feature
• Higher power dissipation SOT23 package
• High peak current
• Low saturation voltage
• 15V forward blocking voltage
• 6V reverse blocking voltage
Applications
• High side disconnect switches
•DC - DC converters
• MOSFET and IGBT gate driving
• Motor drive
• Relay, lamp, and solenoid drive
Ordering information
Device marking
317
Device Reel size
(inches)
Tape width Quantity per reel
ZXTP23015CFHTA 7 8mm 3000
C
E
B
C
E
Pinout - top view
B
