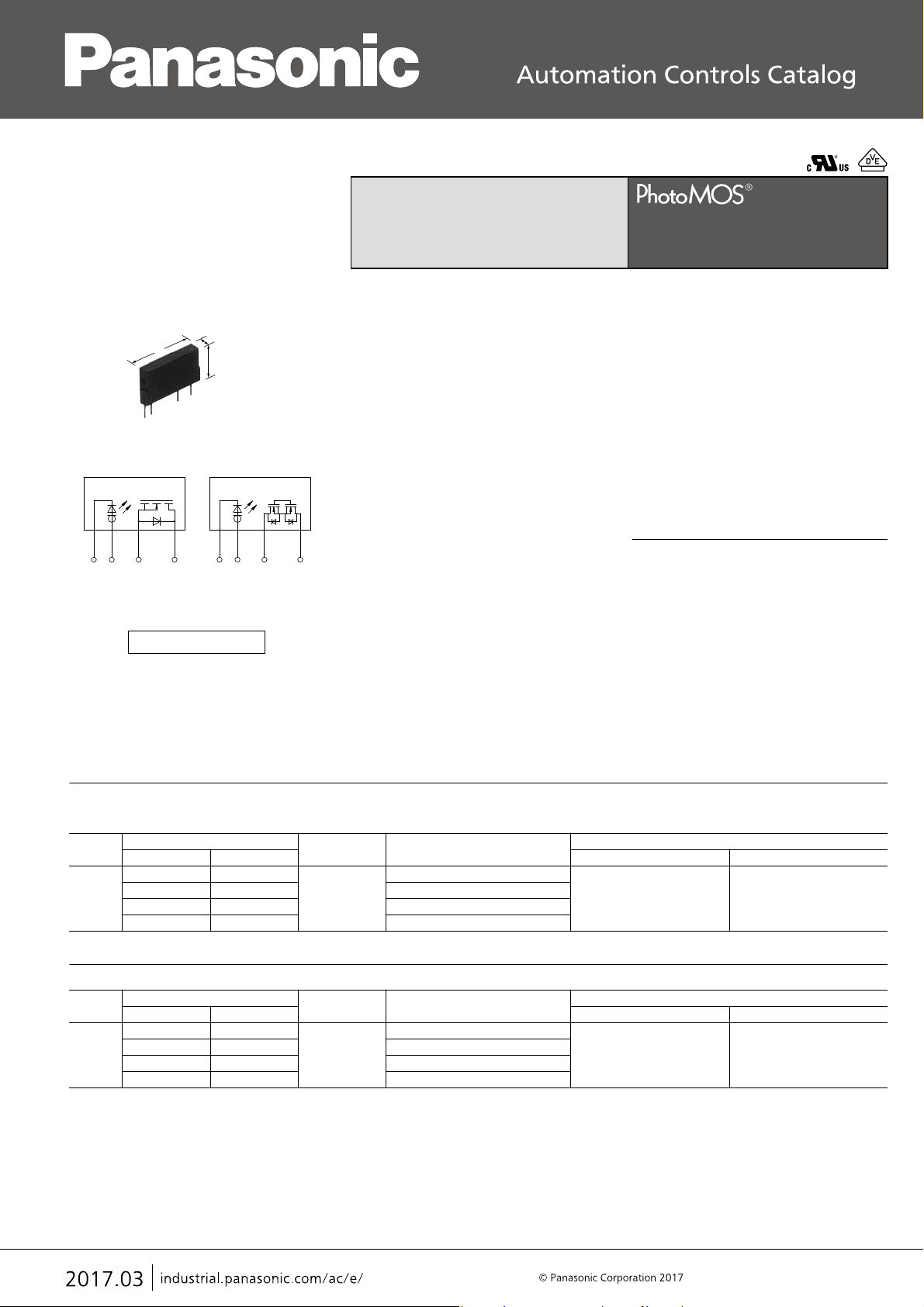

–1–
ASCTB33E 201703-T
TYPES
1. DC type
* Load voltage and current of DC type: DC
2. AC/DC type
* Load voltage and current of AC/DC type: Peak AC/DC
Slim and high capacity
up to 3.6A
Voltage-driven type
Power 1 Form A
Voltage-sensitive (AQZ10D, 20D)
Output rating*
Package Part No.
Packing quantity
Load voltage Load current Inner carton Outer carton
DC only
60 V 3.6 A
SIL4-pin
AQZ102D
25 pcs. 500 pcs.
100 V 2.3 A AQZ105D
200 V 1.1 A AQZ107D
400 V 0.6 A AQZ104D
Output rating*
Package Part No.
Packing quantity
Load voltage Load current Inner carton Outer carton
AC/DC
dual use
60 V 2.7 A
SIL4-pin
AQZ202D
25 pcs. 500 pcs.
100 V 1.8 A AQZ205D
200 V 0.9 A AQZ207D
400 V 0.45 A AQZ204D
(Height includes standoff)
21
3.5
12.5
.827
.138
.492
mm inch
3421
+
DC type
3214
AC/DC type
RoHS compliant
FEATURES
1. A voltage-sensitive power
PhotoMOS
Conventional power PhotoMOS are
connected externally to an input limiting
resistor in order to obtain the appropriate
LED current. Adding an internal constant-
current element renders the input limiting
resistor unnecessary, making it possible
for the PhotoMOS to be voltage-driven.
2. Wide range of input voltages
Allows a wide range of input voltages
from 4 to 30 V DC. The PhotoMOS can
be used in 5 V, 12 V or 24 V DC systems.
3. Both AC/DC dual types and DC-only
types available
The AC/DC dual type is capable of bi-
directional control, and unlike
conventional SSRs, does not have to be
used differently depending on the load.
The DC-only type is well suited for control
of DC solenoids and DC motors.
4. High capacity
Supports the various types of load
control, from very small loads to a max.
2.7 A for the AC/DC dual type, max. 3.6 A
for the DC-only type.
5. High sensitivity and low on-
resistance
Max. 3.6 A load can be controlled with
the min. input voltage of 4 V DC. The on-
resistance is also low at Typ. 0.033 Ω
(AQZ102D).
6. Slim SIL4-pin package
(W) 3.5 × (D) 21.0 × (H) 12.5 mm
(W) .138 × (D) .827 × (H) .492 inch
The compact size of the 4-pin SIL
package allows high density mounting.
TYPICAL APPLICATIONS
• Industrial machines
• Traffic signals
