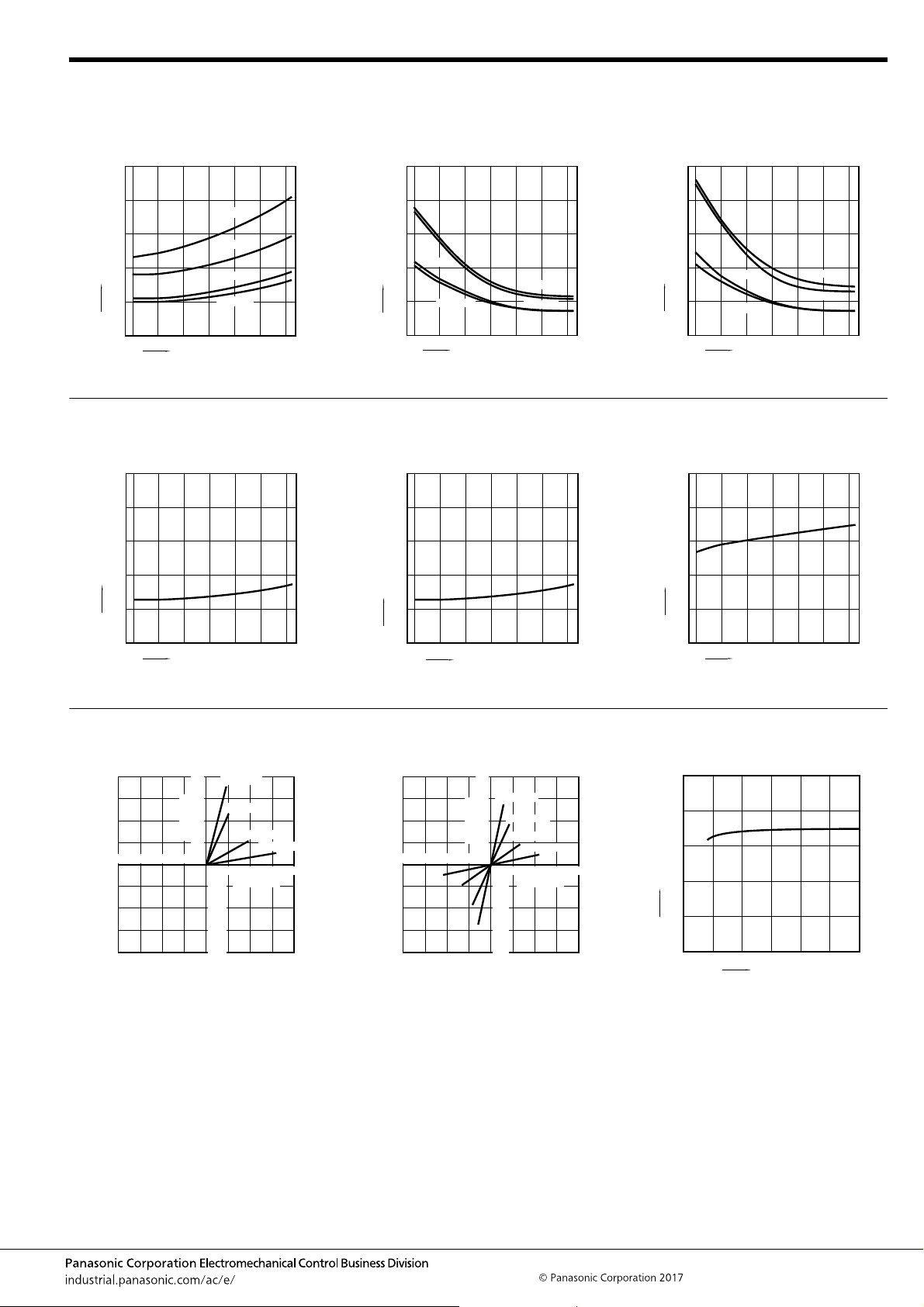

Power 1 Form A Voltage-sensitive (AQZ10❍D, 20❍D)
–5–
ASCTB33E 201703-T
4.-(2) Turn on time vs. ambient temperature
characteristics (AC/DC type)
Input voltage: 5 V;
Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
5.-(1) Turn off time vs. ambient temperature
characteristics (DC type)
Input voltage: 5 V; Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
5.-(2) Turn off time vs. ambient temperature
characteristics (AC/DC type)
Input voltage: 5 V; Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
0
4
6
–40
10
0–20 20 40 60 80
2
8
AQZ204D
AQZ207D
AQZ205D
AQZ202D
85
Ambient temperature, °C
Turn on time, ms
0
0.1
0.2
0.3
0.4
–40 0–20 20 40 60 80
0.5
AQZ104D
AQZ107D
AQZ105D
AQZ102D
85
Ambient temperature, °C
Turn off time, ms
0
0.1
0.2
0.3
0.4
–40 0–20 20 40 60 80
0.5
AQZ207D
AQZ204D
AQZ205D
AQZ202D
85
Ambient temperature, °C
Turn off time, ms
6. Operate voltage vs. ambient temperature
characteristics
Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
7. Turn off voltage vs. ambient temperature
characteristics
Load voltage: 10 V (DC);
Continuous load current: 100 mA (DC)
8. Input current vs. ambient temperature
characteristics
Input voltage: 5 V
0
2.0
3.0
–40
5.0
0–20 20 40 60
80
1.0
4.0
85
Ambient temperature, °C
Operate voltage, V
0
2.0
3.0
–40
5.0
0–20 20 40 60
80
1.0
4.0
85
Ambient temperature, °C
Turn off voltage, ms
0
4
6
–40
10
0–20 20 40 60
80
2
8
85
Ambient temperature, °C
Input current, mA
9.-(1) Current vs. voltage characteristics of
output at MOS portion (DC type)
Ambient temperature: 25°C 77°F
9.-(2) Current vs. voltage characteristics of
output at MOS portion (AC/DC type)
Ambient temperature: 25°C 77°F
10. Input current vs. input voltage
characteristics
Ambient temperature: 25°C 77°F
0 0.80.60.40.2
–0.8 –0.6 –0.4 –0.2
4.0
3.0
2.0
1.0
–4.0
–3.0
–2.0
–1.0
AQZ102D
AQZ105D
AQZ107D
AQZ104D
Voltage, V
Current, A
0 2.01.51.00.5
–2.0 –1.5 –1.0 –0.5
4.0
3.0
2.0
1.0
–4.0
–3.0
–2.0
–1.0
AQZ202D
AQZ205D
AQZ207D
AQZ204D
Voltage, V
Current, A
0
4
6
10
0 5 10 15 20
2
8
25 30
Input voltage, V
Input current, mA
