2
8700D–SEEPR–8/10
Atmel AT24C02C
Absolute Maximum Ratings

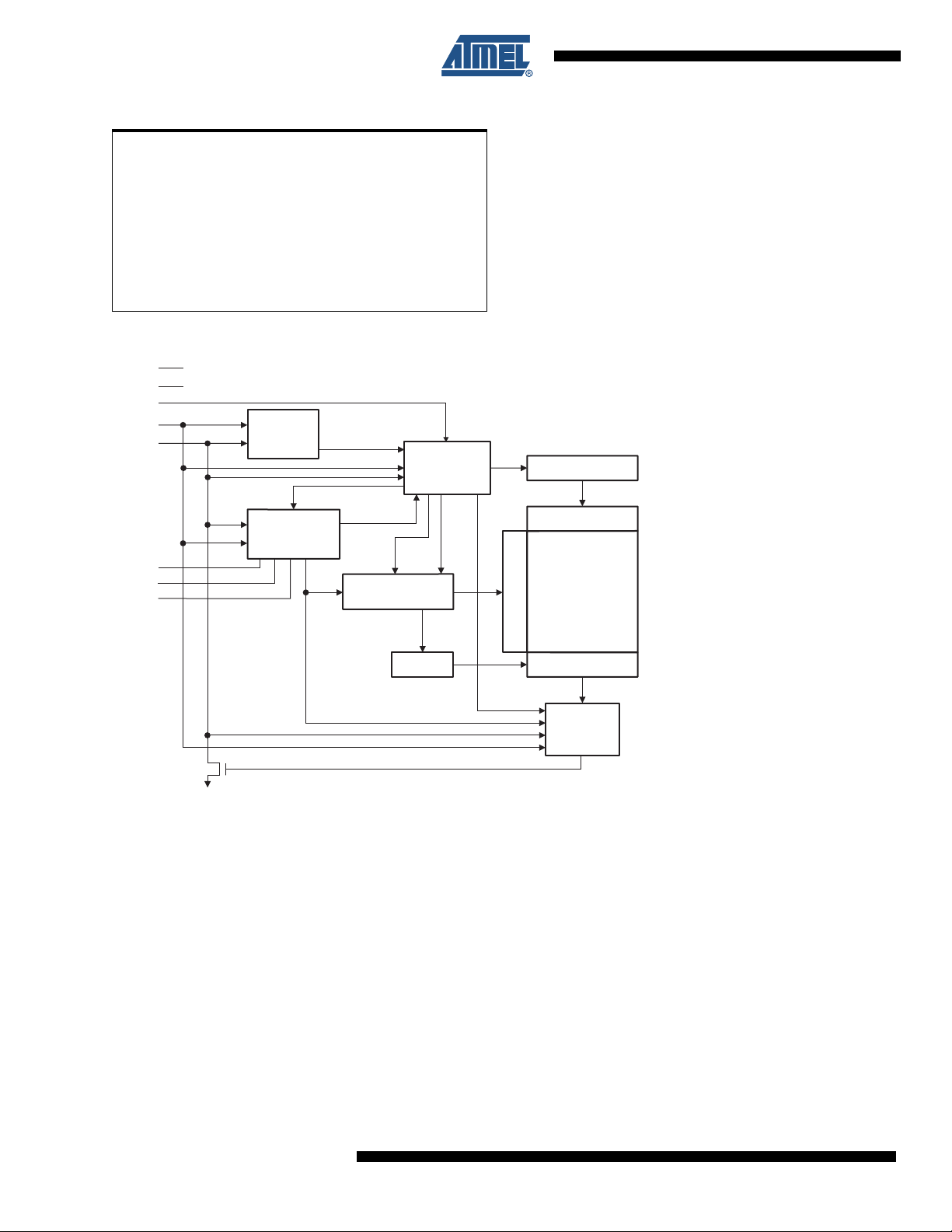

Figure 0-1. Block Diagram
Operating Temperature ........................–55°C to +125°C
*NOTICE: Stresses beyond those listed under “Abso-
lute Maximum Ratings” may cause perma-
nent damage to the device. This is a stress
rating only and functional operation of the
device at these or any other conditions
beyond those indicated in the operational
sections of this specification is not implied.
Exposure to absolute maximum rating condi-
tions for extended periods may affect device
reliability.
Storage Temperature ...........................–65°C to +150°C
Voltage on Any Pin
with Respect to Ground........................... –1.0V to +7.0V
Maximum Operating Voltage................................. 6.25V
DC Output Current .............................................. 5.0 mA
START
STOP
LOGIC
VCC
GND
WP
SCL
SDA
A
2
A
1
A
0
SERIAL
CONTROL
LOGIC
EN
H.V. PUMP/TIMING
EEPROM
DATA RECOVERY
SERIAL MUX
X DEC
D
OUT
/ACK
LOGIC
COMP
LOAD
INC
DATA WO R D
ADDR/COUNTER
Y DEC
R/W
D
OUT
D
IN
LOAD
DEVICE
ADDRESS
COMPARATOR
