C8051F000/1/2/5/6/7
C8051F010/1/2/5/6/7
Mixed-Signal 32KB ISP FLASH MCU Family
a
ANALOG PERIPHERALS
- SAR ADC
12-Bit (C8051F000/1/2, C8051F005/6/7)
10-bit (C8051F010/1/2, C8051F015/6/7)
±1LSB INL; No Missing Codes
Programmable Throughput up to 100ksps
Up to 8 External Inputs; Programmable as Single-
Ended or Differential
Programmable Amplifier Gain: 16, 8, 4, 2, 1, 0.5
Data Dependent Windowed Interrupt Generator
Built-in Temperature Sensor (± 3°C)
- Two 12-bit DACs
- Two Analog Comparators
Programmable Hysteresis Values
Configurable to Generate Interrupts or Reset
- Voltage Reference
2.4V; 15 ppm/°C
Available on External Pin
- Precision VDD Monitor/Brown-out Detector
ON-CHIP JTAG DEBUG & BOUNDARY SCAN
- On-Chip Debug Circuitry Facilitates Full Speed, Non-
Intrusive In-System Debug (No Emulator Required!)
- Provides Breakpoints, Single Stepping, Watchpoints, Stack
Monitor
- Inspect/Modify Memory and Registers
- Superior Performance to Emulation Systems Using ICE-
Chips, Target Pods, and Sockets
- IEEE1149.1 Compliant Boundary Scan
- Low Cost Development Kit
HIGH SPEED 8051 µC CORE
- Pipelined Instruction Architecture; Executes 70% of
Instruction Set in 1 or 2 System Clocks
- Up to 25MIPS Throughput with 25MHz Clock
- 21 Vectored Interrupt Sources
MEMORY
- 256 Bytes Internal Data RAM (F000/01/02/10/11/12)
- 2304 Bytes Internal Data RAM (F005/06/07/15/16/17)
- 32k Bytes FLASH; In-System Programmable in 512 byte
Sectors
DIGITAL PERIPHERALS
- 4 Byte-Wide Port I/O; All are 5V tolerant
- Hardware SMBus
TM
(I2C
TM
Compatible), SPI
TM
, and UART
Serial Ports Available Concurrently
- Programmable 16-bit Counter/Timer Array with Five
Capture/Compare Modules
- Four General Purpose 16-bit Counter/Timers
- Dedicated Watch-Dog Timer
- Bi-directional Reset
CLOCK SOURCES
- Internal Programmable Oscillator: 2-to-16MHz
- External Oscillator: Crystal, RC,C, or Clock
- Can Switch Between Clock Sources on-the-fly; Useful in
Power Saving Modes
SUPPLY VOLTAGE ........................2.7V to 3.6V
- Typical Operating Current: 12.5mA @ 25MHz
- Multiple Power Saving Sleep and Shutdown Modes
64-Pin TQFP, 48-Pin TQFP, 32-Pin LQFP
Temperature Range: –40°C to +85°C

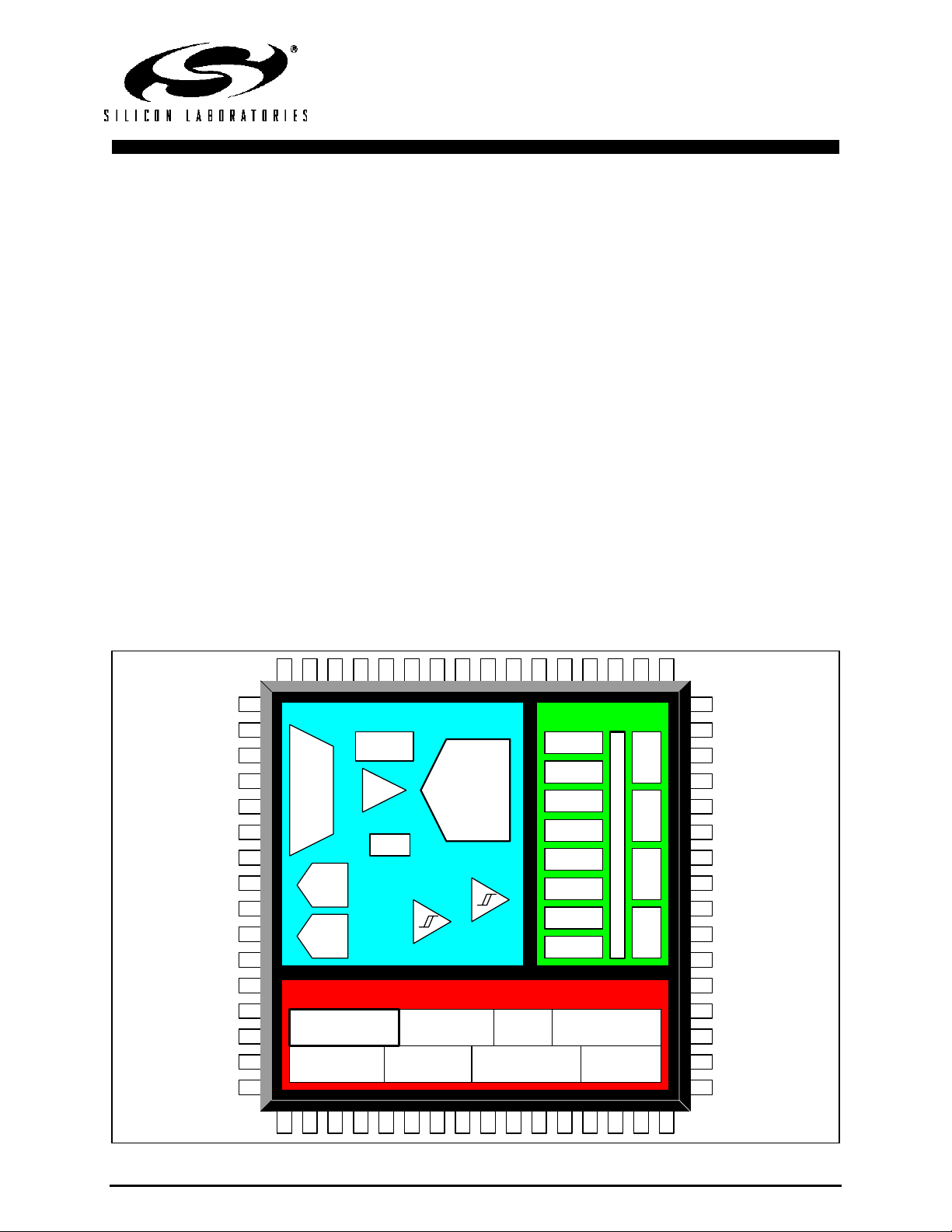

JTAG
32KB
ISP FLASH
256/2304 B
SRAM
SANITY
CONTROL
+
-
SAR
ADC
CLOCK
CIRCUIT
PGA
VREF
12-Bit
DAC
AMUX
TEMP
SENSOR
VOLTAGE
COMPARATORS
ANALOG PERIPHERALS
Port 0Port 1
UART
SMBus
SPI Bus
PCA
Port 2Port 3
CROSSBAR
Timer 0
Timer 1
Timer 2
Timer 3
DIGITAL I/O
HIGH-SPEED CONTROLLER CORE
DEBUG
CIRCUITRY
21
INTERRUPTS
8051 CPU
(25MIPS)
12-Bit
DAC
+
-
Rev. 1.7 11/03 Copyright © 2003 by Silicon Laboratories
