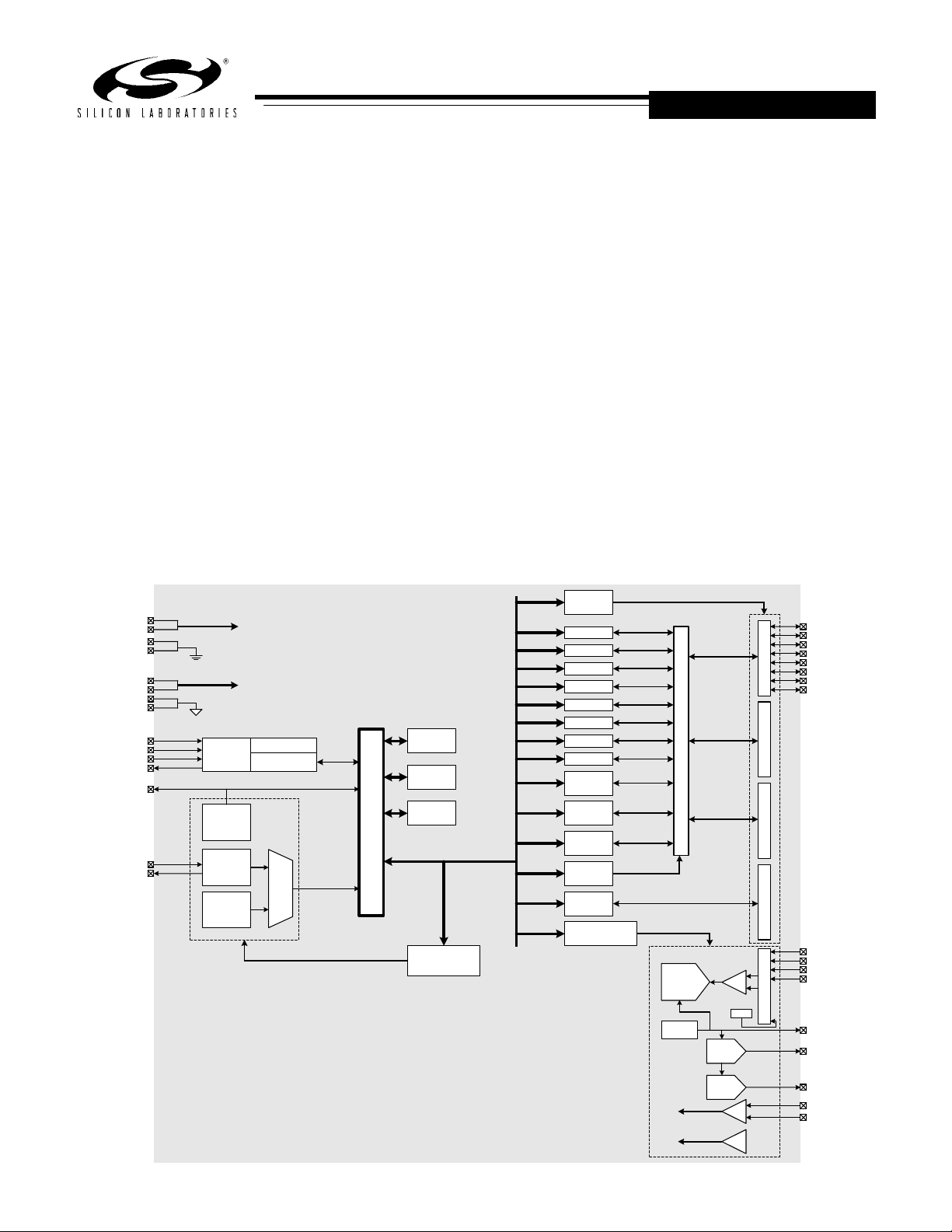

C8051F007
Mixed-Signal 32KB ISP FLASH MCU
PRELIMINARY
ANALOG PERIPHERALS
12-bit, 100 KSPS ADC
- ±1LSB INL
- No Missing Codes
- Programmable Throughput up to 100ksps
- 4 External Inputs; Programmable as Single-Ended or Differential
- Programmable Amplifier Gain: 16, 8, 4, 2, 1, 0.5
- Data Dependent Windowed Interrupt Generator
- Built-in Temperature Sensor (± 3°C)
Two 12-bit DACs
- Voltage Output
- 10usec Settling Time
Comparator
- 16 Programmable Hysteresis Values
- Configurable to Generate Interrupts or Reset
Reference
- 2.4V; 15 ppm/°C
- External Reference Input
VDD Monitor and Brown-out Detector
ON-CHIP JTAG EMULATION
- On-Chip Emulation Circuitry Facilitates Full Speed, Non-
Intrusive In-Circuit Emulation
- Supports Breakpoints, Single Stepping, Watchpoints
- Inspect/Modify Memory and Registers
- Superior Performance to Emulation Systems Using ICE-Chips,
Target Pods, and Sockets
- Fully Compliant with IEEE 1149.1 Specification
- $99 Emulation Kit (C8051F005DK)
8051-COMPATIBLE
µ
C Core
- Pipelined Instruction Architecture; Executes 70% of Instructions in
1 or 2 System Clocks
- Up to 25MIPS Throughput with 25MHz Clock
- Expanded Interrupt Handler; Up to 22 Interrupt Sources
MEMORY
- 2304 Bytes Data RAM
- 32k Bytes FLASH; In-System Programmable in 512 byte Sectors
DIGITAL PERIPHERALS
- 8 Port I/O; All are 5V tolerant
- Hardware I2C
TM
/SMBus
TM
, SPI
TM
, and UART Serial Ports
Available Concurrently
- 16-bit Programmable Counter/Timer Array with 5
Capture/Compare Modules (Each Configurable as an 8-Bit PWM)
- 4 General Purpose 16-bit Counter/Timers
- Dedicated Watch-Dog Timer; Bi-directional Reset
CLOCK SOURCES
- Internal Programmable Oscillator: 2-to-16MHz
- External Oscillator: Crystal, RC,C, or Clock
- Can Switch Between Clock Sources on-the-fly; Useful in Power
Saving Modes
SUPPLY VOLTAGE ...................................................... 2.7V to 3.6V
- Typical Operating Current: 12mA @ 25MHz
- Multiple Power Saving Sleep and Shutdown Modes
32-Pin LQFP Package
Temperature Range: –40°C to +85°C
I2C is a trademark of Philips Semi.; SMBus is a trademark of Intel Corp.; SPI is a trademark of Motorola, Inc.
Port 0
Latch
Port 1
Latch
JTAG
Logic
TCK
TMS
TDI
TDO
UART
SMBus
SPI Bus
PCA
32kbyte
FLASH
256 byte
SRAM
VDD
Monitor,
WDT
DAC0
DAC0
(12-Bit)
SFR Bus
Prog
Gain
Port 2
Latch
Port 3
Latch
VREF
8
0
5
1
C
o
r
e
Timer 0
Timer 1
Timer 2
Timer 3
DAC1
(12-Bit)
ADC
100ksps
(12-Bit)
A
M
U
X
CP0
CP1
AIN0
AIN1
AIN2
AIN3
P
1
D
r
v
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
P
0
D
r
v
P
3
D
r
v
P
2
D
r
v
DAC1
CP0+
CP0-
VREF
C
R
O
S
S
B
A
R
S
W
I
T
C
H
Port I/O
Config.
Crossbar
Config.
Analog Config.
& Control
AV+
AV+
VDD
VDD
DGND
DGND
AGND
AGND
Reset
/RST
XTAL1
XTAL2
External
Oscillator
Circuit
System Clock
Internal
Oscillator
Clock & Reset
Configuration
Digital Power
Analog Power
Emulation HW
TEMP
Boundry Scan
2048 byte
XRAM
12.20.2000
