CRG0603F1K5 产品设计图 - TE Connectivity（泰科）
制造商:
TE Connectivity（泰科）
分类:
贴片电阻
封装:
0603
描述:
0603 型 CRG0603 系列 SMD厚膜电阻器 CRG 系列具有高功率尺寸比，特别适用于工业和一般用途 1Ω 至 10M 范围，1% 和 5% 容差。 还包括 0Ω 链路。 由于短引线结构和低电容，适用于大多数应用，包括高频操作 七种封装尺寸 接线端子表面：无光泽锡 湿度敏感性等级：2 级 70°C 时功率 | 0.1W ---|--- 电阻容差 | ±1% 温度系数 | ±100ppm/°C 工作温度 | -55°C → +125°C 极限元件电压 | 150V 跳线芯片电阻 | 50mΩ（最大值） 70°C 时电流 | 1A（仅零欧姆电阻器） 尺寸（长x宽x厚） | 1.6 x 0.8 x 0.45 mm ### 厚膜 - 0402/0603
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
标记信息在P2P3
功能描述在P1
技术参数、封装参数在P1P2P3
电气规格在P3
导航目录
CRG0603F1K5数据手册
Page:
of 3 Go
若手册格式错乱，请下载阅览PDF原文件

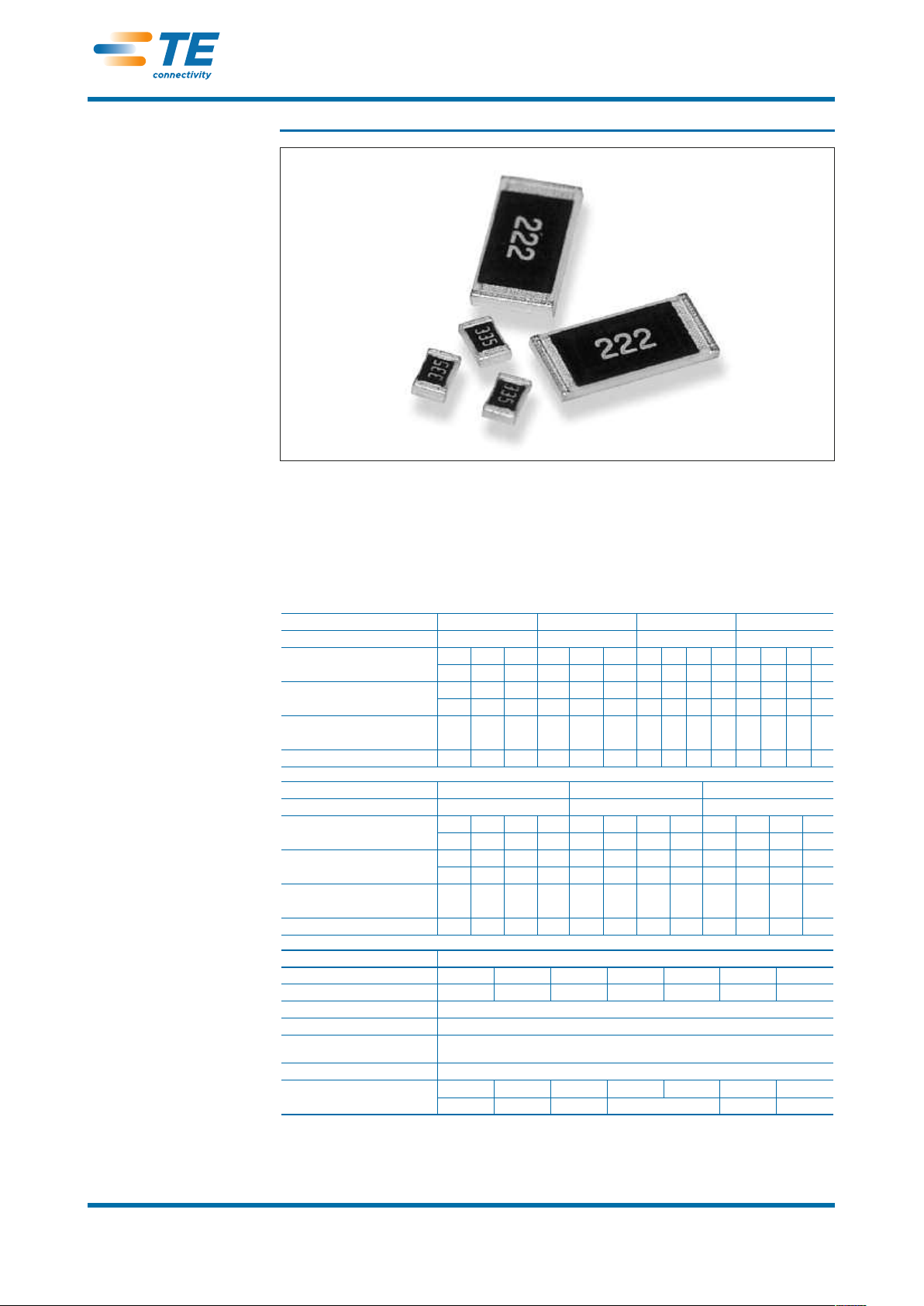

Characteristics – Electrical
0201 0402 0603 0805
Rated Power @ 70 °C (W) 0.05 0.063 0.1 0.125
Resistance Range Min 10 1 11 10 1 11 1 101 1 11 1 101 1 11
(Ohms) Max 1M0 10 1M0 2M0 10 3M3 100 1M0 10 10M 100 1M0 10 10M
Tolerance (%) 15515511551155
Code letter FJ JFJJFFJJFFJJ
Selection Series E24 E24 E24 E24 E24 E24 E24 E24 E24 E24 E24 E24 E24 E24
E96 E96 E96 E96
Temp. Coefficient (ppm/°C) ±200 ±400 ±200 ±100 ±400 ±200 ±200 ±100 ±200
±200 ±200 ±100 ±400 ±200
1206 2010 2512
Rated Power @ 70 °C (W) 0.25 0.5 1
Resistance Range Min 1 101 1 11 1 101 1 11 1 101 1 11
Ohms Max 100 1M0 10 10M 100 1M0 10 10M 100 1M0 10 10M
Tolerance (%) 115 511 55 115 5
Code letter FF J JFF JJ FFJ J
Selection Series E24 E24 E24 E24 E24 E24 E24 E24 E24 E24 E24 E24
E96 E96 E96
Temp. Coefficient (ppm/°C) ±200 ±100 ±400 ±200 ±200 ±100 ±400 ±200 ±200 ±100 ±400 ±200
0201 0402 0603 0805 1206 2010 2512
Working Voltage (V) 25 50 50 150 200 200 200
Max. Overload Voltage (V) 50 100 100 300 400 400 400
Operating Temp. Range (°C) -55 to +125
Climatic Category (°C) 55/125/56
Insulation Resistance Dry 1000
Min (Mohms)
Stability (%) 3
Zerohm (A) Current Max
0.5 112222
Resistance Max
<50 mOhm <50 mOhm
Thick Film Chip Resistors
Type CRG Series
1773204 CIS WR 03/2012 Dimensions are in millimeters Dimensions are shown for For email, phone or live chat, go to: te.com/help
and inches unless otherwise reference purposes only.
specified. Values in brackets Specifications subject
are standard equivalents. to change.
Key Features
n T
hick film resistors with
a high power to size
ratio,ideally suited to
industrial and general
purpose use.
A range from 1 ohm to
10M and tolerances of
1% and 5%. Also
including zero ohm links.
n S
uitable for most
applications, including
high frequency
operation, owing to the
short lead structure and
low capacitance.
n Seven Package Sizes
n Terminal finish: Matte Sn
n MSL Level 2
Precious metal terminations are screen printed onto a ceramic base and fired. The
resistive element is screen printed and fired and the passivation layer added. Each
resistor is trimmed to tolerance by laser. The pre-scribed tile is broken into strips, the end
plating is fired on and the strips broken into individual components. Final termination is
made by electroplating.
