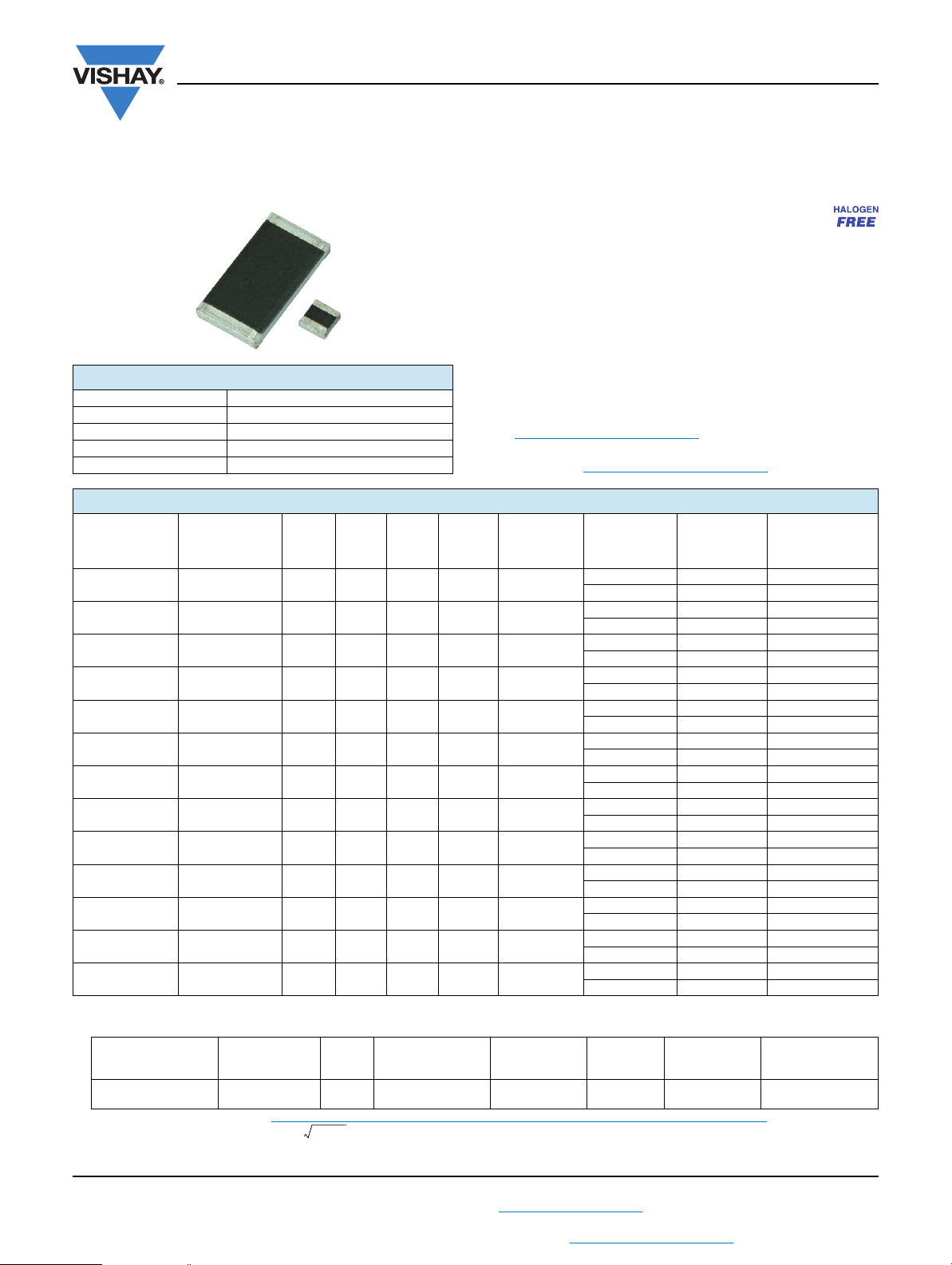

RCWPM (Military M/D55342)
www.vishay.com
Vishay Dale
Revision: 22-Nov-12
1
Document Number: 31010
For technical questions, contact: ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Thick Film Chip Resistors, Military/Established Reliability
MIL-PRF-55342 Qualified, Type RM
FEATURES
• Fully conforms to the requirements of
MIL-PRF-55342
• Established reliability - verified failure rate; M, P, R, U, S,
V, and T levels
• Construction is sulfur impervious against a high sulfur
environment (ASTM B 809-95 test method)
• 100 % group A screening per MIL-PRF-55342
• Termination style B - tin/lead wraparound over nickel
barrier
• Operating temperature range is - 55 °C to + 150 °C
• For MIL-PRF-32159 zero ohm jumpers, see Vishay Dale’s
RCWPM Jumper (Military M32159) datasheet
(www.vishay.com/doc?31028)
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
Notes
• DSCC has created a series of drawings to support the need for 0201-sized product. Vishay Dale is listed as a resource on this drawing as
follows:
This drawing can be viewed at: www.landandmaritime.dla.mil/Programs/MilSpec/ListDwgs.aspx?DocTYPE=DSCCdwg
.
(1)
Continuous working voltage shall be or maximum working voltage, whichever is less.
(2)
Characteristics: K = ± 100 ppm/°C; L = ± 200 ppm/°C; M = ± 300 ppm/°C.
(3)
MIL case size 0705 and EIA case size 0805 are dimensionally the same.
MECHANICAL SPECIFICATIONS
Resistive element Ruthenium oxide
Encapsulation Epoxy
Substrate 96 % alumina
Termination Solder-coated nickel barrier
Solder finish Tin/lead solder alloy
STANDARD ELECTRICAL SPECIFICATIONS
VISHAY DALE
MODEL
MIL-PRF-55342
STYLE
MIL
SPEC.
SHEET
TERM.
CASE
SIZE
POWER
RATING
P
70 °C
W
MAX.
WORKING
VOLTAGE
(1)
V
RESISTANCE
RANGE
TOLERANCE
± %
TEMPERATURE
COEFFICIENT
(2)
± ppm/°C
RCWPM-0502 RM0502 01 B 0502 0.05 40
1 to 9.1 2, 5, 10 300
10 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-550 RM0505 02 B 0505 0.125 40
1 to 9.1 2, 5, 10 300
10 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-5100 RM1005 03 B 1005 0.20 75
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-5150 RM1505 04 B 1505 0.15 125
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-7225 RM2208 05 B 2208 0.225 175
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-575 RM0705 06 B
0705
(3)
0.15 50
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-1206 RM1206 07 B 1206 0.25 100
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-2010 RM2010 08 B 2010 0.80 150
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-2512 RM2512 09 B 2512 1.0 200
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-1100 RM1010 10 B 1010 0.50 75
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-0402 RM0402 11 B 0402 0.05 30
1 to 9.1 2, 5, 10 300
10 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-0603 RM0603 12 B 0603 0.10 50
1 to 5.6 2, 5, 10 300
5.62 to 22M 1, 2, 5, 10 100, 200, 300
RCWPM-0302 RM0302 13 B 0302 0.04 15
1 to 9.1 2, 5, 10 300
10 to 22M 1, 2, 5, 10 100, 200, 300
DSCC DRAWING
NUMBER
VISHAY DALE
MODEL
TERM.
POWER RATING
P
70 °C
W
RES. RANGE
RES. TOL.
± %
TEMP. COEF.
± ppm/°C
MAX. WORKING
VOLTAGE
(1)
V
07009 RCWP-0201 B 0.05
10 to 46.4
47 to 1M
1, 5
200
100
30
P x R
