RCWPM (Military M/D55342)
www.vishay.com
Vishay Dale
Revision: 22-Nov-12
3
Document Number: 31010
For technical questions, contact: ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

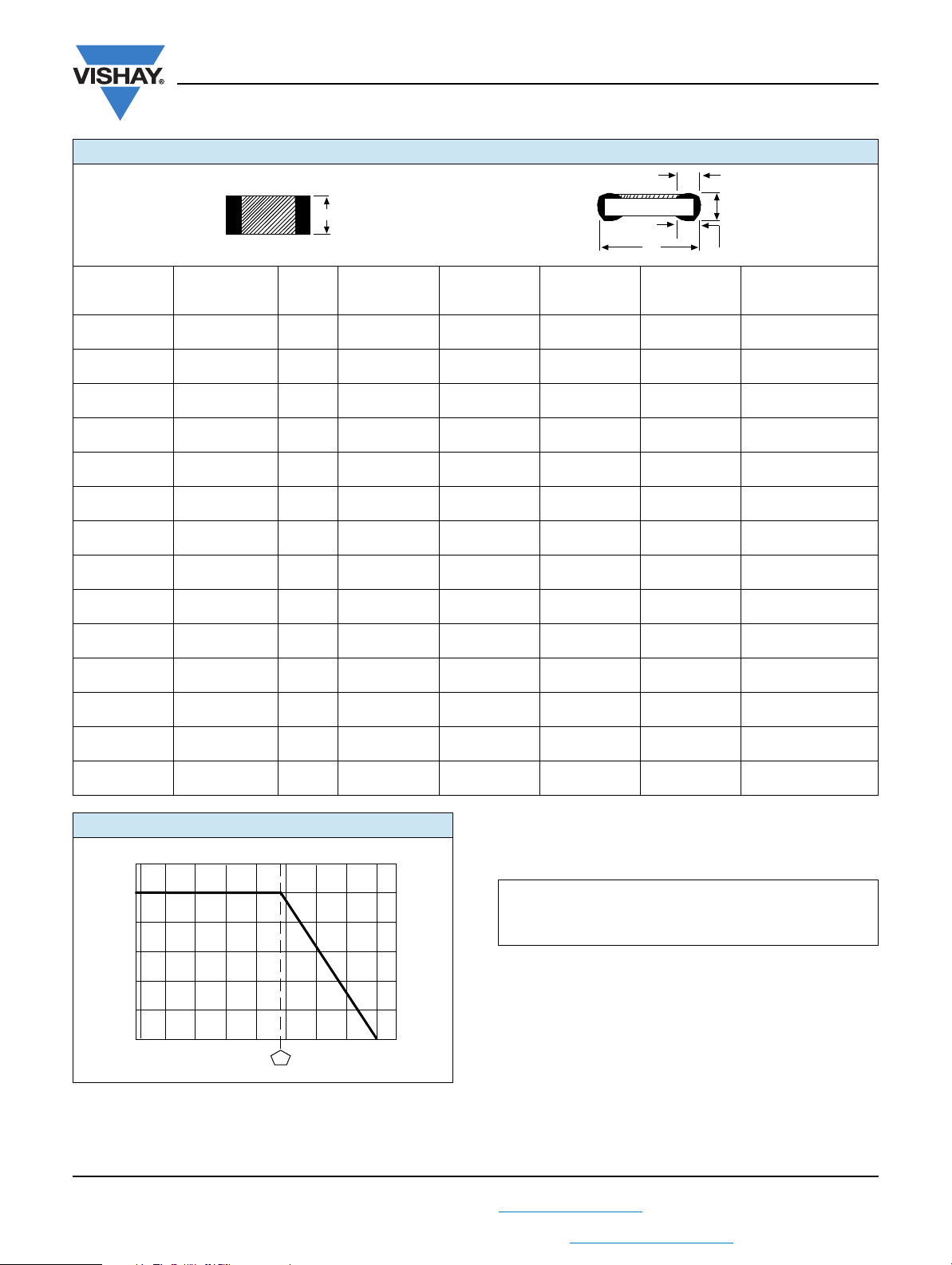

DIMENSIONS in inches (millimeters)
VISHAY DALE
MODEL
MIL-PRF-55342
STYLE
MIL
SPEC.
SHEET
A
(LENGTH)
B
(WIDTH)
C
(HEIGHT)
D
(TOP TERM)
E
(BOTTOM TERM)
RCWPM-0502 RM0502 01
0.055 ± 0.005
(1.40 ± 0.13)
0.023 ± 0.003
(0.58 ± 0.08)
0.015 ± 0.003
(0.38 ± 0.08)
0.010 ± 0.005
(0.25 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-550 RM0505 02
0.055 ± 0.005
(1.40 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-5100 RM1005 03
0.105 ± 0.005
(2.67 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-5150 RM1505 04
0.155 ± 0.005
(3.94 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-7225 RM2208 05
0.230 ± 0.005
(5.84 ± 0.13)
0.075 ± 0.005
(1.91 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
RCWPM-575 RM0705 06
0.080 ± 0.005
(2.03 ± 0.13)
0.050 ± 0.005
(1.27 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.016 ± 0.008
(0.41 ± 0.20)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-1206 RM1206 07
0.125 ± 0.005
(3.18 ± 0.13)
0.063 ± 0.005
(1.60 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-2010 RM2010 08
0.197 ± 0.006
(5.00 ± 0.15)
0.098 ± 0.005
(2.49 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
RCWPM-2512 RM2512 09
0.250 ± 0.005
(6.35 ± 0.13)
0.124 ± 0.005
(3.15 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
RCWPM-1100 RM1010 10
0.105 ± 0.005
(2.67 ± 0.13)
0.100 ± 0.005
(2.54 ± 0.13)
0.020 ± 0.005
(0.51 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-0402 RM0402 11
0.039 ± 0.003
(0.99 ± 0.08)
0.020 ± 0.003
(0.51 ± 0.08)
0.013 ± 0.003
(0.33 ± 0.08)
0.010 ± 0.005
(0.25 ± 0.13)
0.010 ± 0.005
(0.25 ± 0.13)
RCWPM-0603 RM0603 12
0.063 ± 0.005
(1.60 ± 0.13)
0.032 ± 0.005
(0.81 ± 0.13)
0.018 ± 0.005
(0.46 ± 0.13)
0.012 ± 0.005
(0.30 ± 0.13)
0.015 ± 0.005
(0.38 ± 0.13)
RCWPM-0302 RM0302 13
0.034 ± 0.004
(0.86 ± 0.10)
0.021 ± 0.003
(0.53 ± 0.08)
0.013 ± 0.003
(0.33 ± 0.08)
0.007 ± 0.005
(0.18 ± 0.13)
0.008 ± 0.005
(0.20 ± 0.13)
RCWP-0201
0.024 ± 0.002
(0.61 ± 0.05)
0.012 ± 0.002
(0.30 ± 0.05)
0.009 ± 0.002
(0.23 ± 0.05)
0.006 ± 0.003
(0.15 ± 0.08)
0.006 + 0.002 - 0.004
(0.15 + 0.05 - 0.10)
D
C
A
E
B
DERATING CURVE
- 55 - 25 75 100 125 150 175
120
100
80
60
40
20
0
Ambient Temperature in °C
70
Rated Power in %
05025
CAGE CODE: 91637 and SH903
