DRV2603
SLOS754B –JUNE 2012–REVISED SEPTEMBER 2015
DRV2603 Haptic Drive With Auto-Resonance Detection for Linear Resonance Actuators
(LRA)
1 Features 3 Description
The DRV2603 is a haptic driver designed specifically
1
• Flexible Haptic/Vibra Driver
to solve common obstacles in driving both Linear
– LRA (Linear Resonance Actuator)
Resonance Actuator (LRA) and Eccentric Rotating
– ERM (Eccentric Rotating Mass)
Mass (ERM) haptic elements. The DRV2603 is
designed for low latency, high efficiency, and more
• Auto Resonance Tracking for LRA
drive strength for actuators commonly used for tactile
– No Frequency Calibration Required
feedback in the portable market.
– Automatic Drive Commutation
LRA actuators typically have a narrow frequency
– Automatic Braking Algorithm
band over which they have an adequate haptic
– Wide Input PWM Frequency Range
response. This frequency window is typically ±2.5 Hz
wide or less, so driving an LRA actuator presents a
• Constant Vibration Strength Over Supply
challenge. The DRV2603 solves this problem by
• Automatic Input Level Translation
employing auto resonance tracking, which
• 0% to 100% Duty Cycle Control Range
automatically detects and tracks the LRA resonant
frequency in real time. This means that any input
• Fast Start Up Time
PWM frequency within the input range (10 kHz to 250
• Differential Drive from Single-Ended Input
kHz) will automatically produce the correct resonant
• Wide Supply Voltage Range of 2.5 V to 5.2 V
output frequency. As an additional benefit, the
• Immersion TouchSense
®
3000 Compatible
DRV2603 implements an automatic braking algorithm
to prevent LRA ringing at the end of waveforms,
• 1.8-V Compatible, 5-V Tolerant Digital Pins
leaving the user with a crisp haptic sensation.
• Available in a 2 mm × 2 mm × 0.75 mm Leadless
For both ERM and LRA actuators, the automatic input
QFN Package (RUN)
level translation solves issues with low voltage PWM
sources without adding additional external
2 Applications
components, so if the digital I/O levels vary, the
• Mobile Phones and Tablets
output voltage does not change. The DRV2603 also
• Watches and Wearable Technology
has supply correction that ensures no supply
regulation is required for constant vibration strength,
• Remote Controls, Mice, and Peripheral Devices
allowing an efficient, direct-battery connection.
• Electronic Point of Sale (ePOS)
• Vibration Alerts and Notifications
Device Information
(1)
• Touch-Enabled Devices
PART NUMBER PACKAGE BODY SIZE (NOM)
DRV2603 WQFN (10) 2.00 mm × 2.00 mm
• Industrial Human-Machine Interfaces
(1) For all available packages, see the orderable addendum at
the end of the datasheet.

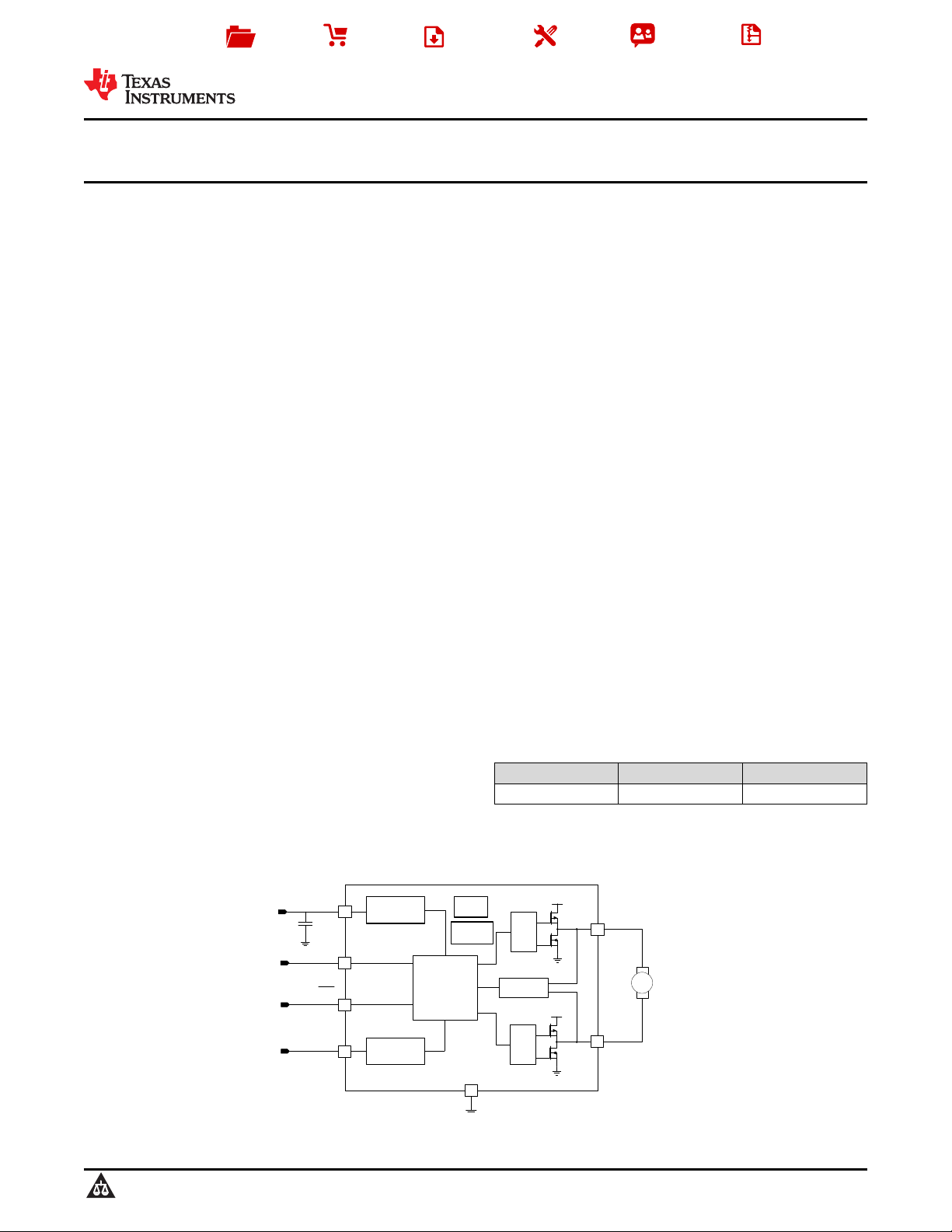

DRV2603 Block Diagram
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
