EN
PWM
NC OUT -
VDD
GND
OUT +
LRA / ERM
GND
GND
5
10
1
2
3
4
9
8
7
6
DRV2603
www.ti.com
SLOS754B JUNE 2012REVISED SEPTEMBER 2015

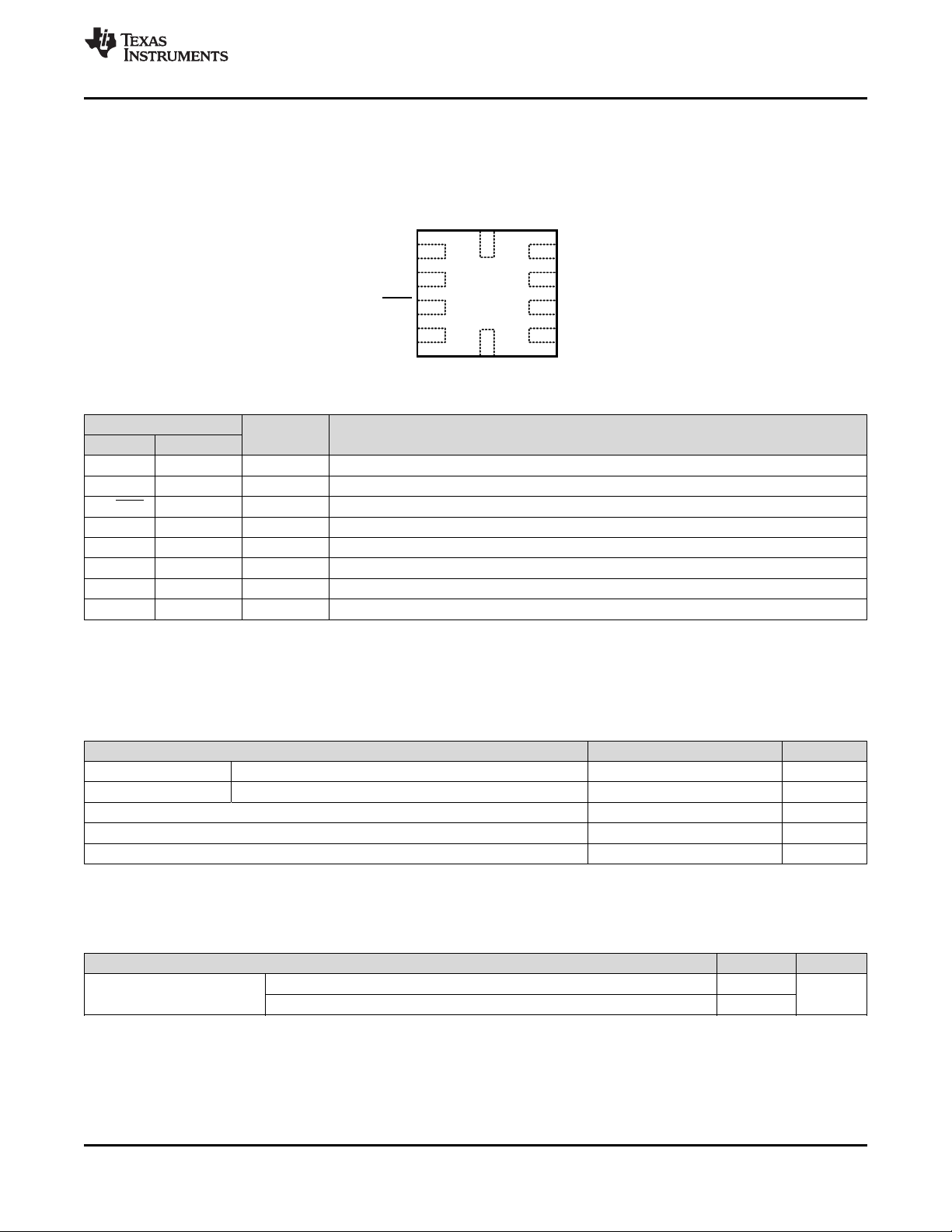

5 Pin Configuration and Functions
RUN Package
10-Pin WQFN
Top View
Pin Functions
PIN
I/O/P
(1)
DESCRIPTION
NAME NO.
EN 1 I Device enable
GND 5, 8, 10 P Supply ground
LRA/ERM 3 I Mode selection. ERM = Low, LRA = High
NC 4 I No Connection
OUT+ 9 O Positive haptic driver differential output
OUT– 6 O Negative haptic driver differential output
PWM 2 I Input signal
VDD 7 P Supply Input (2.5 V to 5.5 V)
(1) I = Input, O = Output, P = Power
6 Specifications
6.1 Absolute Maximum Ratings
(1)
over operating free-air temperature range, T
A
= 25°C (unless otherwise noted)
MIN MAX UNIT
Supply voltage VDD –0.3 6 V
V
I
Input voltage EN, PWM, LRA/ERM –0.3 V
DD
+ 0.3 V
T
A
Operating free-air temperature range –40 85 °C
T
J
Operating junction temperature range –40 150 °C
T
stg
Storage temperature range –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
VALUE UNIT
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
±2000
Electrostatic
V
(ESD)
V
discharge
Charged-device model (CDM), per JEDEC specification JESD22-C101
(2)
±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Copyright © 2012–2015, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: DRV2603
