OUT+REG
TRIG/
INTZ
GNDNRSTSDA
OUT-VDDSCL
1 2 3
C
B
A
3
DRV2625
www.ti.com
SLOS879B –APRIL 2014–REVISED SEPTEMBER 2016
Product Folder Links: DRV2625
Submit Documentation FeedbackCopyright © 2014–2016, Texas Instruments Incorporated

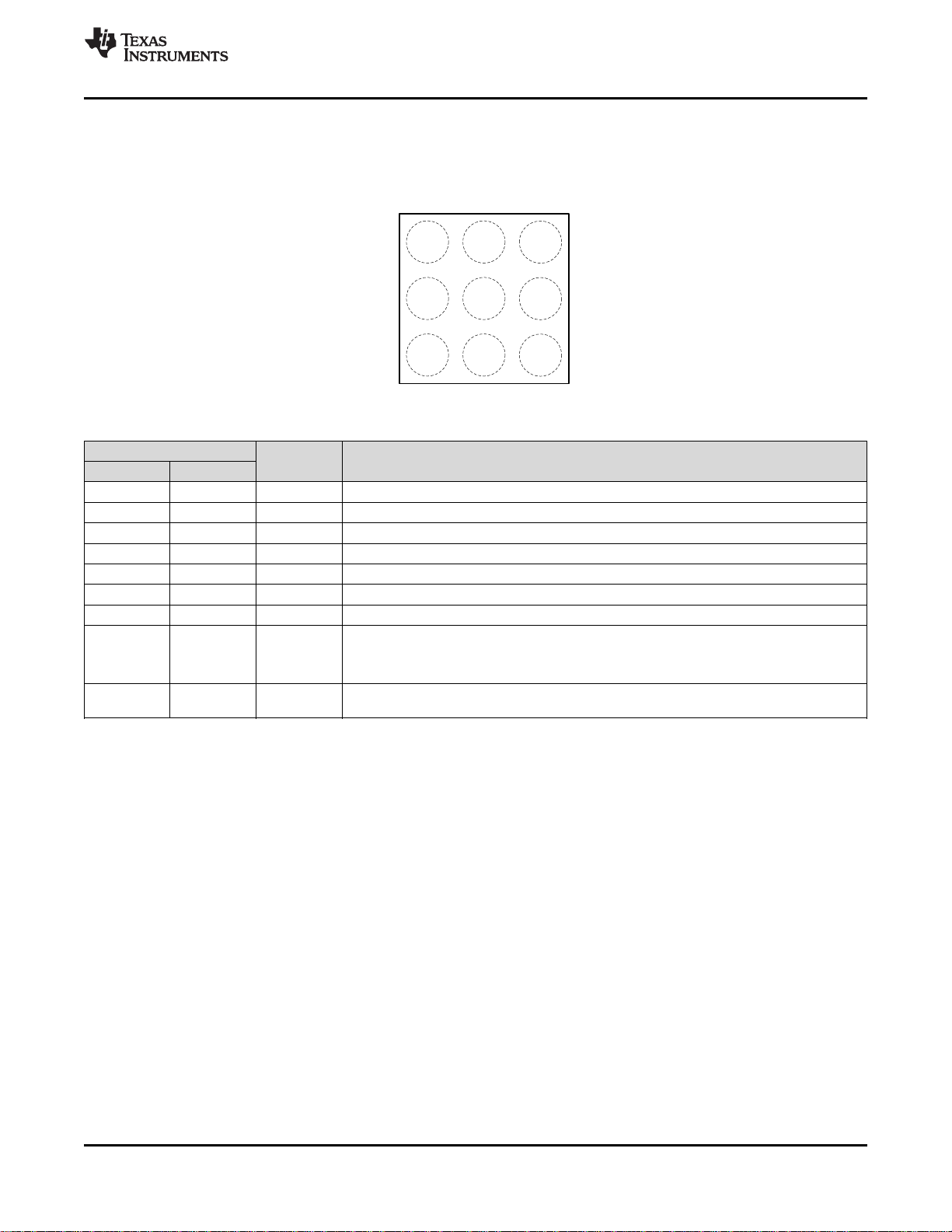

5 Pin Configuration and Functions
YFF Package
9-Pin DSBGA
Top View
Pin Functions
PIN
I/O DESCRIPTION
NAME NO.
VDD C2 P Supply input (2.7 V to 5.5 V). A 0.1-µF capacitor is required.
GND B3 P Supply ground
REG A2 O 1.8 V regulator output. A 0.1-µF capacitor is required
OUT- C3 O Negative haptic driver differential output
OUT+ A3 O Positive haptic driver differential output
SDA B1 I/O I
2
C data
SCL C1 I I
2
C clock
TRIG/INTZ A1 I/O
Multi-mode pin. Selectable as input trigger (pulse), input enable, or output interrupt. This pin
has an internal pull-down.
If pin is not used, it should be connected to ground.
NRST B2 I
Device reset pin (shutdown mode). If pin is not used, it should be connected to VDD (no
internal pull-up or pull-down).
