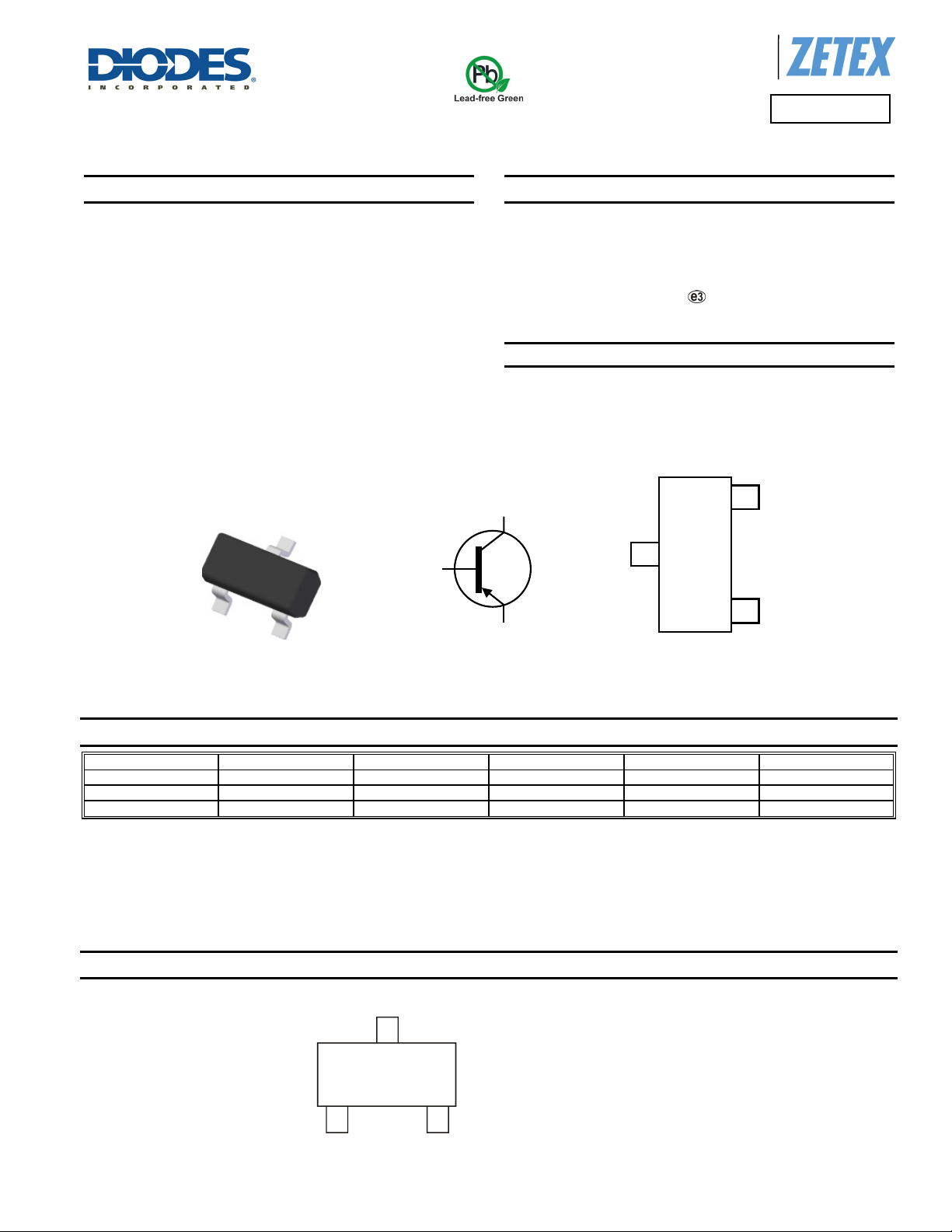

FMMT718
Document Number: DS31924 Rev. 4 - 2
1 of 7
www.diodes.com
October 2012
© Diodes Incorporated
A
Product Line o
f
Diodes Incorporated
FMMT718
20V PNP SILICON LOW SATURATION TRANSISTOR IN SOT23
Features
• BV
CEO
> -20V
• I
C
= -1.5A Continuous Collector Current
• I
CM
= -6A Peak Pulse Current
• Low Saturation Voltage V
CE(sat)
< -200mV @ -1A
• R
CE(SAT)
= 97mΩ for a low equivalent on-resistance
• 625mW power dissipation
• h
FE
characterised up to -6A for high current gain hold-up
• Complementary NPN Type: FMMT618
• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• PPAP capable (Note 4)
Mechanical Data
• Case: SOT23
• Case Material: molded plastic, “Green” molding compound
• UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight 0.008 grams (approximate)
Applications
• Gate Driving MOSFETs and IGBTs
• DC-DC Converters
• Charging circuit
• Power switches
Ordering Information (Note 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FMMT718TA AEC-Q101 718 7 8 3,000
FMMT718TC AEC-Q101 718 13 8 10,000
FMMT718QTA Automotive 718 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com
Marking Information
718 = Product Type Marking Code
718
SOT23
Top View
Pin-Out
Top View Device Symbol
C
E
B
C
E
B
