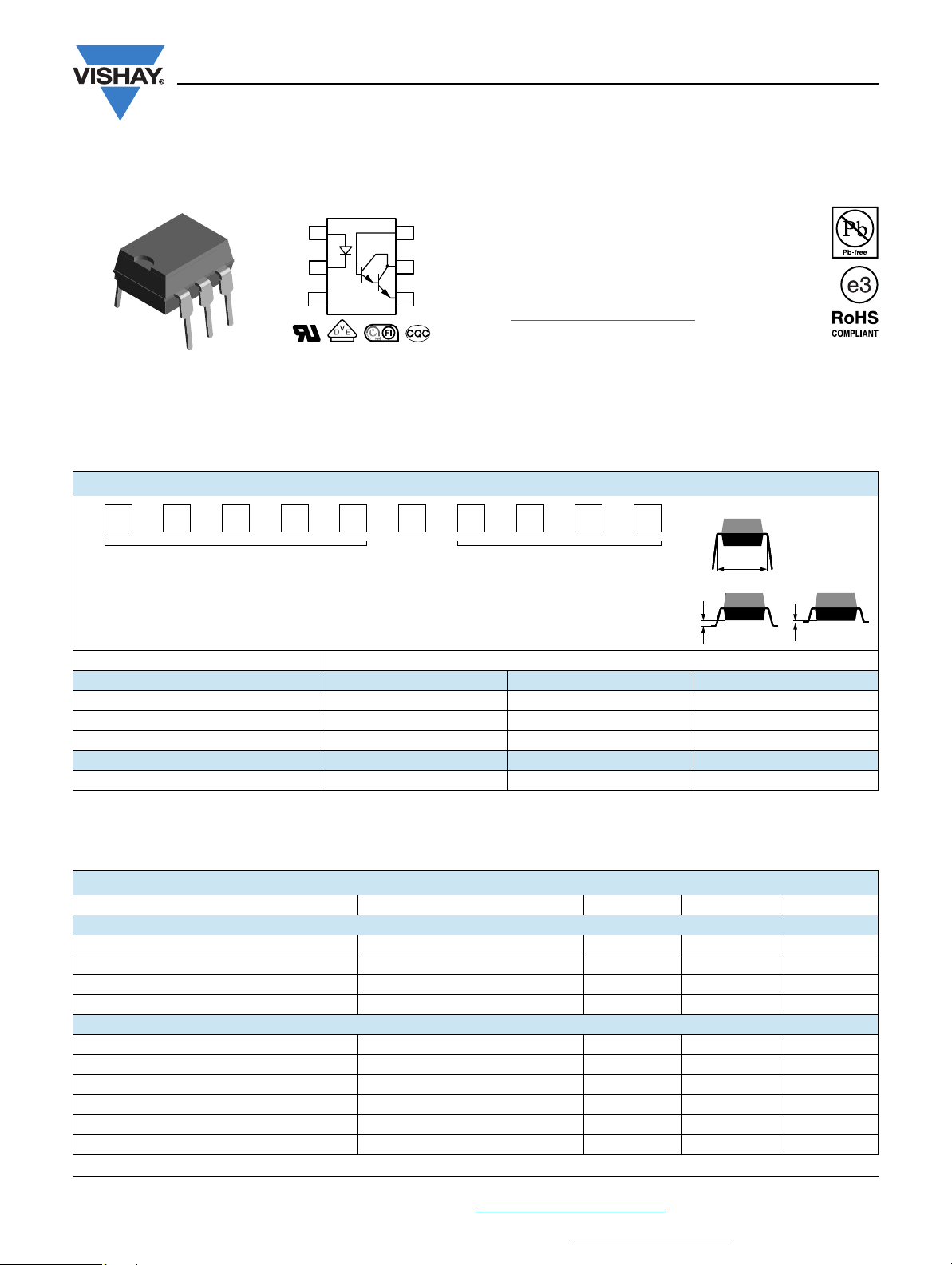

H11B1, H11B2, H11B3
www.vishay.com
Vishay Semiconductors
Rev. 1.7, 19-Oct-12
1
Document Number: 83609
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Optocoupler, Photodarlington Output, High Gain,
with Base Connection
DESCRIPTION
The H11B1, H11B2, H11B3 are industry standard
optocouplers, consisting of a gallium arsenide infrared LED
and a silicon photodarlington.
FEATURES
• Isolation test voltage: 5300 V
RMS
• Coupling capacitance, 0.5 pF
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
AGENCY APPROVALS
• UL1577, file no. E52744 system code J
• DIN EN 60747-5-5 (VDE 0884-5) available with option 1
• FIMKO EN60065, EN60950-1
• CQC: GB8898
Notes
• Additional options may be possible, please contact sales office.
(1)
Also available in tubes, no “T” in the end.
1
2
3
6
5
4
B
C
E
A
C
NC
i179005
ORDERING INFORMATION
H11B#-X00#
PART NUMBER PACKAGE OPTION
AGENCY CERTIFIED/PACKAGE CTR (%)
UL, FIMKO, CQC > 500 > 200 > 100
DIP-6 H11B1 H11B2 H11B3
SMD-6, option 7 H11B1-X007T
(1)
--
SMD-6, option 9 H11B1-X009 H11B2-X009T
(1)
-
UL, FIMKO, CQC, VDE > 500 > 200 > 100
SMD-6, option 7 H11B1-X017 - -
ABSOLUTE MAXIMUM RATINGS (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
INPUT
Reverse voltage V
R
3V
Forward continuous current I
F
60 mA
Power dissipation P
diss
100 mW
Derate linearly from 25 °C 1.33 mW/°C
OUTPUT
Collector emitter breakdown voltage BV
CEO
25 V
Emitter collector breakdown voltage BV
ECO
7V
Collector base breakdown voltage BV
CBO
30 V
Collector current (continuous) I
C
100 mA
Power dissipation P
diss
150 mW
Derate linearly from 25 °C 2mW/°C
7.62 mm
DIP
> 0.1 mm
Option 9
> 0.7 mm
Option 7
