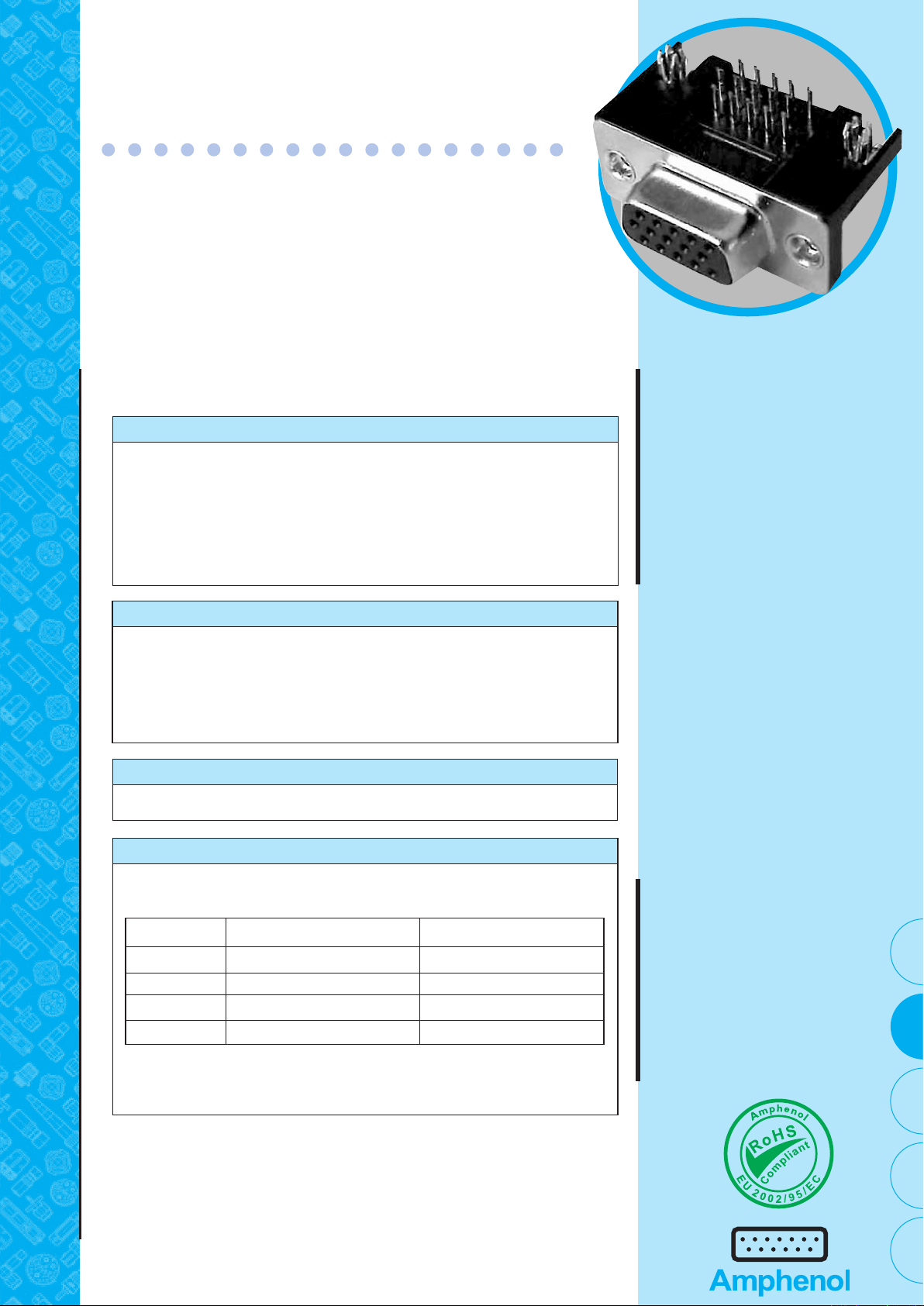

MAIN CHARACTERISTICS
DESCRIPTIONAPPLICATIONS
D-Sub connectors - Stamped and Formed Contacts
HD / E19
Amphenol’s high density
D-Sub connectors complement
Amphenol’s extensive D-Sub
connector line. This line offers many
superior features, high performance
level and low installation cost.
The decreased contact spacing
accommodates greater signal
density in comparison to conventional
D-Sub connectors.
• Industrial
• Telecom
• Any industry standard
I / O connections
Economical
right angle PCB
Economical
right angle PCB
RIGHT ANGLE
HIGH DENSITY CONNECTORS
Mechanical Data
Mating and unmating force
Unit: kg (lb)
Standard plating thickness • gold flash
• 0.4µm (15µ”) gold
• 0.76µm (30µ”) gold
No. of Cts Mate (max) Unmate (min)
15 3.81 (8.42) 0.52 (1.14)
26 5.95 (13.16) 1.05 (2.32)
44 9.26 (20.46) 1.37 (3.02)
62 13.48 (29.78) 1.76 (3.88)
Materials and Platings
Shells Steel with nickel plating
Body Glass filled thermoplastic, UL 94V-0
Contacts
Copper alloy, selective gold plating
Rear insert Brass with nickel plating
Screwlock Brass with nickel plating
Grounding clip Copper alloy with tin plating
Electrical Data
Current rating 5A
Voltage rating 600V AC/rms 50Hz
Withstanding voltage 1000V AC/rms 50HZ for one minute
Insulation resistance 5000MΩ
Contact resistance 10mΩ Max.
Climatic Data
Operating temperature -55°C to +125°C
Specifications
• Connectors according to: MIL C24308
