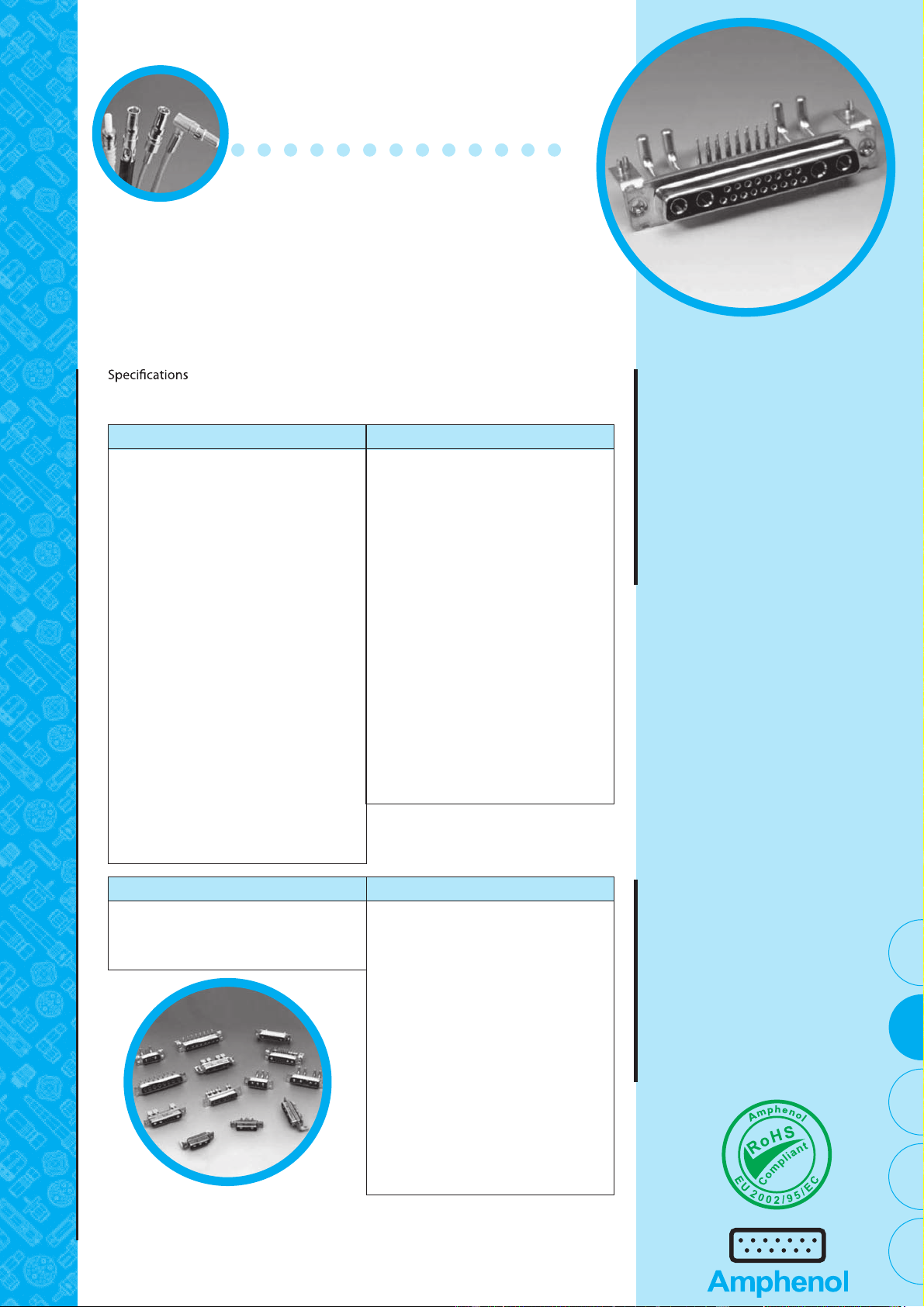

TW
CONTENT
DESCRIPTIONAPPLICATIONS
Hybrid D’Sub series
TW / E1
Amphenol D’Sub TW Hybrid Series permits
a mix of contacts including signal, power,
shielded, high voltage and fiber optics in the
same housing with different contacts
arrangements.
This economic series was first developed from
our military series, and has improved features:
- new contacts
- new high temperature black thermoplastic insert
- PCB configurations come preloaded with
fixed contacts and brackets.
These connectors are supplied with screw
machined contacts fixed in the insulator.
A complete range of housings are also
available for cable application.
• Commercial
• Medical
• Industrial
• Telecom
• Any application requiring
optimization of space
A full series of
arrangements
compatible with
reflow process
• Connectors according to: MIL C24308 - NFC93425 - HE507
Materials and plating
Shells Steel-Tin plating
Insulators High temperature black thermoplastic
Signal contacts Female: machined bronze
Material Male: machined brass
Plating finish 15µ" Au over 79µ" Ni min.
Or 30µ" Au over 79µ" Ni min.
Shielded contacts Female: machined bronze
Material Male: machined brass
Plating
Inner conductor 15µ" Au or 30µ" Au over 79µ" Ni
Outer ring Flash Au over 79µ" Ni
Terminations Tinned
Except solder cup and crimp terminations gold flash
Power contacts Female: machined bronze
Material Male: machined brass
Plating
Contacts 15µ" Au or 30µ" Au over 79µ" Ni
Terminations Tinned
Except solder cup and crimp terminations gold flash
Brackets Steel-Tin plating
Front jackscrews Brass-Tin plating
Rear clinch nuts Brass-Tin plating
Boardlocks Bronze-Tin plating
Stand-off Brass-Tin plating
Electrical Data
Current rating
Signal contacts 7.5 A. with 10 A. peak
Power contacts
PCB terminations 10 to 40 A.
Solder cup terminations 10 to 40 A.
Crimp terminations 10 to 40 A.
Shielded contacts 0.5 A.
Voltage rating
Signal and power contacts 300 V.R.M.S. at 50 Hz
Shielded contacts 150 V.R.M.S. at 50 Hz
Shielded contacts
Frequency range 0-1 GHz
Attenuation 0.2dB
V. S. W. R. 1.4(+0.04/GHz)
Characteristic impedance 50 Ohms
Dielectric withstanding
voltage 1000 V.R.M.S. at 50Hz
Insulation resistance 5000 M Ohms at 500 VDC
Contact resistance 5m Ohms
Shell resistance 1m Ohm
(electrical grounding)
Climatic Data
Operating temperature -55˚C + 155˚C
081 ka
ep htiw( ˚C)
Damp heat 56 days (40˚C - 95% HR)
Salt spray 48 hours
Mechanical data
Shells With or without dimples
Contact retention force in dielectric material > 40N
Maximum mating and unmating force
With dimples E size = 70 N
A size = 80 N
B size = 100 N
C size = 150 N
D size = 180 N
Without dimples E size = 30 N
A size = 50 N
B size = 80 N
C size = 120 N
D size = 160 N
Compatible with process
IR - Air convectioned 260˚ for 20 s.
Resistance to solder iron heat 260˚C for 30 s.
Mating cycles 200 (class ll) or 500 (class l)
