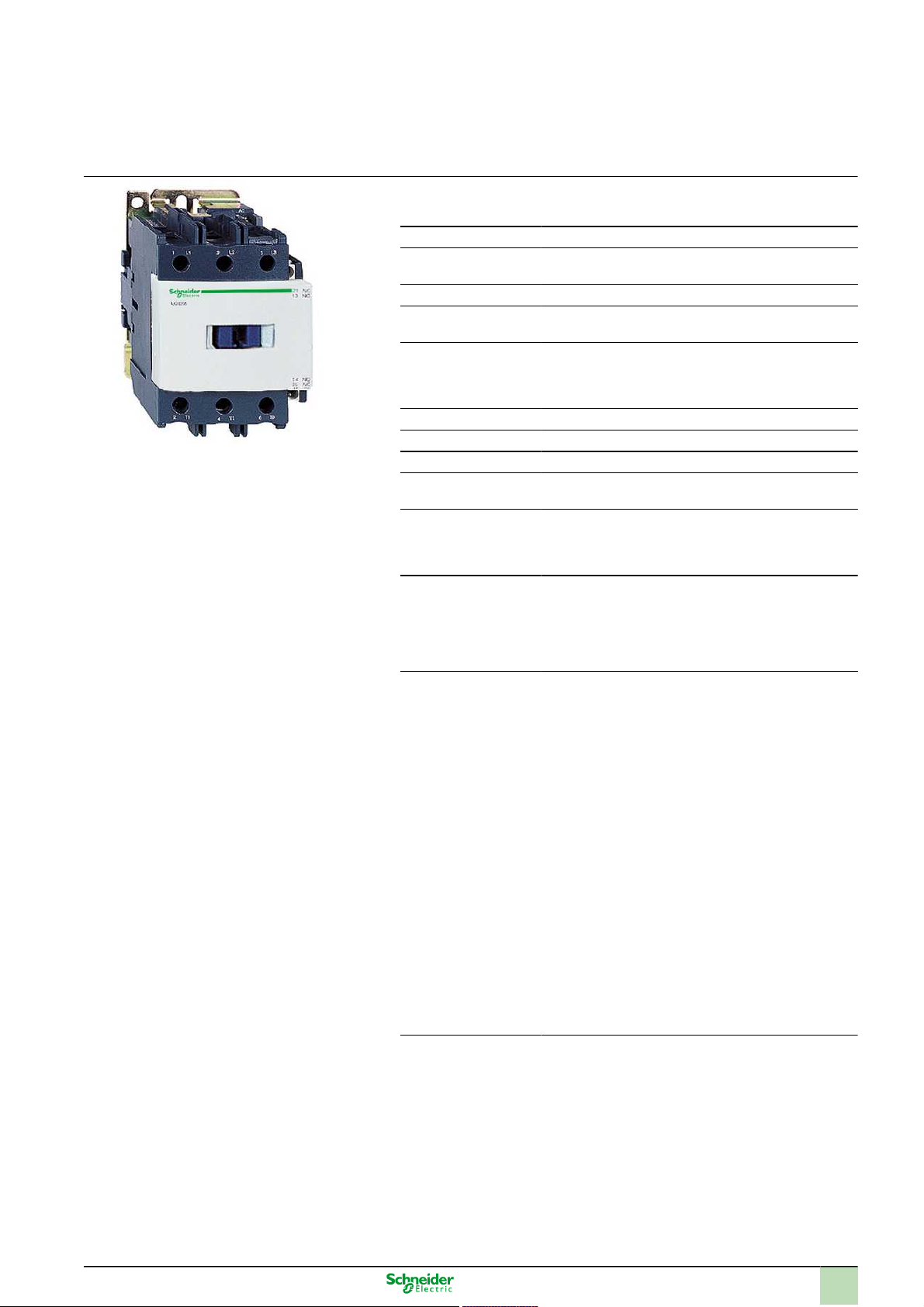

Product data sheet
Characteristics
LC1D80M7
contactor TeSys LC1-D - 3 poles - AC-3 440V
80 A - coil 220 V AC
Main
Range of product TeSys D
Product or component
type
Contactor
Device short name LC1D
Contactor application Motor control
Resistive load
Utilisation category AC-1
AC-2
AC-3
AC-4
Control circuit type AC
Coil type AC 50/60 Hz
Poles description 3P
Pole contact composi-
tion
3 NO
[Ie] rated operational
current
125 A (<= 60 °C) at <= 440 V AC AC-1 for power cir-
cuit
80 A (<= 60 °C) at <= 440 V AC AC-3 for power cir-
cuit
Motor power kW 22 kW at 220...230 V AC 50/60 Hz
37 kW at 380...400 V AC 50/60 Hz
45 kW at 1000 V AC 50/60 Hz
45 kW at 660...690 V AC 50/60 Hz
55 kW at 500 V AC 50/60 Hz
45 kW at 415...440 V AC 50/60 Hz
Motor power hp 15 hp at 230/240 V AC 60 Hz for 1P motors con-
forming to CSA
15 hp at 230/240 V AC 60 Hz for 1P motors con-
forming to UL
20 hp at 200/208 V AC 60 Hz for 3P motors con-
forming to CSA
20 hp at 200/208 V AC 60 Hz for 3P motors con-
forming to UL
25 hp at 230/240 V AC 60 Hz for 3P motors con-
forming to CSA
25 hp at 230/240 V AC 60 Hz for 3P motors con-
forming to UL
60 hp at 460/480 V AC 60 Hz for 3P motors con-
forming to CSA
60 hp at 460/480 V AC 60 Hz for 3P motors con-
forming to UL
60 hp at 575/600 V AC 60 Hz for 3P motors con-
forming to CSA
60 hp at 575/600 V AC 60 Hz for 3P motors con-
forming to UL
7.5 hp at 115 V AC 60 Hz for 1P motors conforming
to CSA
7.5 hp at 115 V AC 60 Hz for 1P motors conforming
to UL
