2/18
Schneider Electric
2
2.2
Contactors
Contactors and reversing contactors
types LC
p
-K and LP
p
-K
Environment
Conforming to standards
IEC/EN 60947-1, IEC/EN 60947-4-1, NF C 63-110,
VDE 0660
Approvals LC
pp
pp
and LP
pp
pp
-K06 to K12
UL, CSA, DEMKO, NEMKO, SEMKO, FI

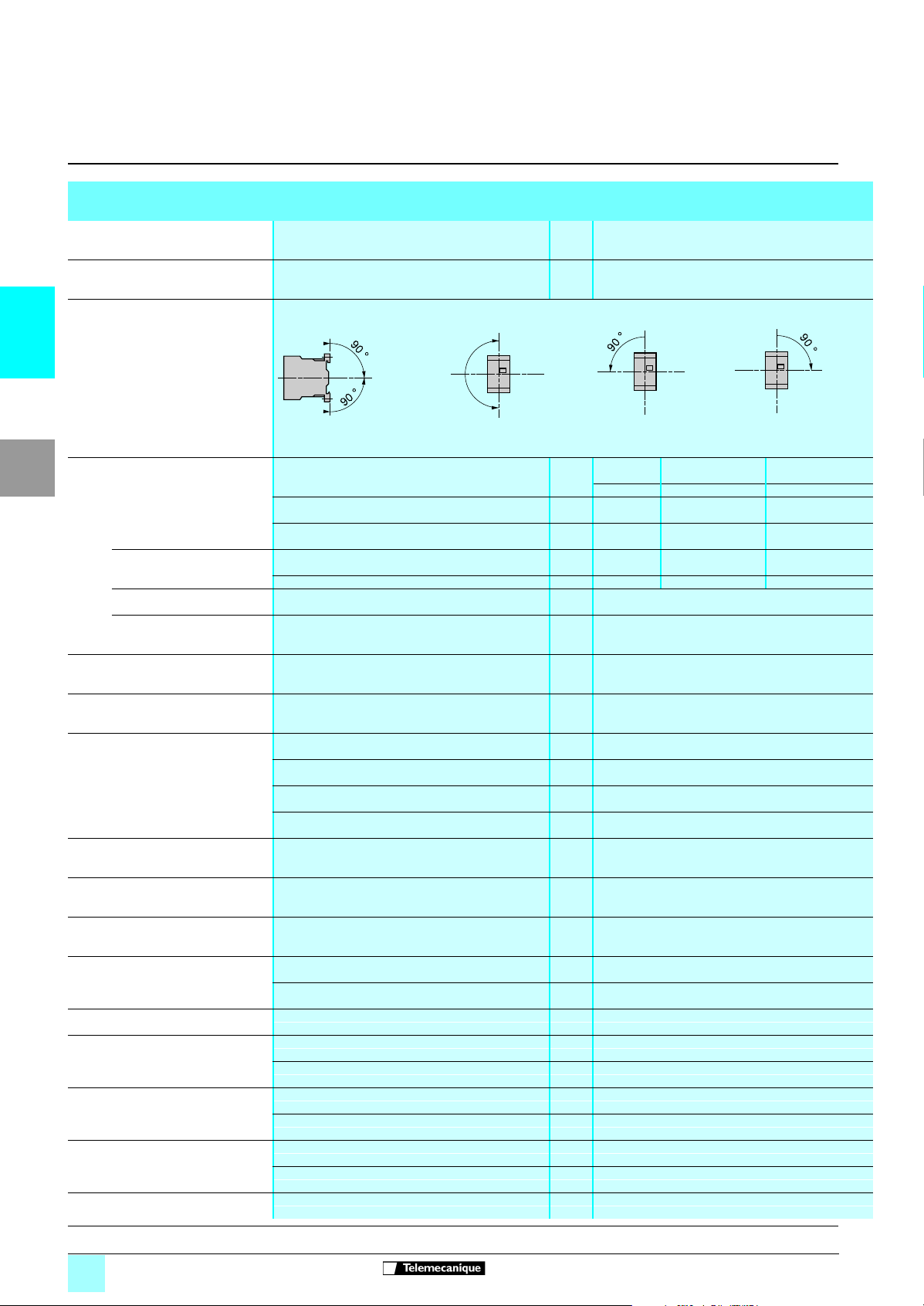

Operating positions Vertical axis Horizontal axis
Without derating Without derating Possible positions for
LC
p
-K
only.
Contactor energisation voltage: 0.85 Uc
Max to
Cabling
Min Max IEC/EN 60947
Screw clamp connections Solid conductor
mm
2
1 x 1.5 2 x 4 1 x 4 + 1 x 2.5
Flexible cable without cable end
mm
2
1 x 0.75 2 x 4 2 x 2.5
Flexible cable with cable end
mm
2
1 x 0.34 1 x 1.5 + 1 x 2.5 1 x 1.5 + 1 x 2.5
Spring terminal connections Solid conductor
mm
2
1 x 0.75 1 x 1.5 2 x 1.5
Flexible conductor without cable end
mm
2
1 x 0.75 1 x 1.5 2 x 1.5
Faston connectors Clip
mm
2 x 2.8 or 1 x 6.35
Solder pins for With locating device between power
printed circuit board and control circuits 4 mm x 35 microns
Tightening torque
Philips head n˚ 2 and Ø 6
N.m
0.8…1.3
Terminal referencing
Conforming to standards EN 50005 and EN 50012 Up to 5 contacts
Rated insulation voltage
(Ui) Conforming to IEC/EN 60947-4-1
V
690
Conforming to VDE 0110 gr C
V
750
Conforming to NF C 20-040
V
690
Conforming to CSA 22-2 n˚ 14, UL 508
V
600
Rated impulse withstand voltage
(Uimp)
kV
8
Protective treatment
Conforming to IEC 68 (DIN 50016) “TC” (Klimafest, Climateproof)
Degree of protection
Conforming to VDE 0106 Protection against direct finger contact
Ambient air temperature
Storage
˚C
- 50…+ 80
around the device
Operation
˚C
- 25…+ 50
Maximum operating altitude
Without derating
m
2000
Vibration resistance
Contactor open 2 gn
5 ... 300 Hz
Contactor closed 4 gn
Flame resistance
Conforming to UL 94 Self-extinguishing materials V1
Conforming to NF F 16-101 and 16-102 Conforming to requirement 2
Shock resistance
Contactor open 10 g
(1/2 sine wave, 11 ms)
Contactor closed 15 g
Safe circuit separation
Conforming to VDE 0106 and IEC 536 VLSV (Very Low Safety voltage), up to 400 V
Characteristics
Selection:
pages 1/12 to 1/35
References:
pages 2/22 to 2/35
Dimensions:
pages 2/40 and 2/42
Schemes:
pages 2/41 and 2/43
°
1
8
0
°
22005_Ver8.00-EN.backup.fm Page 18 Thursday, October 25, 2001 4:59 PM
