The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Jul 5, 2013
1

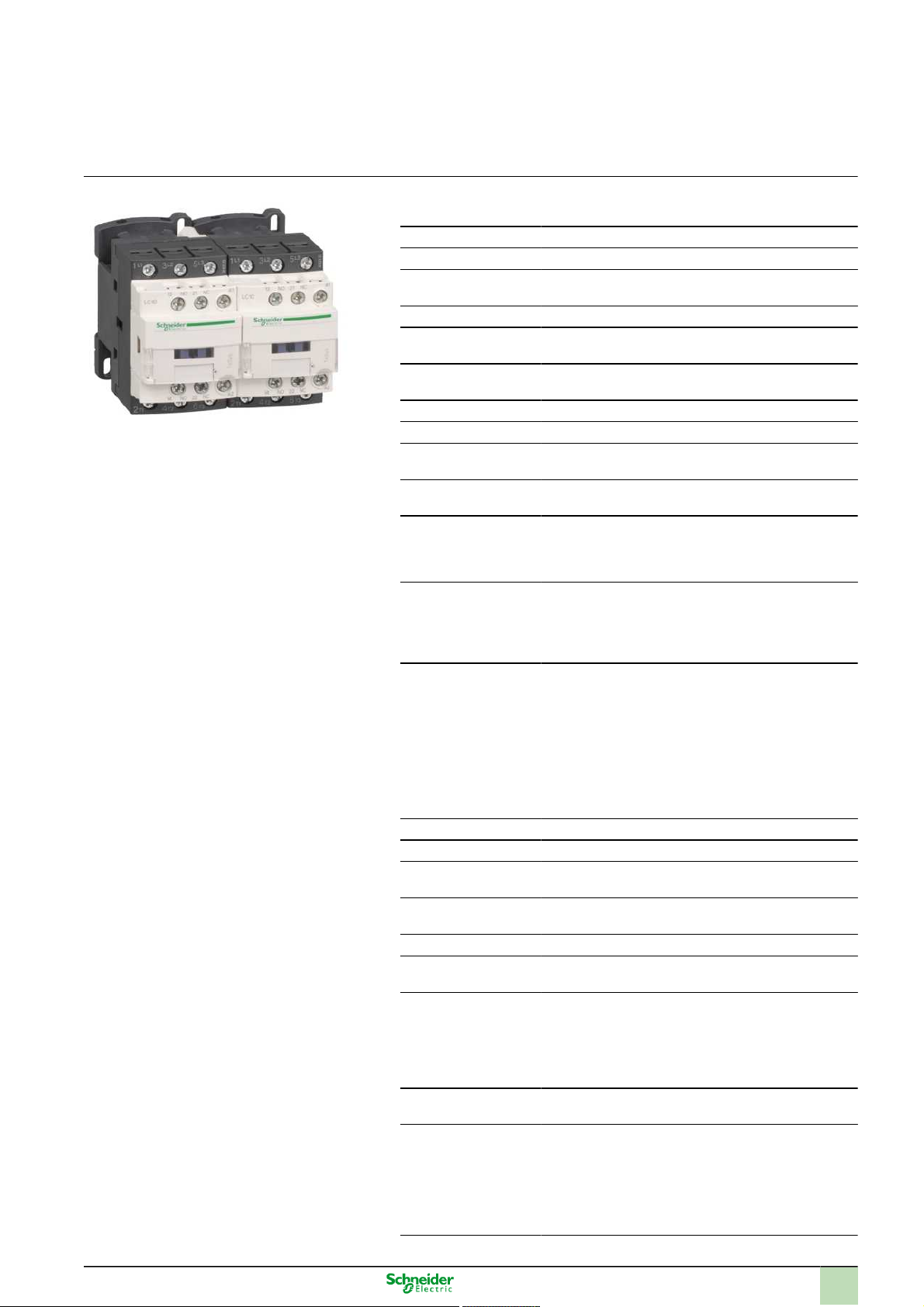

Product data sheet
Characteristics
LC2D32F7
TeSys D reversing contactor - 3P(3 NO) - AC-3
- <= 440 V 32 A - 110 V AC coil
Main
Commercial Status Commercialised
Range of product TeSys D
Product or component
type
Reversing contactor
Device short name LC2D
Contactor application Motor control
Resistive load
Utilisation category AC-1
AC-3
Device presentation Preassembled with reversing power busbar
Poles description 3P
Power pole contact
composition
3 NO
[Ue] rated operational
voltage
<= 300 V DC for power circuit
<= 690 V AC 25...400 Hz for power circuit
[Ie] rated operational
current
50 A (<= 60 °C) at <= 440 V AC AC-1 for power cir-
cuit
32 A (<= 60 °C) at <= 440 V AC AC-3 for power cir-
cuit
Motor power kW 18.5 kW at 660...690 V AC 50/60 Hz
18.5 kW at 500 V AC 50/60 Hz
15 kW at 415...440 V AC 50/60 Hz
15 kW at 380...400 V AC 50/60 Hz
7.5 kW at 220...230 V AC 50/60 Hz
Motor power HP (UL /
CSA)
30 hp at 575/600 V AC 50/60 Hz for 3 phases mo-
tors
20 hp at 460/480 V AC 50/60 Hz for 3 phases mo-
tors
10 hp at 230/240 V AC 50/60 Hz for 3 phases mo-
tors
7.5 hp at 200/208 V AC 50/60 Hz for 3 phases mo-
tors
5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
2 hp at 115 V AC 50/60 Hz for 1 phase motors
Control circuit type AC 50/60 Hz
Control circuit voltage 110 V AC 50/60 Hz
Auxiliary contact com-
position
1 NO + 1 NC
[Uimp] rated impulse
withstand voltage
6 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free
air thermal current
50 A at <= 60 °C for power circuit
10 A at <= 60 °C for signalling circuit
Irms rated making ca-
pacity
550 A at 440 V for power circuit conforming to IEC
60947
250 A DC for signalling circuit conforming to IEC
60947-5-1
140 A AC for signalling circuit conforming to IEC
60947-5-1
Rated breaking capac-
ity
550 A at 440 V for power circuit conforming to IEC
60947
[Icw] rated short-time
withstand current
430 A <= 40 °C 1 s power circuit
260 A <= 40 °C 10 s power circuit
138 A <= 40 °C 1 min power circuit
60 A <= 40 °C 10 min power circuit
140 A 100 ms signalling circuit
120 A 500 ms signalling circuit
100 A 1 s signalling circuit
