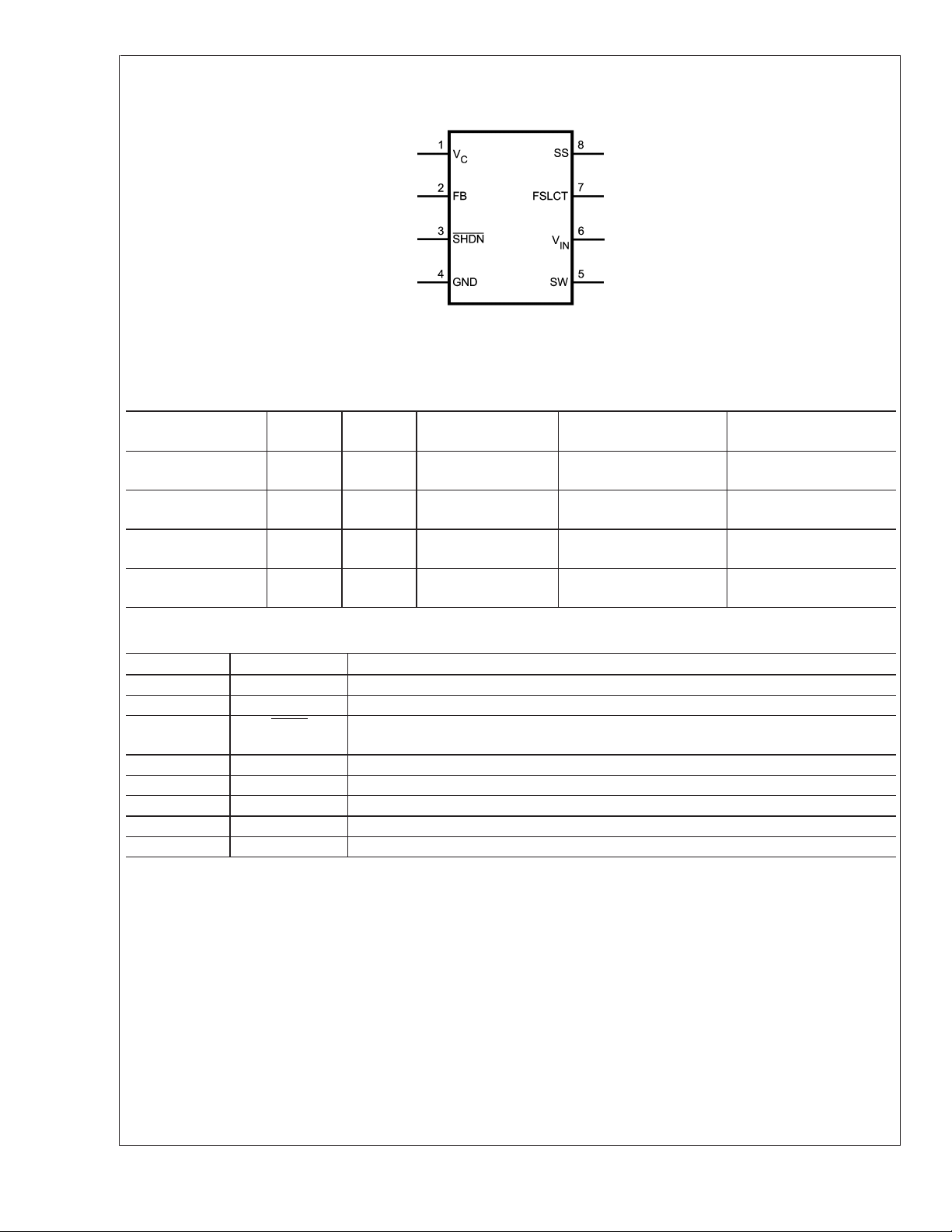

Connection Diagram
Top View
20097604
8-Lead Plastic MSOP
NS Package Number MUA08A
Ordering Information
Order Number Spec. Package
Type
NSC Package
Drawing
Supplied As Package Top Mark
LM3224MM-ADJ MSOP-8 MUA08A 1000 Units, Tape and
Reel
SEKB
LM3224MMX-ADJ MSOP-8 MUA08A 3500 Units, Tape and
Reel
SEKB
LM3224MM-ADJ NOPB MSOP-8 MUA08A 1000 Units, Tape and
Reel
SEKB
LM3224MMX-ADJ NOPB MSOP-8 MUA08A 3500 Units, Tape and
Reel
SEKB
Pin Description
Pin Name Function
1V
C
Compensation network connection. Connected to the output of the voltage error amplifier.
2 FB Output voltage feedback input.
3 SHDN
Shutdown control input, active low. This pin has an internal pulldown resistor so the
default condition is off. The pin must be pulled high to turn on the device.
4 GND Analog and power ground.
5 SW Power switch input. Switch connected between SW pin and GND pin.
6V
IN
Analog power input.
7 FSLCT Switching frequency select input. V
IN
= 1.25MHz. Ground = 615kHz.
8 SS Soft-start Pin.
LM3224
www.national.com 2
