Electrical Characteristics (Continued)
Note 5: The human body model is a 100 pF capacitor discharged through a 1.5kΩ resistor into each pin. The machine model is a 200pF capacitor discharged
directly into each pin.
Note 6: All limits guaranteed at room temperature (standard typeface) and at temperature extremes (bold typeface). All room temperature limits are 100%
production tested. All limits at temperature extremes are guaranteed via correlation using standard Statistical Quality Control (SQC) methods. All limits are used to
calculate Average Outgoing Quality Level (AOQL).
Note 7: Typical numbers are at 25˚C and represent the most likely norm.
Note 8: Duty cycle affects current limit due to ramp generator.
Note 9: Current limit at 0% duty cycle. See TYPICAL PERFORMANCE section for Switch Current Limit vs. V
IN
Note 10: Bias current flows into FB pin.

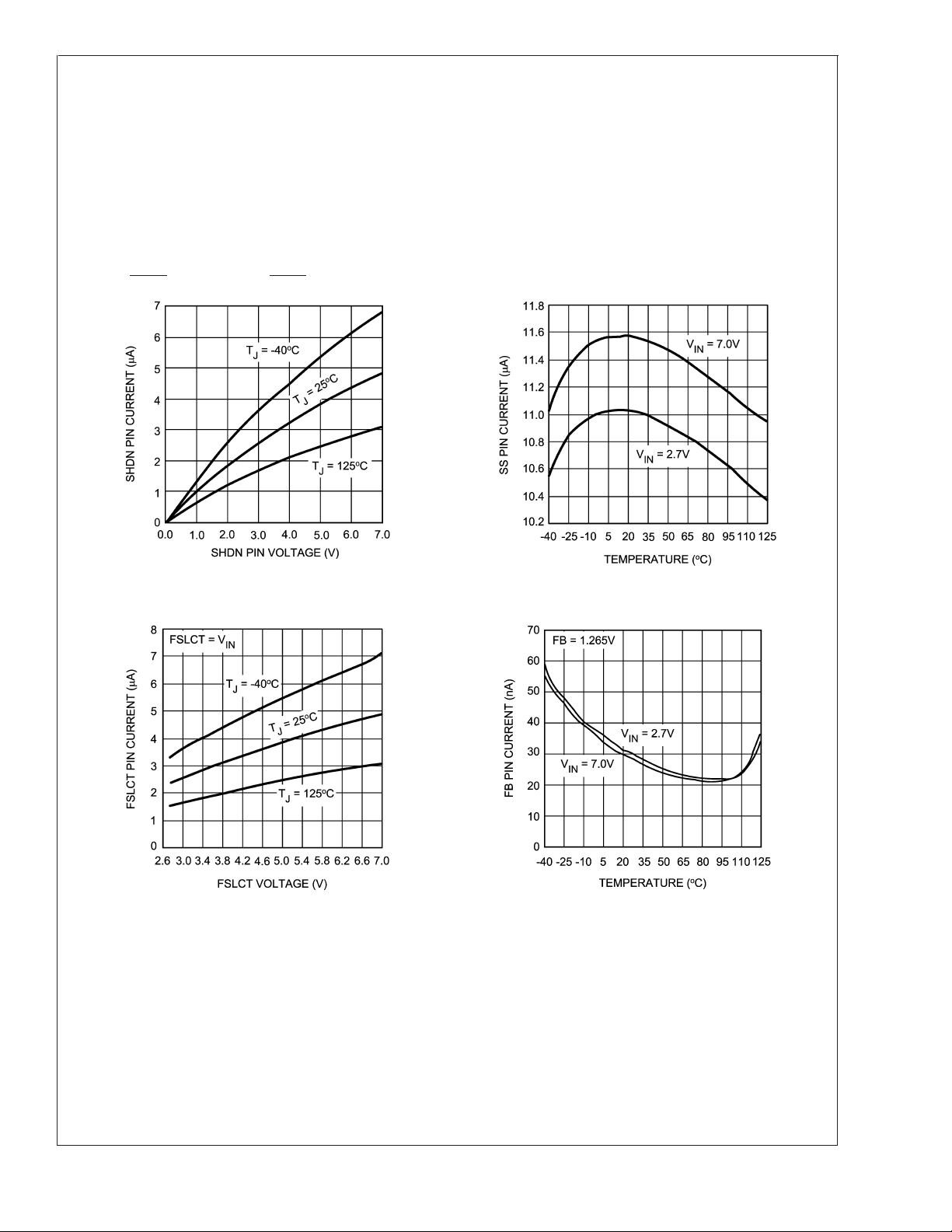

Typical Performance Characteristics
SHDN Pin Current vs. SHDN Pin Voltage SS Pin Current vs. Temperature
20097616
20097617
FSLCT Pin Current vs. FSLCT Pin Voltage FB Pin Current vs. Temperature
20097618
20097619
LM3224
www.national.com5
