LM6181
100 mA, 100 MHz Current Feedback Amplifier
General Description
The LM6181 current-feedback amplifier offers an unparal-
leled combination of bandwidth, slew-rate, and output cur-
rent. The amplifier can directly drive up to 100 pF capacitive
loads without oscillating and a 10V signal into a 50Ω or 75Ω
back-terminated coax cable system over the full industrial
temperature range. This represents a radical enhancement
in output drive capability for an 8-pin DIP high-speed ampli-
fier making it ideal for video applications.
Built on National’s advanced high-speed VIP
™
II (Vertically
Integrated PNP) process, the LM6181 employs current-
feedback providing bandwidth that does not vary dramati-
cally with gain; 100 MHz at A
V
= −1, 60 MHz at A
V
= −10.
With a slew rate of 2000V/µs, 2nd harmonic distortion of −50
dBc at 10 MHz and settling time of 50 ns (0.1%) the LM6181
dynamic performance makes it ideal for data acquisition,
high speed ATE, and precision pulse amplifier applications.
Features
(Typical unless otherwise noted)
n Slew rate: 2000 V/µs
n Settling time (0.1%): 50 ns
n Characterized for supply ranges:
±
5V and
±
15V
n Low differential gain and phase error: 0.05%, 0.04˚
n High output drive:
±
10V into 100Ω
n Guaranteed bandwidth and slew rate
n Improved performance over EL2020, OP160, AD844,
LT1223 and HA5004
Applications
n Coax cable driver
n Video amplifier
n Flash ADC buffer
n High frequency filter
n Scanner and Imaging systems

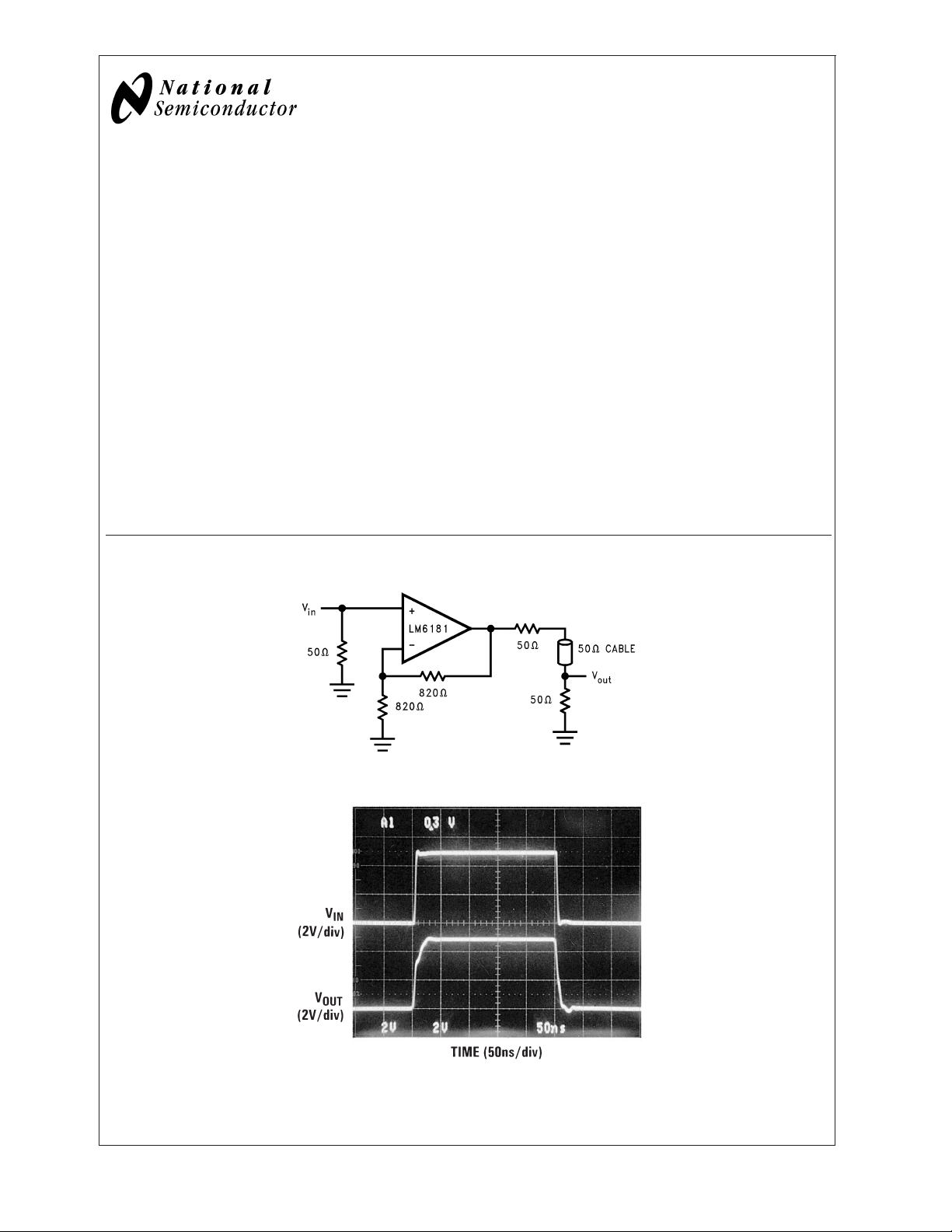

Typical Application
01132801
Cable Driver
01132802
VIP
™
is a registered trademark of National Semiconductor Corporation.
May 1998
LM6181 100 mA, 100 MHz Current Feedback Amplifier
© 2004 National Semiconductor Corporation DS011328 www.national.com
