LM7171
Very High Speed, High Output Current, Voltage
Feedback Amplifier
General Description
The LM7171 is a high speed voltage feedback amplifier that
has the slewing characteristic of a current feedback ampli-
fier; yet it can be used in all traditional voltage feedback am-
plifier configurations. The LM7171 is stable for gains as low
as +2 or −1. It provides a very high slew rate at 4100V/µs
and a wide unity-gain bandwidth of 200 MHz while consum-
ing only 6.5 mA of supply current. It is ideal for video and
high speed signal processing applications such as HDSL
and pulse amplifiers. With 100 mA output current, the
LM7171 can be used for video distribution, as a transformer
driver or as a laser diode driver.
Operation on
±
15V power supplies allows for large signal
swings and provides greater dynamic range and
signal-to-noise ratio. The LM7171 offers low SFDR and
THD, ideal forADC/DAC systems. In addition, the LM7171 is
specified for
±
5V operation for portable applications.
The LM7171 is built on National’s advanced VIP
™
III (Verti-
cally integrated PNP) complementary bipolar process.
Features
(Typical Unless Otherwise Noted)
n Easy-To-Use Voltage Feedback Topology
n Very High Slew Rate: 4100V/µs
n Wide Unity-Gain Bandwidth: 200 MHz
n −3 dB Frequency
@
A
V
=
+2: 220 MHz
n Low Supply Current: 6.5 mA
n High Open Loop Gain: 85 dB
n High Output Current: 100 mA
n Differential Gain and Phase: 0.01
%
, 0.02˚
n Specified for
±
15V and
±
5V Operation
Applications
n HDSL and ADSL Drivers
n Multimedia Broadcast Systems
n Professional Video Cameras
n Video Amplifiers
n Copiers/Scanners/Fax
n HDTV Amplifiers
n Pulse Amplifiers and Peak Detectors
n CATV/Fiber Optics Signal Processing

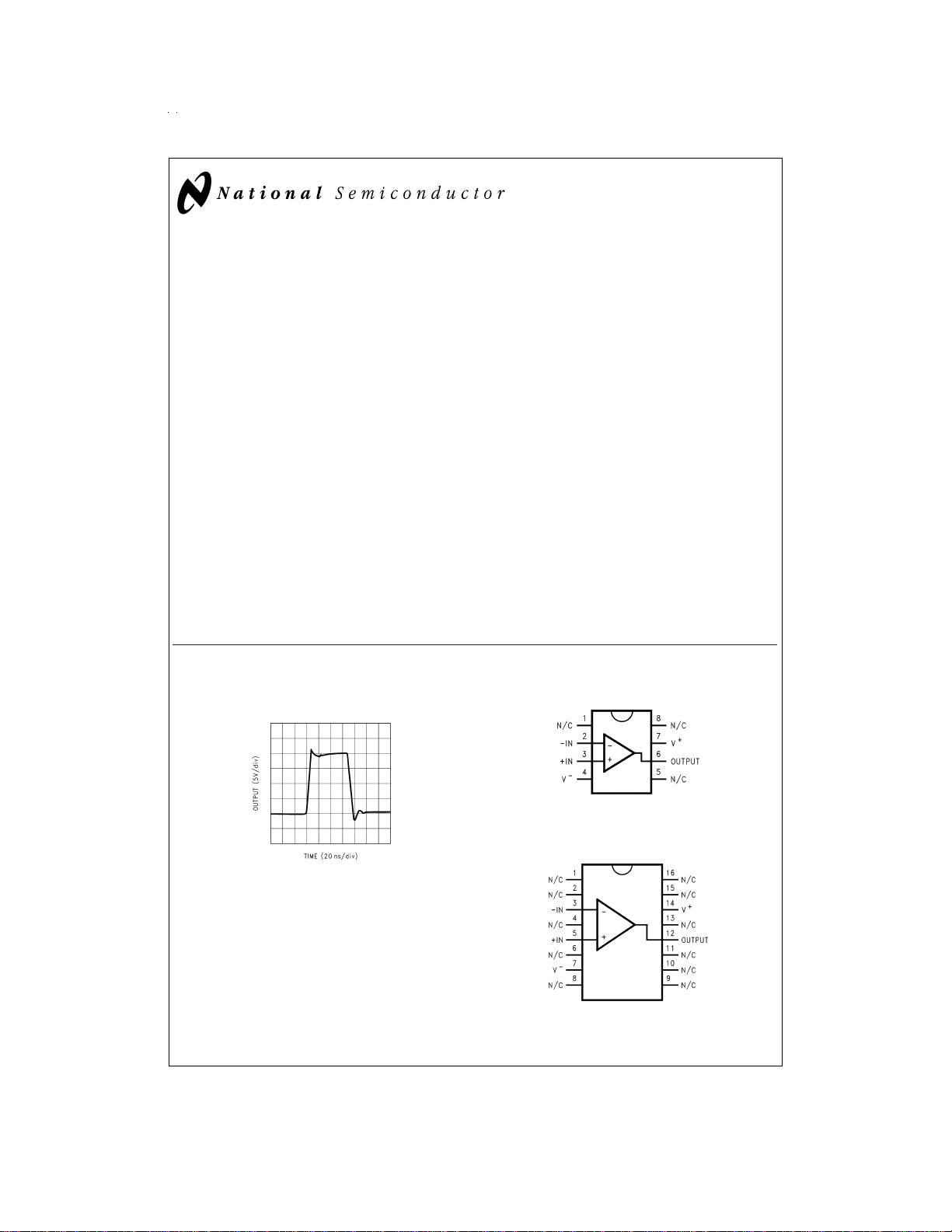

Typical Performance Connection Diagrams
VIP
™
is a trademark of National Semiconductor Corporation.
Large Signal Pulse Response
A
V
=
+2, V
S
=
±
15V
DS012385-1
8-Pin DIP/SO
DS012385-2
Top View
16-Pin Wide Body SO
DS012385-3
Top View
May 1999
LM7171 Very High Speed, High Output Current, Voltage Feedback Amplifier
© 1999 National Semiconductor Corporation DS012385 www.national.com
