LM136-5.0QML, LM136A-5.0QML
www.ti.com
SNVS352B –APRIL 2008–REVISED MARCH 2013
LM136A-5.0QML
LM136-5.0QML 5.0V Reference Diode
Check for Samples: LM136-5.0QML, LM136A-5.0QML
1
FEATURES
DESCRIPTION
The LM136A-5.0QML/LM136-5.0QML integrated
2
• Adjustable 4V to 6V
circuits are precision 5.0V shunt regulator diodes.
• Low Temperature Coefficient
These monolithic IC voltage references operate as a
• Wide Operating Current of 600 μA to 10 mA
low temperature coefficient 5.0V zener with 0.6Ω
dynamic impedance. A third terminal on the LM136-
• 0.6Ω Dynamic Impedance
5.0 allows the reference voltage and temperature
• Ensured Temperature Stability
coefficient to be trimmed easily.
• Easily Trimmed for Minimum Temperature Drift
The LM136-5.0 series is useful as a precision 5.0V
• Fast Turn-On
low voltage reference for digital voltmeters, power
• Three Lead Transistor Package
supplies or op amp circuitry. The 5.0V makes it
convenient to obtain a stable reference from low
voltage supplies. Further, since the LM136-5.0
operates as a shunt regulator, it can be used as
either a positive or negative voltage reference.

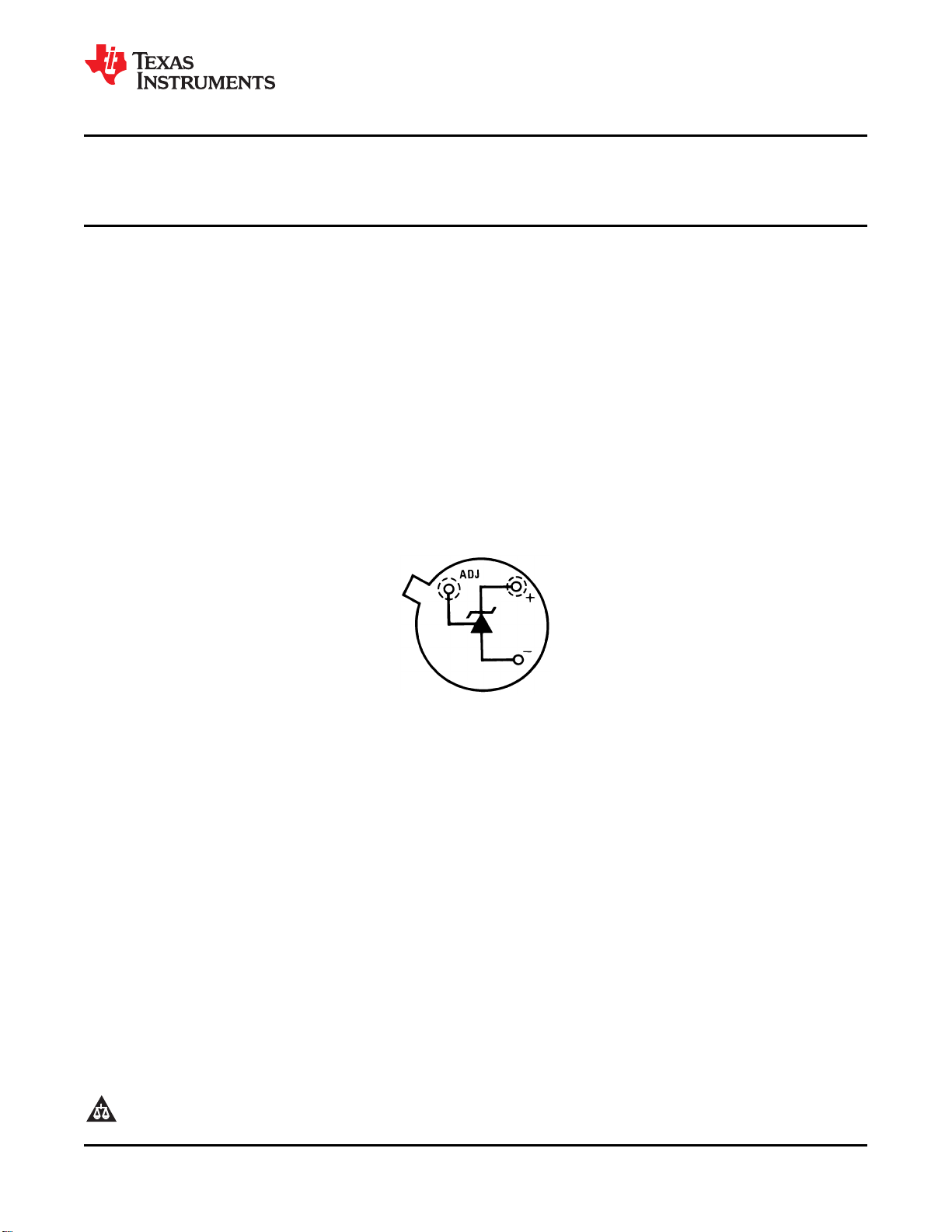

Connection Diagram
Figure 1. Bottom View
3-Lead TO
Metal Can Package
See NDV0003H Package
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 2008–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
