LMC6762
Dual MicroPower Rail-To-Rail Input CMOS Comparator
with Push-Pull Output
General Description
The LMC6762 is an ultra low power dual comparator with a
maximum supply current of 10 µA/comparator. It is designed
to operate over a wide range of supply voltages, from 2.7V to
15V. The LMC6762 has guaranteed specs at 2.7V to meet
the demands of 3V digital systems.
The LMC6762 has an input common-mode voltage range
which exceeds both supplies. This is a significant advantage
in low-voltage applications. The LMC6762 also features a
push-pull output that allows direct connections to logic de-
vices without a pull-up resistor.
A quiescent power consumption of 50 µW/amplifier
(
@
V
+
= 5V) makes the LMC6762 ideal for applications in
portable phones and hand-held electronics. The ultra-low
supply current is also independent of power supply voltage.
Guaranteed operation at 2.7V and a rail-to-rail performance
makes this device ideal for battery-powered applications.
Refer to the LMC6772 datasheet for an open-drain version
of this device.
Features
(Typical unless otherwise noted)
n Low power consumption (max): I
S
= 10 µA/comp
n Wide range of supply voltages: 2.7V to 15V
n Rail-to-rail input common mode voltage range
n Rail-to-rail output swing (Within 100 mV of the supplies,
@
V
+
= 2.7V, and I
LOAD
= 2.5 mA)
n Short circuit protection: 40 mA
n Propagation delay (
@
V
+
= 5V, 100 mV
overdrive): 4 µs
Applications
n Laptop computers
n Mobile phones
n Metering systems
n Hand-held electronics
n RC timers
n Alarm and monitoring circuits
n Window comparators, multivibrators

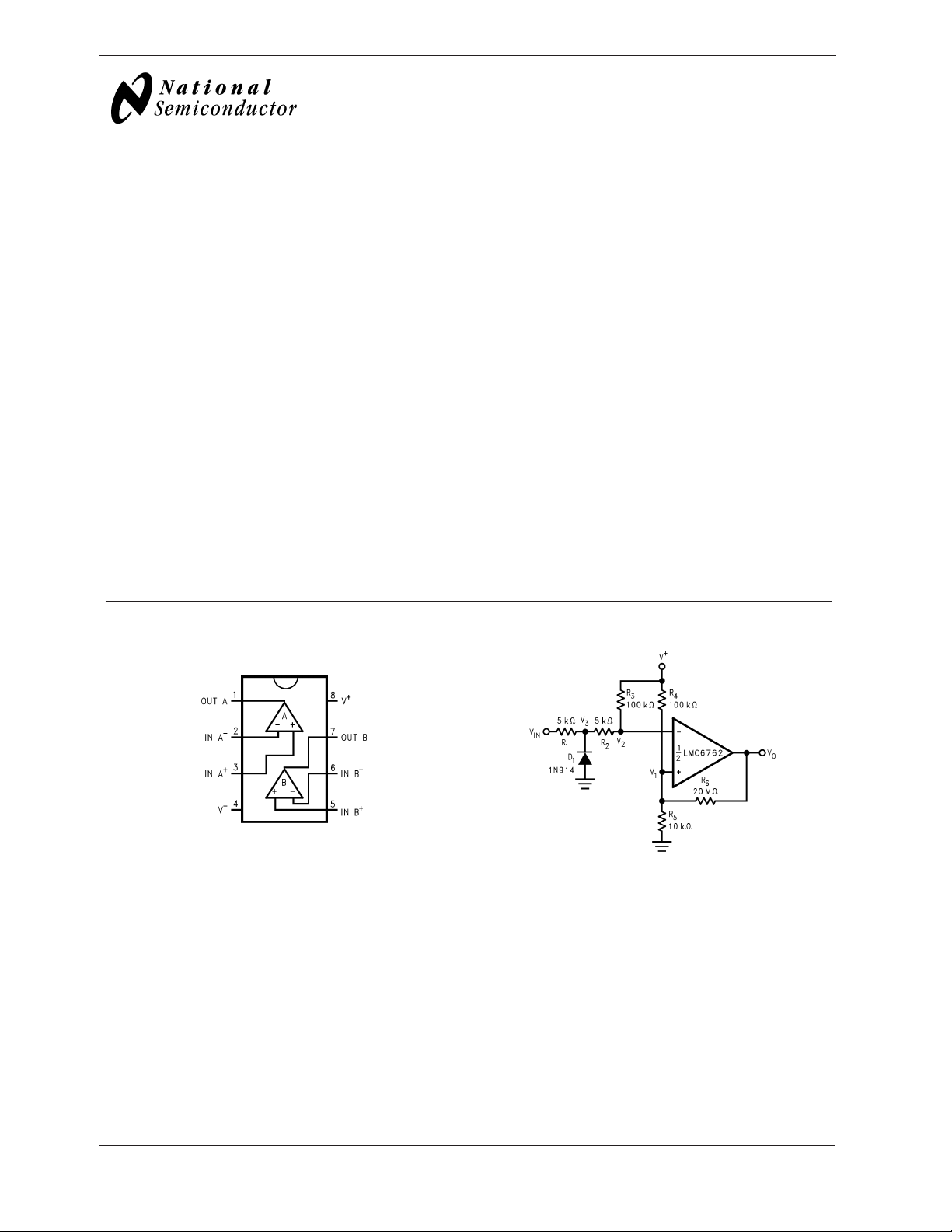

Connection Diagram
8-Pin DIP/SO
01232001
Top View
Typical Application
01232016
Zero Crossing Detector
August 2000
LMC6762 Dual MicroPower Rail-To-Rail Input CMOS Comparator with Push-Pull Output
© 2004 National Semiconductor Corporation DS012320 www.national.com
