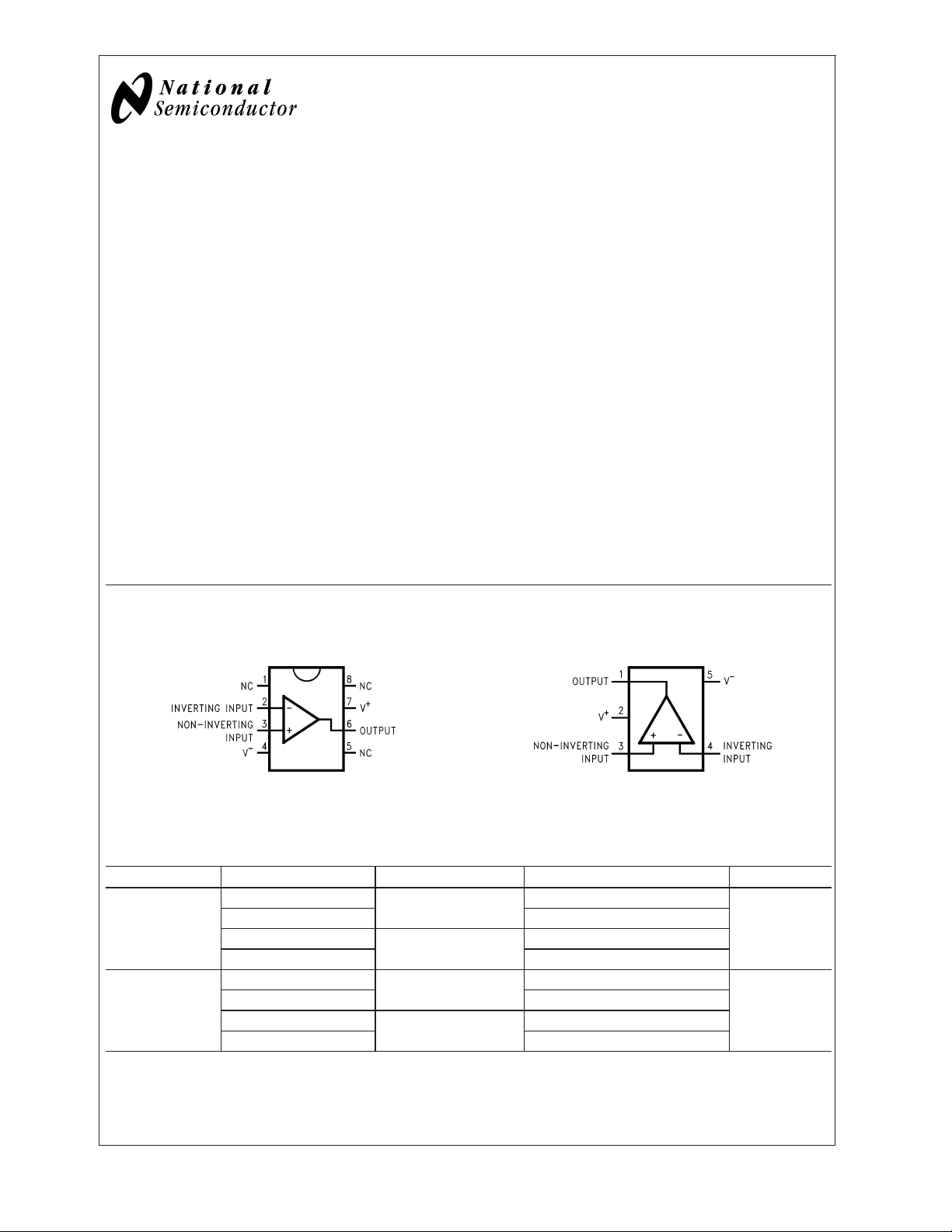

LMC7221
Tiny CMOS Comparator with Rail-To-Rail Input and Open
Drain Output
General Description
The LM7221 is a micropower CMOS comparator available in
the space saving 5-Pin SOT23 package. This makes this
comparator ideal for space and weight critical designs. The
LMC7221 is also available in the 8-Pin SOIC package. The
LMC7221 is supplied in two offset voltage grades, 5 mV and
15 mV.
The open drain output can be pulled up with a resistor to a
voltage which can be higher or lower than the supply
voltage — this makes the part useful for mixed voltage sys-
tems.
For a tiny comparator with a push-pull output, please see the
LMC7211 datasheet.
Features
n Tiny 5-Pin SOT23 package saves space
n Package is less than 1.43 mm thick
n Guaranteed specs at 2.7V, 5V, 15V supplies
n Typical supply current 7 µA at 5V
n Response time of 4 µs at 5V
n LMC7221 — open drain output
n Input common-mode range beyond V
−
and V
+
n Low input current
Applications
n Mixed voltage battery powered products
n Notebooks and PDAs
n PCMCIA cards
n Mobile communications
n Alarm and security circuits
n Driving low current LEDs
n Direct sensor interface
Connection Diagrams
8-Pin SOIC
01234601
Top View
5-Pin SOT23
01234602
Top View
Ordering Information
Package Part Number Package Marking Transport Media NSC Drawing
8-Pin SOIC
LMC7221AIM
LMC7221AIM
95 Units/Rail
M08A
LMC7221AIMX 2.5k Units Tape and Reel
LMC7221BIM
LMC7221BIM
95 Units/Rail
LMC7221BIMX 2.5k Units Tape and Reel
5-Pin SOT23
LMC7221AIM5
C01A
1k Units Tape and Reel
MF05A
LMC7221AIM5X 3k Units Tape and Reel
LMC7221BIM5
C01B
1k Units Tape and Reel
LMC7221BIM5X 3k Units Tape and Reel
September 2006
LMC7221 Tiny CMOS Comparator with Rail-To-Rail Input and Open Drain Output
© 2006 National Semiconductor Corporation DS012346 www.national.com
