LMC7215/LMC7225
Micro-Power, Rail-to-Rail CMOS Comparators with
Push-Pull/Open-Drain Outputs and TinyPak
™
Package
General Description
The LMC7215/LMC7225 are ultra low power comparators
with a maximum of 1 µA power supply current. They are
designed to operate over a wide range of supply voltages,
from 2V to 8V.
The LMC7215/LMC7225 have a greater than rail-to-rail com-
mon mode voltage range. This is a real advantage in single
supply applications.
The LMC7215 features a push-pull output stage. This fea-
ture allows operation with absolute minimum amount of
power consumption when driving any load.
The LMC7225 features an open drain output. By connecting
an external resistor, the output of the comparator can be
used as a level shifter to any desired voltage to as high as
15V.
The LMC7215/LMC7225 are designed for systems where
low power consumption is the critical parameter.
Guaranteed operation over the full supply voltage range of
2.7V to 5V and rail-to-rail performance makes this compara-
tor ideal for battery-powered applications.
Features
(Typical unless otherwise noted)
n Ultra low power consumption 0.7 µA
n Wide range of supply voltages 2V to 8V
n Input common-mode range beyond V
+
and V
−
n Open collector and push-pull output
n High output current drive: (
@
V
S
= 5V) 45 mA
n Propagation delay (
@
V
S
= 5V, 10 mV overdrive) 25 µs
n Tiny 5-Pin SOT23 package
n Latch-up resistance
>
300 mA
Applications
n Laptop computers
n Mobile phones
n Metering systems
n Hand-held electronics
n RC timers
n Alarm and monitoring circuits
n Window comparators, multivibrators

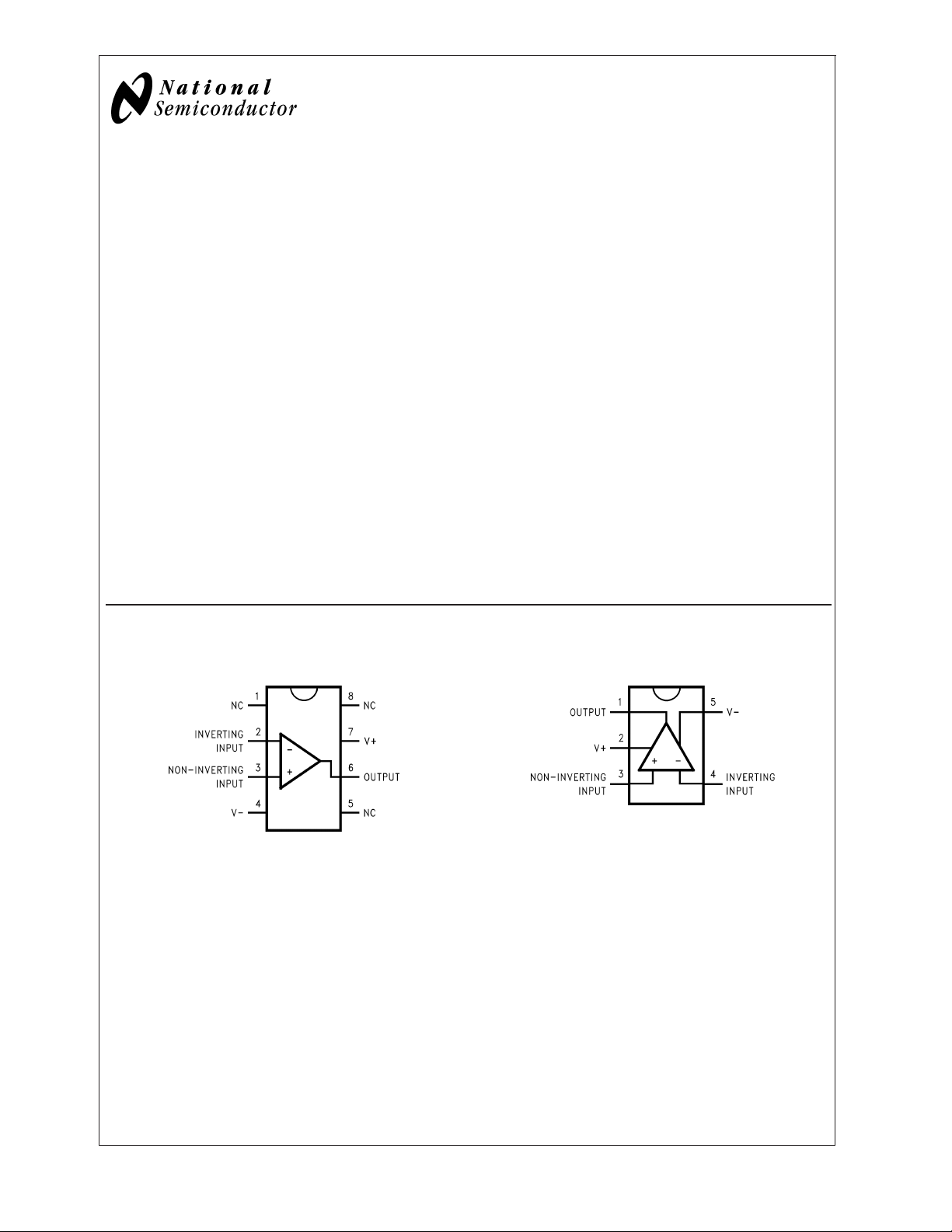

Connection Diagrams
8-Pin SOIC
01285301
Top View
5-Pin SOT23
01285302
Top View
TinyPak
™
is a trademark of National Semiconductor Corporation.
September 2006
LMC7215/LMC7225 Micro-Power, Rail-to-Rail CMOS Comparators with Push-Pull/Open-Drain
Outputs and TinyPak Package
© 2006 National Semiconductor Corporation DS012853 www.national.com
