Limit and Enclosed Switches LSX Series
Weather-Sealed Explosion-Proof Switches
Honeywell1 Sensing and Control11-800-537-6945 USA1F1-815-235-6847 International11-800-737-3360 CanadaA113

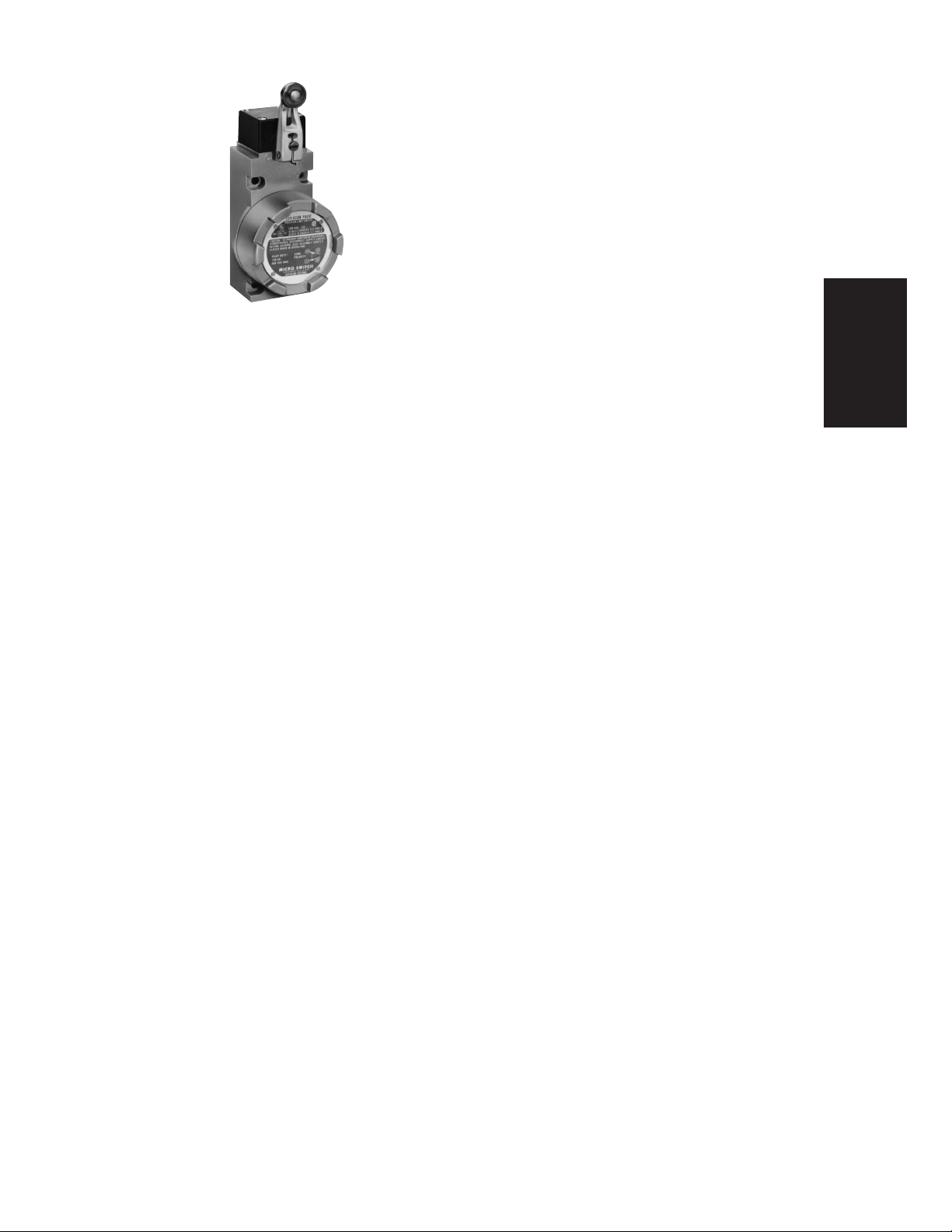

LSX switches are for use either indoors or
outdoors in hazardous atmospheres as they
are a completely sealed explosion-proof de-
vice. Mounting hole location and tracking is
same as the long established MICRO
SWITCH ML-E1 explosion-proof switch.
An optional mounting plate provides the
same tracking and mounting as the stan-
dard HDLS. The majority of HDLS operating
heads and circuitry options are available on
the LSX.
Standard HDLS levers are used, but be-
cause of explosion-proof requirements, on-
ly nylon rollers or other non-sparking materi-
al can be selected. Plunger and cat whisker
types listed in the LSX order guide are of
non-sparking material.
SEALS
Application proven HDLS head seals are
retained to seal the top of the LSX. The
circular cover on the front is easily unscrew-
ed to expose the switching elements for
wiring or replacement. A screwdriver or bar
used on the wrenching lugs extending from
the front of the cover allows easy removal or
tightening. An O-ring seal is located be-
tween the housing and cover.
The LSX withstands pressure of an internal
explosion and cools the exploding gases
below the kindling temperature of the explo-
sive atmosphere. Flame paths are provided
by the cover-housing threads and an ex-
tended plunger between the switch cavity
and head.
FEATURES
1 Sealing - applicable portions of NEMA 1,
3, 4, 6, 7, 9, and 13.
1 Tracking interchangeability with MICRO
SWITCH ML-E1 and HDLS.
1 Variety of heads and non-sparking
actuators.
1 Field adjustability matches switch to
application.
1 Momentary, maintained, random
sequence, or center neutral action.
1 10 amps continuous carry electrical
rating.
1 Choice of silver or gold contacts.
1
1
⁄2 or
3
⁄4 inch conduit opening.
1 UL Listed, file #E61730
1 CSA Certified, file #LR57327
1 Internal grounding screw.
NEMA standards: 1, 3, 4, 6, 7, 9 and 13. UL
listed and CSA certified: Class I, Div. 1,
Groups B, C and D. Class II, Div. 1, Groups
E, F and G.
Limit/ Enclosed
