LT1461
1
Rev. C
For more information www.analog.comDocument Feedback

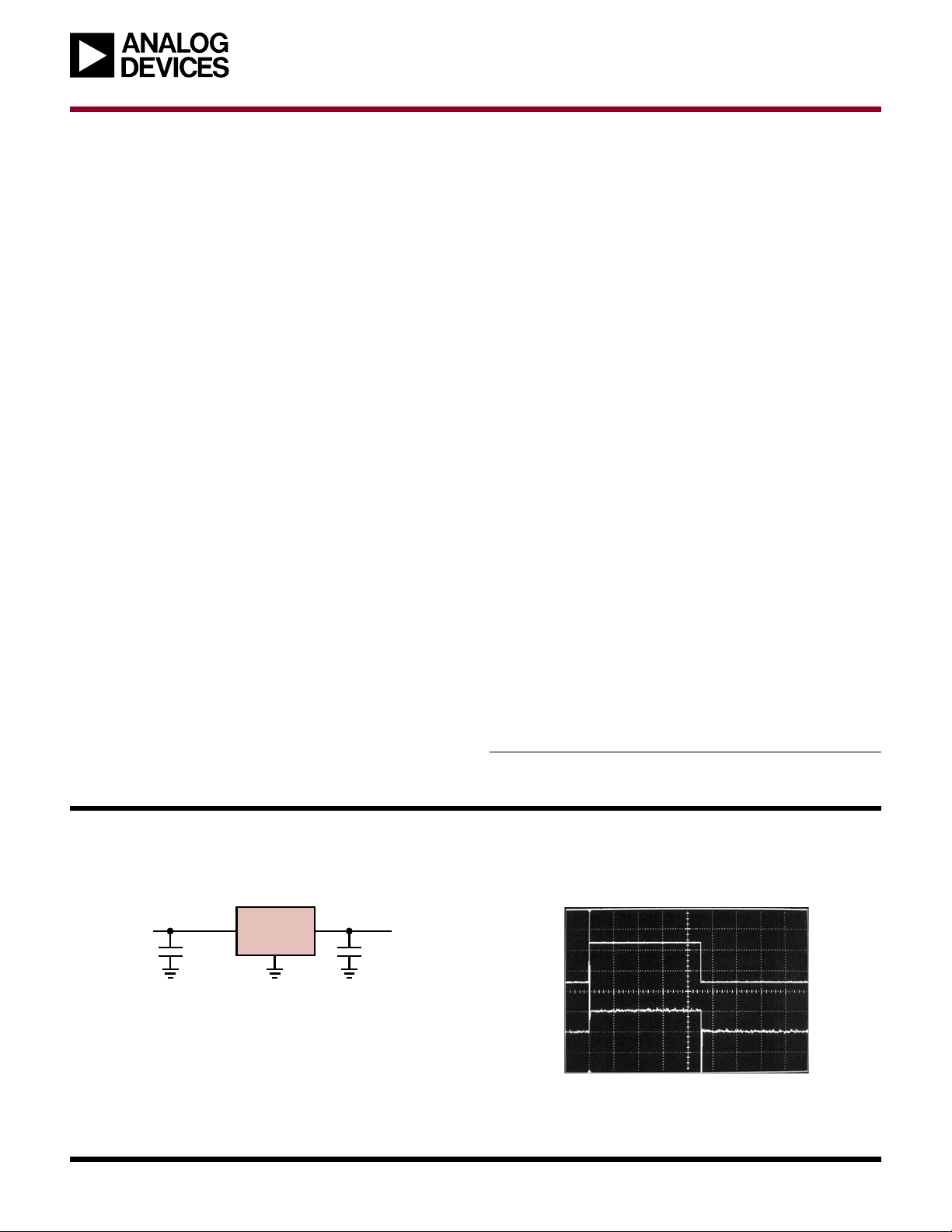

TYPICAL APPLICATION
FEATURES DESCRIPTION
Micropower Precision
Low Dropout Series
Voltage Reference Family
The LT
®
1461 is a family of low dropout micropower band-
gap references
that combine very high accuracy and low
drift with low supply current and high output drive. These
series references use advanced curvature compensation
techniques to obtain low temperature coefficient and
trimmed precision thin-film resistors to achieve high
output accuracy. The LT1461 family draws only 35µA
of supply current, making them ideal for low power and
portable applications, however their high 50mA output
drive makes them suitable for higher power requirements,
such as precision regulators.
In low power applications, a dropout voltage of less than
300mV ensures maximum battery life while maintaining
full reference performance. Line regulation is nearly im
-
measurable, while
the exceedingly good load and ther-
mal regulation
will not add significantly to system error
budgets. The shutdown feature can be used to switch full
load currents and can be used for system power down.
Thermal shutdown protects the part from overload condi
-
tions. The
LT1461 is available in 2.5V, 3V, 3.3V 4.096V
and 5V options.
APPLICATIONS
n
Trimmed to High Accuracy: 0.04% Max
n
Low Drift: 3ppm/°C Max
n
Low Supply Current: 50µA Max
n
High Output Current: 50mA Min
n
Low Dropout Voltage: 300mV Max
n
Excellent Thermal Regulation
n
Power Shutdown
n
Thermal Limiting
n
All Parts Guaranteed Functional from –40°C to 125°C
n
Voltage Options: 2.5V, 3V, 3.3V, 4.096V and 5V
n
AEC-Q100 Qualified for Automotive Applications
n
A/D and D/A Converters
n
Precision Regulators
n
Handheld Instruments
n
Power Supplies
All registered trademarks and trademarks are the property of their respective owners.
LT1461-2.5 Load Regulation, P
DISS
= 200mWBasic Connection
C
IN
1µF
V
OUT
(V
OUT
+ 0.3V) ≤ V
IN
≤ 20V
C
L
2µF
1461 TA01
LT1461
V
OUT
1461 TA02
10ms/DIV
0mA
20mA
V
OUT
LOAD REG
1mV/DIV
