________________General Description
The MAX4617/MAX4618/MAX4619 are high-speed, low-
voltage, CMOS analog ICs configured as an 8-channel
multiplexer (MAX4617), two 4-channel multiplexers
(MAX4618), and three single-pole/double-throw (SPDT)
switches (MAX4619).
These CMOS devices can operate continuously with a
+2V to +5.5V single supply. Each switch can handle
Rail-to-Rail
®
analog signals. The off-leakage current is
only 1nA at T
A
= +25°C and 10nA at T
A
= +85°C.
All digital inputs have 0.8V to 2.4V logic thresholds,
ensuring TTL/CMOS-logic compatibility when using a
single +5V supply.
________________________Applications
Battery-Operated Equipment
Audio/Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
____________________________Features
♦ Fast Switching Times
15ns t
ON
10ns t
OFF
♦ Pin Compatible with Industry-Standard
74HC4051/74HC4052/74HC4053 and
MAX4581/MAX4582/MAX4583
♦ Guaranteed On-Resistance
10Ω max (+5V Supply)
20Ω max (+3V Supply)
♦ Guaranteed 1Ω On-Resistance Match Between
Channels (single +5V supply)
♦ Guaranteed Low Off-Leakage Current:
1nA at +25°C
♦ Guaranteed Low On-Leakage Current:
1nA at +25°C
♦ +2V to +5.5V Single-Supply Operation
♦ TTL/CMOS-Logic Compatible
♦ Low Crosstalk: <-96dB
♦ High Off-Isolation: <-93dB
♦ Low Distortion: <0.017% (600Ω)
MAX4617/MAX4618/MAX4619
High-Speed, Low-Voltage, CMOS Analog
Multiplexers/Switches
________________________________________________________________ Maxim Integrated Products 1
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
V
CC
X2
X1
X0
X3
A
B
C
X4
X6
X
X7
X5
ENABLE
N.C.
GND
TOP VIEW
MAX4617
DIP/SO/TSSOP
LOGIC
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
V
CC
Y
X
X1
X0
A
B
C
Y1
Y0
Z1
Z
Z0
ENABLE
N.C.
GND
MAX4619
DIP/SO/TSSOP
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
V
CC
X2
X1
X
X0
X3
A
B
Y0
Y2
Y
Y3
Y1
ENABLE
N.C.
GND
MAX4618
DIP/SO/TSSOP
LOGIC

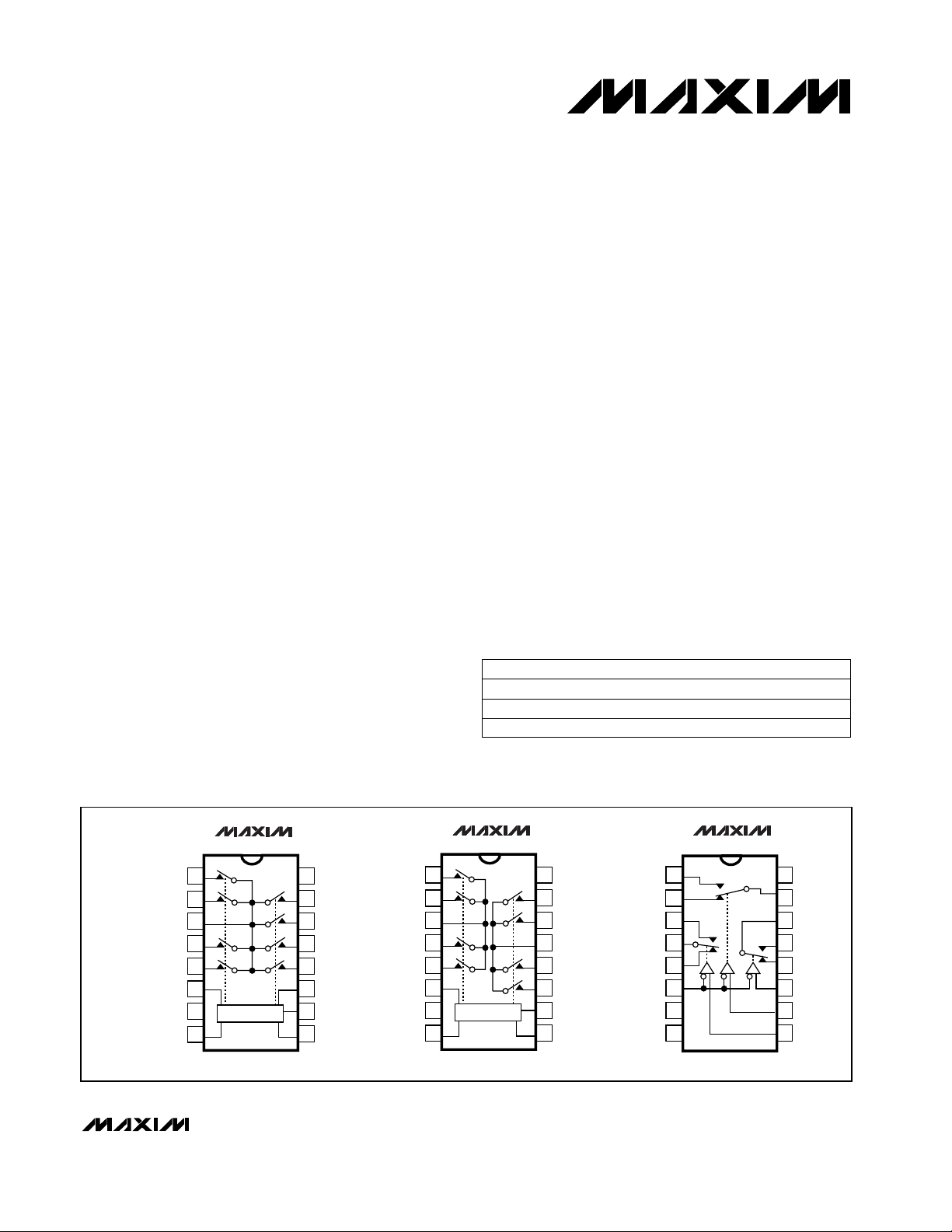

____________________________________Pin Configurations/Functional Diagrams
19-1502; Rev 2; 3/02
_______________Ordering Information
Ordering Information continued at end of data sheet.
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
16 Plastic DIP
16 Narrow SO
16 TSSOP
PIN-PACKAGETEMP. RANGE
0°C to +70°C
0°C to +70°C
0°C to +70°CMAX4617CPE
MAX4617CSE
MAX4617CUE
PART
