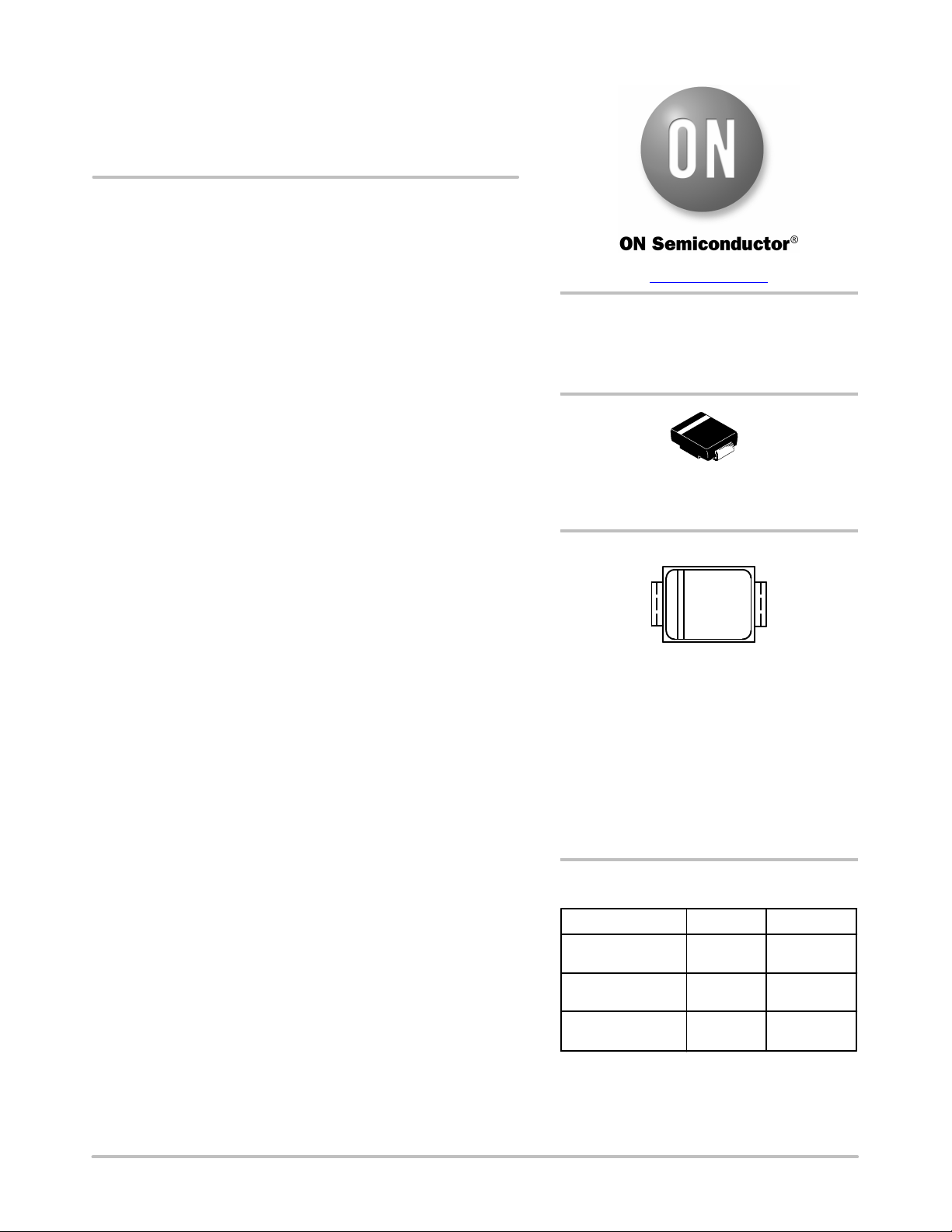

© Semiconductor Components Industries, LLC, 2012
December, 2019 − Rev. 6
1 Publication Order Number:
MBRS2040LT3/D
Surface Mount
Schottky Power Rectifier
SMB Power Surface Mount Package
MBRS2040LT3G,
NRVBS2040LT3G,
NRVBS2040LN
. . . employing the Schottky Barrier principle in a metal−to−silicon
power rectifier. Features epitaxial construction with oxide passivation
and metal overlay contact. Ideally suited for low voltage, high
frequency switching power supplies; free wheeling diodes and
polarity protection diodes.
Features
• Compact Package with J−Bend Leads Ideal for Automated Handling
• Highly Stable Oxide Passivated Junction
• Guardring for Over−Voltage Protection
• Low Forward Voltage Drop
• ESD Ratings:
♦ Human Body Model = 3B (> 16000 V)
♦ Machine Model = C (> 400 V)
• NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable*
• These are Pb−Free Devices
Mechanical Characteristics
• Case: Molded Epoxy
• Epoxy Meets UL94, VO at 1/8″
• Weight: 95 mg (approximately)
• Maximum Temperature of 260°C / 10 Seconds for Soldering
• Cathode Polarity Band
• Available in 12 mm Tape, 2500 Units per 13 inch Reel, Add “T3”
Suffix to Part Number
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Marking: BKJL
www.onsemi.com
Device
Package
Shipping
†
ORDERING INFORMATION
SCHOTTKY BARRIER
RECTIFIER
2.0 AMPERES
40 VOLTS
MARKING DIAGRAM
MBRS2040LT3G SMB
(Pb−Free)
2,500 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
NRVBS2040LT3G*
SMB
(Pb−Free)
2,500 /
Tape & Reel
(Note: Microdot may be in either location)
**The Assembly Location code (A) is front side
optional. In cases where the Assembly Location is
stamped in the package bottom (molding ejecter pin),
the front side assembly code may be blank.
SMB
CASE 403A
BKJL = Specific Device Code
A = Assembly Location**
Y = Year
WW = Work Week
G = Pb−Free Package
AYWW
BKJLG
G
NRVBS2040LNT3G*
2,500 /
Tape & Reel
SMB
(Pb−Free)
