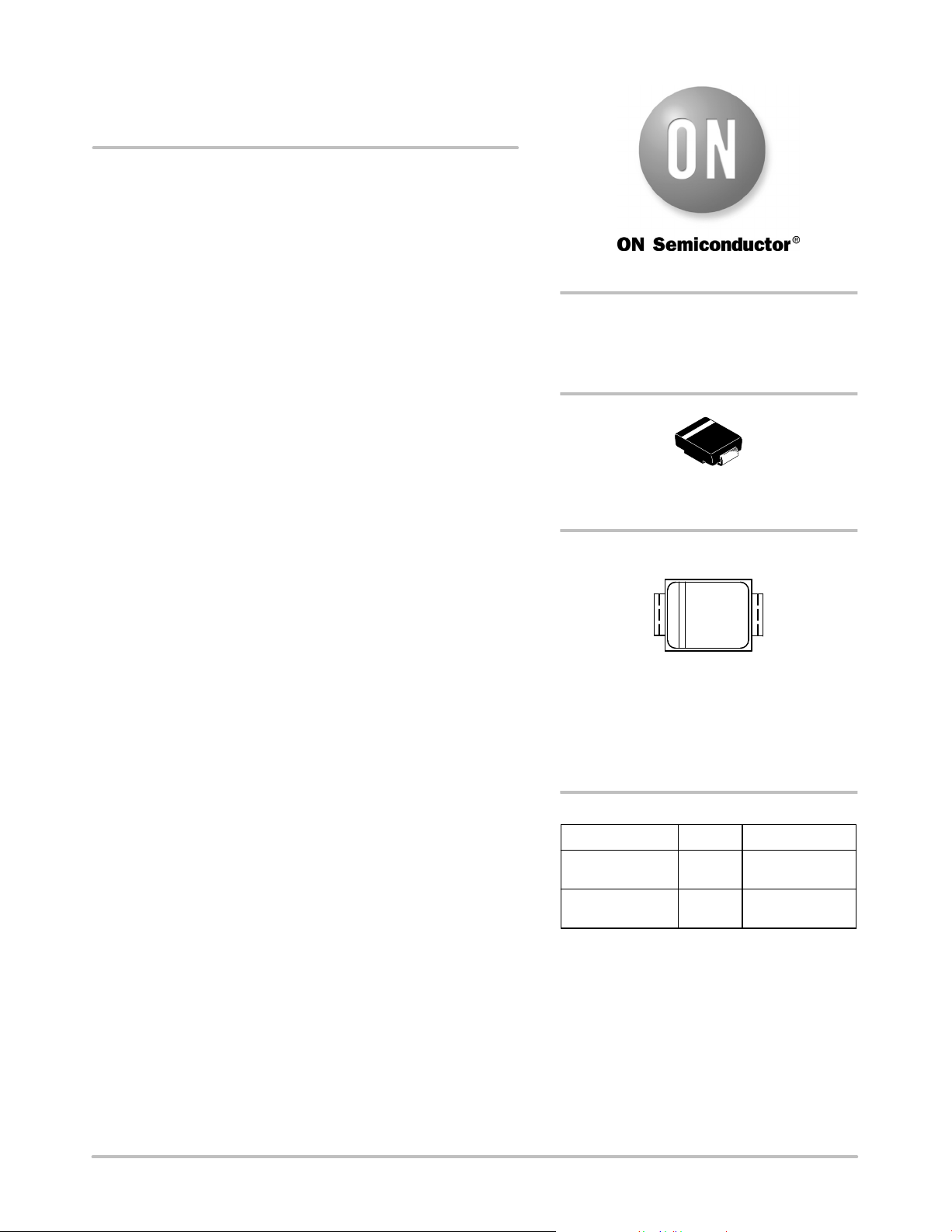

Semiconductor Components Industries, LLC, 2012
January, 2012 − Rev. 4
1 Publication Order Number:
MBRS2040LT3/D
MBRS2040LT3G,
NRVBS2040LT3G
Surface Mount
Schottky Power Rectifier
SMB Power Surface Mount Package
. . . employing the Schottky Barrier principle in a metal−to−silicon
power rectifier. Features epitaxial construction with oxide passivation
and metal overlay contact. Ideally suited for low voltage, high
frequency switching power supplies; free wheeling diodes and
polarity protection diodes.
Features
Compact Package with J−Bend Leads Ideal for Automated Handling
Highly Stable Oxide Passivated Junction
Guardring for Over−Voltage Protection
Low Forward Voltage Drop
ESD Ratings:
Human Body Model = 3B (> 16000 V)
Machine Model = C (> 400 V)
AEC−Q101 Qualified and PPAP Capable
NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements
All Packages are Pb−Free*
Mechanical Characteristics
Case: Molded Epoxy
Epoxy Meets UL94, VO at 1/8
Weight: 95 mg (approximately)
Maximum Temperature of 260C / 10 Seconds for Soldering
Cathode Polarity Band
Available in 12 mm Tape, 2500 Units per 13 inch Reel, Add “T3”
Suffix to Part Number
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Marking: BKJL
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com
Device Package Shipping
†
ORDERING INFORMATION
SMB
CASE 403A
SCHOTTKY BARRIER
RECTIFIER
2.0 AMPERES
40 VOLTS
MARKING DIAGRAM
MBRS2040LT3G SMB
(Pb−Free)
2,500 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
NRVBS2040LT3G SMB
(Pb−Free)
2,500 /
Tape & Reel
BKJL = Specific Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
AYWW
BKJLG
G
(Note: Microdot may be in either location)
