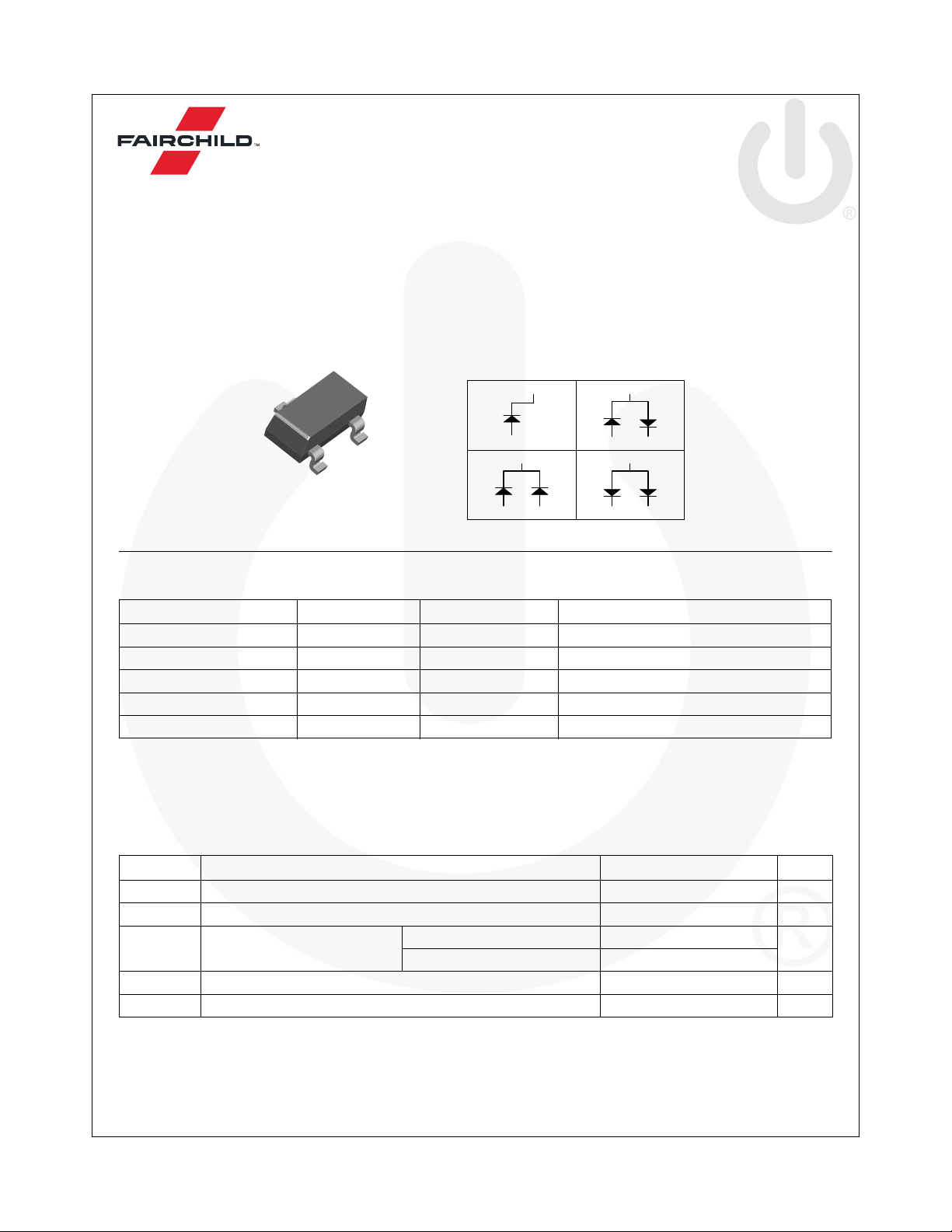

MMBD1501A / MMBD1503A / MMBD1504A / MMBD1505A — Small Signal Diodes
© 1993 Fairchild Semiconductor Corporation www.fairchildsemi.com
MMBD1501A / MMBD1503A / MMBD1504A / MMBD1505A Rev. 2.6
April 2016
MMBD1501A / MMBD1503A / MMBD1504A /
MMBD1505A
Small Signal Diodes
Ordering Information
Absolute Maximum Ratings
(1), (2)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Notes:
1. These ratings are based on a maximum junction temperature of 150C.
2. These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed or
low-duty-cycle operations.
Part Number Top Mark Package Packing Method
MMBD1501A A11 SOT-23 3L Tape and Reel, 7 inch Reel, 3k pieces
MMBD1503A A13 SOT-23 3L Tape and Reel, 7 inch Reel, 3k pieces
MMBD1503A_D87Z A13 SOT-23 3L Tape and Reel, 13 inch Reel, 10k pieces
MMBD1504A A14 SOT-23 3L Tape and Reel, 7 inch Reel, 3k pieces
MMBD1505A A15 SOT-23 3L Tape and Reel, 7 inch Reel, 3k pieces
Symbol Parameter Value Unit
V
RRM
Maximum Repetitive Reverse Voltage 200 V
I
F(AV)
Average Rectified Forward Current 200 mA
I
FSM
Non-Repetitive Peak Forward
Surge Current
Pulse Width = 1.0 second 1.0
A
Pulse Width = 1.0 microsecond 2.0
T
STG
Storage Temperature Range -55 to +150 C
T
J
Operating Junction Temperature 150 C
3
1
2
SOT-23
Connection Diagrams
1501A
1503A
1504A 1505A
11
3
21
2
2
3
3
3
1
2NC
