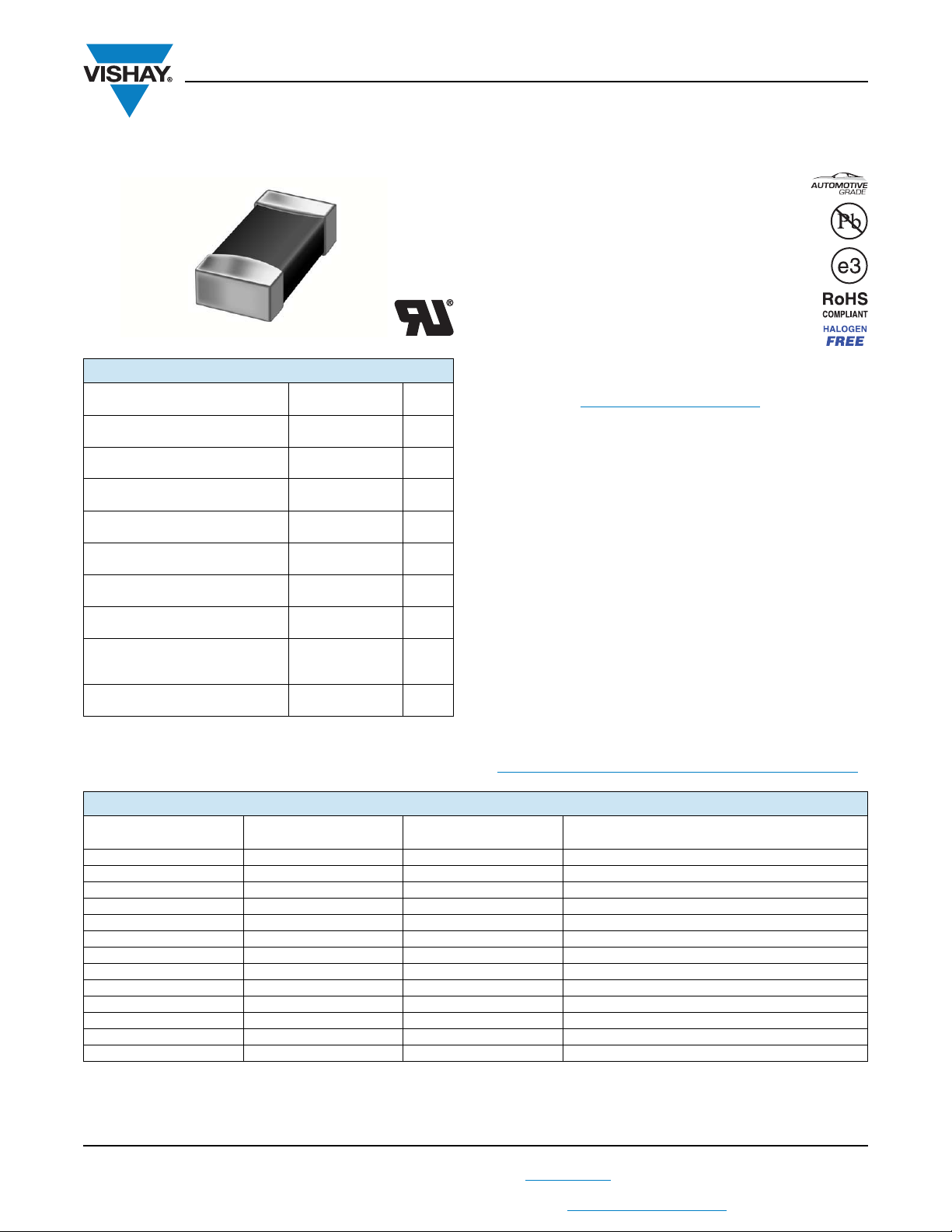

NTCS0603E3.....T
www.vishay.com
Vishay BCcomponents
Revision: 25-Feb-13
1
Document Number: 29056
For technical questions, contact: nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SMD 0603, Glass Protected NTC Thermistors
FEATURES
• TCR ranging from - 7 %/K at - 40 °C to - 2 %/K
at 150 °C
• Tolerance on R
25
down to 1 %, and on B
25/85
down to 1 %
• Suitable for wave or reflow soldering
• NiSn terminations
• Fully glass coated and protected
• cUL recognized for safety applications
(file E148885)
• AEC-Q200 qualified
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
• Temperature sensing, protection and compensation in
automotive, industrial, telecom and consumer
applications. Examples are:
- Battery chargers
- Power suppliers
- Office equipment
- LCD compensation
- In-car entertainment
DESCRIPTION
Size 0603 chip thermistors with a negative temperature
coefficient. The device has no marking.
PACKAGING
Available in 8 mm punched paper tape on reel package of
4000 units.
DESIGN-IN SUPPORT
For complete Curve Computation, visit:
www.vishay.com/resistors-non-linear/curve-computation-list/
Notes
(1)
Replace * in SAP by J for ± 5 %, H for ± 3 %, G for ± 2 %, F for ± 1 % tolerance on R
25
(2)
Type NTCS0603E3202*LT only available in 5 % tolerance on R
25
(3)
Type NTCS0603E3153*MT is not UL recognized
QUICK REFERENCE DATA
PARAMETER VALUE UNIT
Resistance value at 25 °C 2.0K to 100K
Tolerance on R
25
-value ± 1; ± 2; ± 3; ± 5 %
B
25/85
-value 3420 to 4100 K
Tolerance on B
25/85
-value ± 1 %
Maximum dissipation at 25 °C 125 mW
Thermal time constant 8s
Dissipation factor D 3.0 mW/K
Operating temperature range
at zero power
- 40 to + 150 °C
Weight 0.006 g
ELECTRICAL DATA AND ORDERING INFORMATION
R
25
-VALUE
(k)
B
25/85
-VALUE
(K)
TOLERANCE ON B
25/85
(%)
SAP MATERIAL AND ORDERING NUMBER
(1)
2.0 3420 ± 1 NTCS0603E3202*LT
(2)
2.2 3520 ± 1 NTCS0603E3222*MT
2.7 3600 ± 1 NTCS0603E3272*MT
4.7 3830 ± 1 NTCS0603E3472*HT
10 3435 ± 1 NTCS0603E3103*LT
10 3610 ± 1 NTCS0603E3103*MT
10 3960 ± 1 NTCS0603E3103*HT
15 3600 ± 1 NTCS0603E3153*MT
(3)
22 3730 ± 1 NTCS0603E3223*MT
33 3860 ± 1 NTCS0603E3333*HT
47 3960 ± 1 NTCS0603E3473*HT
68 3985 ± 1 NTCS0603E3683*HT
100 4100 ± 1 NTCS0603E3104*XT
