© 2001 PLX Technology, Inc. All rights reserved. PLX and PLXMon are trademarks of PLX Technology, Inc. All other product names that appear in this material are for identification purposes only and are acknowledged to be
trademarks or registered trademarks of their respective companies. Information supplied by PLX is believed to be accurate and reliable, but PLX Technology, Inc. assumes no responsibility for any errors that may appear in this
material. PLX Technology reserves the right, without notice, to make changes in product design or specification.
PLX Technology, Inc.
870 Maude Ave.
Sunnyvale, CA 94085 USA
Tel: 1-800-759-3735
Tel: 1-408-774-9060
Fax: 1-408-774-2169
Email: info@plxtech.com
Web Site: www.plxtech.com

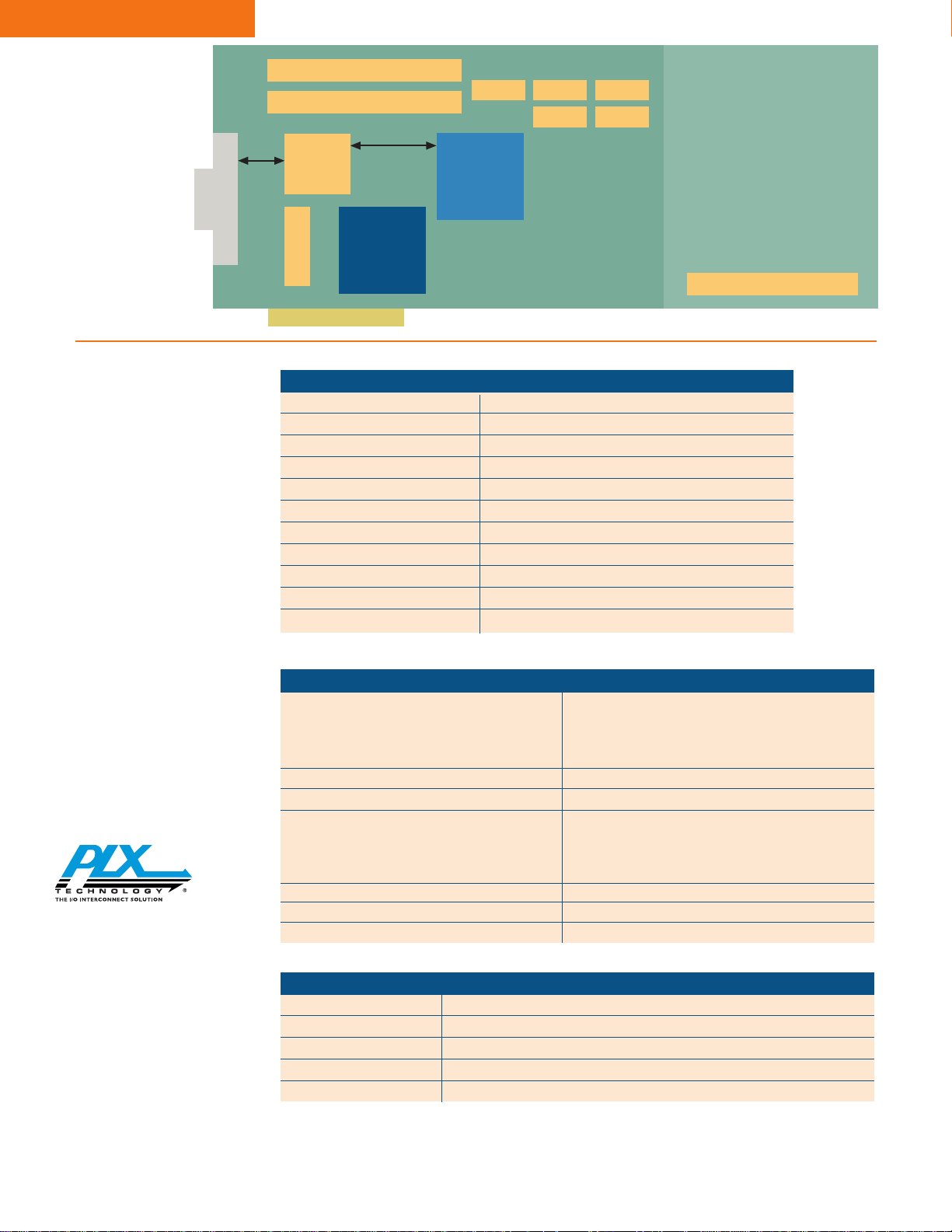

Serial EEPROM
RS-232
Transceiver
MPC860
PowerQUICC
Serial EEPROM
PCI 9054
I/O Accelerator
(PQFP)
FLASH SDRAM SDRAM
SDRAM
SDRAM
PROTOTYPE
AREA
Local Bus Control Connector
Local Address/Data Bus Test Connector
MPC860 Peripheral Port
9054/860-RDK-PB-PI-4.0 7/01 750
PCI 9054RDK-860
Block Diagram
PLX SDK-PRO
Features Benefits
PCI 9054 software API object code libraries for the Simplifies the programming of complex hardware
Motorola MPC860 PowerQUICC control with simple, powerful API calls.
Enables easy creation of device drivers for RTOS or custom
environments
Provides for easy porting to future PLX PCI devices
Board Support Package (BSP) with “C” source code Allows easy porting to customer design
Sample Windows drivers with “C” source code Allows effortless creation of PLX device drivers
PLXMon with User Manual Enables easy monitoring, debugging, and configuring
of PLX’s PCI device and other PCI/local bus devices
Supports downloading of sample boot FLASH
code on to RDK or customer design and allows debugging
via serial port
VxWorks ans pSOS BSP with source code Allows easy developing of VxWorks or pSOS RTOS applications
Programmer Reference Manual Enables easy use of the PLX powerful API calls
Compatibility Compatible with tools for Motorola MPC860
Please visit the PLX Web site at http://www.plxtech.com or contact PLX sales at 408-774-9060 for pricing and samples.
Product Ordering Information
Part Number Description
PCI 9054-AB50PI PCI to Local Bus Master I/O Accelerator Chip (PQFP)
PCI 9054-AB50BI PCI to Local Bus Master I/O Accelerator Chip (PBGA)
PCI 9054RDK-860 PCI 9054 Reference Design Kit with Motorola MPC860 PowerQUICC CPU
CompactPCI 9054RDK-860 CompactPCI 9054 RDK with Motorola MPC860MH PowerQUICC CPU
SDK-PRO PCI Software Development Kit for PLX PCI chips and major embedded processors
Function Description/Value
PCI Bus Interface PCI 9054 I/O Accelerator
Processor MPC860 PowerQUICC
Processor Speed 50MHz Max
Local Bus Speed 50MHz Max
PCI Bus Speed 33MHz Max
SDRAM 32Mbytes (8Mx32)
Boot ROM Flash 512 Kbytes (512Kx8)
SDRAM Memory Controller MPC860 Memory Controller
RS-232 Serial Ports MPC860 SCC1
MPC860 Peripheral Port PLX Option Module 2 (POM2) connector
Documentation & Schematics Hardware Reference Manual, OrCAD schematics, logic files
PCI 9054RDK-860
